6GK 1561-1AA00 PCI interface module

6GK 1561-1AA00 PCI interface module

  • 6GK 1561-1AA00  PCI interface module
  • 6GK 1561-1AA00  PCI interface module
6GK 1561-1AA00  PCI interface module
Product Details:
Place of Origin: DE
Brand Name: SIEMENS
Model Number: 6GK 1561-1AA00
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $99
Packaging Details: New sealed
Delivery Time: In stock/1-3days
Payment Terms: T/T
Supply Ability: 5000
Contact Now
Detailed Product Description
Rated Power: 1.5 KW Cooling: Internal Air Cooling
Brand: SIEMENS Rated: IP20 Protection
Warranty: 1 Year

6GK 1561-1AA00 Module

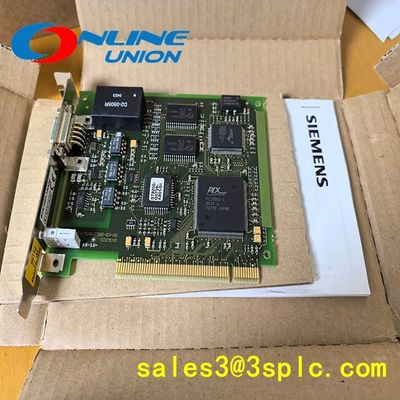

6GK1561-1AA00 (Siemens CP5611 Communication Card) is a PCI interface module used for industrial communication in the Siemens SIMATIC S7 series. It supports the PROFIBUS/MPI/PPI protocol and is suitable for connecting S7-300/400 PLC and PC. Its core features include: using a 9-pin Sub-D socket to connect to PROFIBUS, PCI 2.1 slot to connect to PC, transmission speed from 9.6Kbps to 12Mbps, supporting RS485 port ± 15KV ESD and lightning protection; Power supply+5VDC, operating temperature 0~70 ℃, relative humidity<90%, compatible with STEP 7 V5.2 and above, SOFTNET-S7, ProTool and other software. The module has a size of 102 × 130mm, a compact design that is easy to integrate, and has the function of recording fault events. It is widely used in fields such as mechanical manufacturing, process control, and power monitoring, achieving efficient communication between PC and PLC.


Technical specifcations for 6GK 1561-1AA00


Communication interface:
Supports PROFIBUS, MPI, PPI protocols, and connects S7-300/400 PLC through a 9-pin Sub-D socket.
The PC side adopts PCI 2.1 standard slots and is compatible with mainstream programming devices.
Transmission performance:
Transmission speed range: 9.6Kbps to 12Mbps, suitable for different network requirements.
The RS485 port integrates lightning surge protection (± 15KV ESD protection) to ensure data transmission stability.
Compatibility and software support:
Support development software such as STEP 7 V5.2 and above, SOFTNET-S7, ProTool, etc.
Compatible with Windows operating system, suitable for programming, monitoring, and fault diagnosis.
Physical characteristics:
Size: 102mm × 130mm, compact design for easy integration.
Power supply:+5VDC, low power consumption, suitable for industrial environments.
Working temperature: 0~70 ℃, relative humidity<90%, suitable for harsh conditions.
Application scenarios:
The communication connection between PC and PLC in industrial automation, such as program download and data monitoring.
Suitable for building PROFIBUS networks and achieving communication in distributed control systems.
Technical parameters:
Parameter specifications
Interface type: PROFIBUS/MPI/PPI (9-pin Sub-D)+PCI slot
Transmission rate: 9.6Kbps~12Mbps
Protection level RS485 port ± 15KV ESD protection
Supply voltage+5VDC
Size 102 × 130mm
Working temperature range: 0 ℃~70 ℃
Compatible software STEP 7 V5.2+, SOFTNET-S7, ProTool, etc
