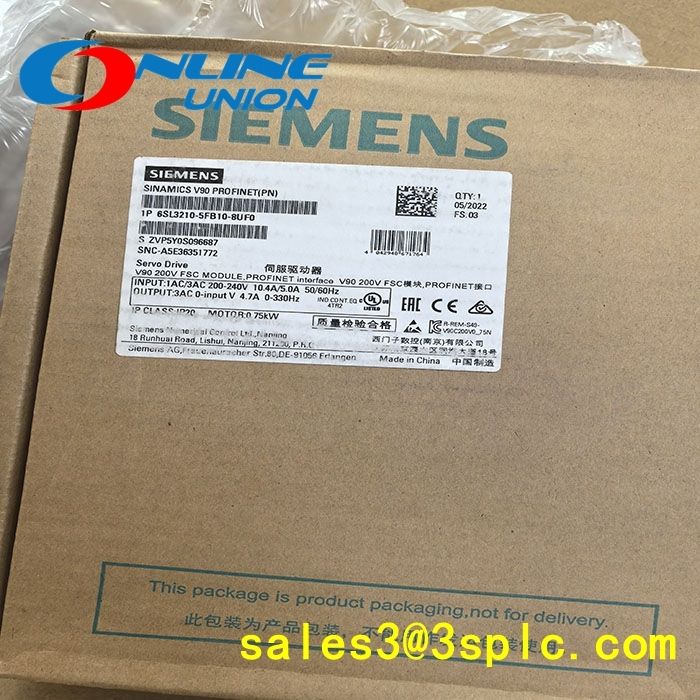

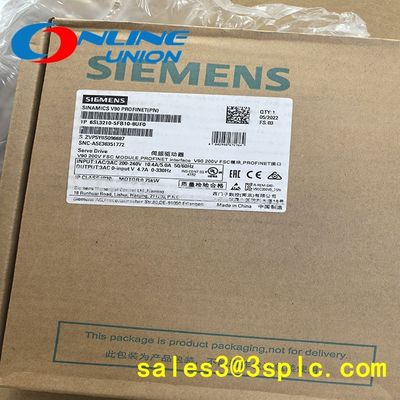

6SL3210-5FB10-8UF0 Module
6SL3210-5FB10-8UF0 is a frequency converter with PROFINET interface in Siemens SINAMICS V90 series, designed for three-phase AC motor speed regulation, suitable for multiple industrial scenarios such as manufacturing, construction, water treatment, etc. Its input voltage range is 200-240V (1-phase/three-phase AC, allowable range -15%/+10%), output voltage is 0-input voltage, output frequency is 0-330Hz, suitable for motor power of 0.75kW, rated output current is 4.7A. The frequency converter supports multiple modes such as pulse position control, speed control, and torque control, and integrates PROFINET interface, which can communicate with the upper controller through PROFIdrive protocol. Its physical dimensions are 80x170x195mm (width x height x depth), with a protection level of IP20. It has multiple protection functions such as overcurrent, overvoltage, undervoltage, and overheating, and meets the IE2 energy efficiency standard, with significant energy-saving effects.
Technical specifcations for 6SL3210-5FB10-8UF0
Power supply parameters
Input voltage: 200-240V (single-phase/three-phase AC, allowable range -15%/+10%)
Input frequency: 45-66Hz
Rated input current: single-phase 10.4A, three-phase 5.0A
Power capacity: single-phase 2.0kVA, three-phase 1.9kVA
Output parameters
Output voltage: 0-Input voltage (maximum 4.7A)
Output frequency: 0-330Hz
Suitable motor power: 0.75kW (constant torque)
Overload capacity: 150% rated current for 60 seconds
physical property
Dimensions: 80mm (width) x 170mm (height) x 195mm (depth)
Weight: 1.95kg (FSB size)
Protection level: IP20
Cooling method: self cooling
Control and Communication
Control modes: V/f control, pulse position control (PTI), speed control, torque control
Communication interface: PROFINET (supports PROFIdrive protocol) Modbus RTU,USS
Control word definition: STW1.10 needs to be set to 1 to allow PLC control, support JOG function and return to reference point operation
Environment and Safety
Working temperature: 0-45 ℃ (without power derating), 45-55 ℃ (with power derating)
Relative humidity:<90% (no condensation)
Altitude: ≤ 1000m (without power derating)
Protection functions: Short circuit protection, overcurrent protection, overvoltage protection, motor overheating protection (calculated by I ² t)
Certification and Standards
Complies with IEC 60034-14 vibration level 2M3
Impact resistance: peak acceleration of 5g (continuous for 30ms)
Electromagnetic compatibility: meets industrial environmental standards
other
Efficiency level: IE2
Installation method: On site installation (supporting DIN rails)
Supporting motor: SIMOTICS S-1FL6 series (with incremental encoder or absolute value encoder)
This driver is suitable for precise speed control of equipment such as pumps, fans, conveyors, and machine tools. It supports seamless integration with S7-1200/1500 PLC through PROFINET and is a core component for achieving efficient motor control in industrial automation.
