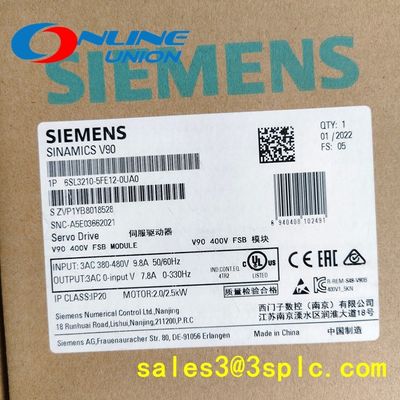

6SL3210-5FE12-0UA0 Module
6SL3210-5FE12-0UA0 is a three-phase servo drive in the Siemens SINAMICS V90 series, designed specifically for industrial variable speed drives, suitable for scenarios requiring high dynamic response such as machine tools, printing, textiles, packaging, and automated production lines. Its input voltage range is three-phase 380-480V AC (± 10%), frequency is 45-66Hz, rated input current is 9.8A, output current is 7.8A, suitable for motors with rated power of 2.0kW and peak power of 2.5kW, overload capacity reaches 150% and can last for 60 seconds. The physical dimensions of this drive are 100mm (width) × 180mm (height) × 220mm (depth), with a protection level of IP20 and an environmental temperature adaptability range of 0-45 ℃. It supports multiple modes such as V/f control, pulse position control (PTI), speed control, torque control, and integrates multiple safety functions such as short circuit protection, overcurrent protection, overvoltage protection, and motor overheating protection. In addition, it also supports multiple communication protocols such as PROFINET, Modbus RTU, USS, etc., which can be easily connected to PLCs or other devices. It is equipped with SINAMICS V-ASSISTANT debugging tool for parameter setting, system optimization, and monitoring.
Technical specifcations for 6SL3210-5FE12-0UA0
Power supply parameters
Input voltage: 380-480V (three-phase AC, allowable range -15%/+10%)
Input frequency: 45-66Hz
Input current: 9.8A
Output parameters
Output voltage: 0-Input voltage (maximum 7.8A)
Output frequency: 0-330Hz
Suitable motor power: 2.0kW (rated power)/2.5kW (peak power)
Overload capacity: 150% rated current for 60 seconds
physical property
Dimensions: 100mm (width) x 180mm (height) x 220mm (depth)
Weight: Not explicitly mentioned, but the weight of FSB size products in the same series is approximately 1.95kg (refer to 6SL3210-5FB10-8UF0 model)
Protection level: IP20
Cooling method: self cooling
Control and Communication
Control modes: V/f control, pulse position control (PTI), speed control, torque control
Communication interface: Supports PROFINET (some models) Modbus RTU,USS
Encoder interface: Integrated encoder pulse output, supporting incremental or absolute value encoders
Environment and Safety
Working temperature: 0-45 ℃ (without power derating), 45-55 ℃ (with power derating)
Relative humidity:<90% (no condensation)
Altitude: ≤ 1000m (without power derating)
Protection functions: short circuit protection, overcurrent protection, overvoltage protection, motor overheating protection (I ² t calculation), safe torque disconnection (STO)
Certification and Standards
Complies with IEC 60034-14 vibration level 2M3
Impact resistance: peak acceleration of 5g (continuous for 30ms)
Electromagnetic compatibility: meets industrial environmental standards
other
Efficiency level: IE2
Installation method: On site installation (supporting DIN rails)
Supporting motor: SIMOTICS S-1FL6 series (with incremental encoder or absolute value encoder)
Debugging tool: SINAMICS V-ASSISTANT software, supporting parameter settings, system optimization, trial operation, and monitoring
More Products In Stock:
| 66FC5357-0BB22-0AE0 |
6AV2124-0QC02-0AX1 |
1FL6034-2AF21-1AA1 |
3RF2171-1AA45-1KP0 |
| 3RT1015-1WB41 |
3RT1017-1BB42 |
3RT2326-2BB40 |
3RV1011-0HA10 |
| 6AU1410-0AB00-0AA0 |
6AV6 642-0BA01-1AX1 |
6AV6 643-OCD01-1AX2 |
6AV2123-2GB03-0AX0 |
Our Services:
1,All our products are new and orginal, and of good quality
2,Our prices are very competitive.
3, We have a large quantity in stock, so we could help the customers to get the components which are dificult to get.
4,All inquiries will be valued and will reply in 24.
Packing & Delivery:
1,100% brand New and Original Factory Seal!
2,Warranty:1 year

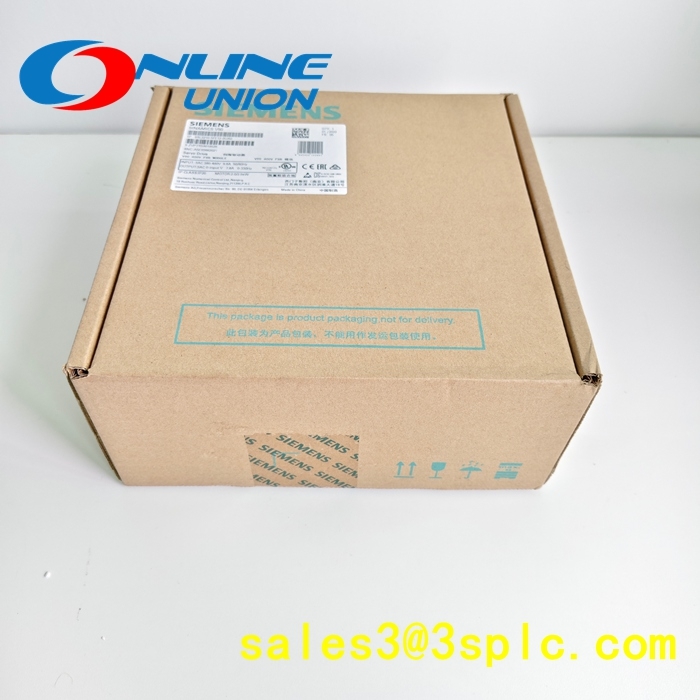

3,Package: Original packing with cartons.
