Name: Schneider BCH servo motor with 9.55 N*m torque 2000 rpm and 220V three-phase AC for industrial automation
Brand: Xiamen Online Union Technology Co., Ltd
SKU: BCH2MM2023CA6C
Availability: InStock

Casa > produtos > Módulo de SCHNEIDER >

Schneider BCH servo motor with 9.55 N*m torque 2000 rpm and 220V three-phase AC for industrial automation

9.55 N*m torque Schneider servo motor

2000 rpm BCH servo motor

220V three-phase AC Lexium 28 servo motor

Lugar de origem:

França

Marca:

Schneider

Número do modelo:

BCH2MM2023CA6C

Contacte-nos

Peça umas citações

Schneider BCH servo motor with 9.55 N*m torque 2000 rpm and 220V three-phase AC for industrial automation

Detalhes do produto

Destacar:

9.55 N*m torque Schneider servo motor

2000 rpm BCH servo motor

220V three-phase AC Lexium 28 servo motor

Termos de pagamento e envio

Produtos relacionados

Contato agora

Descrição do produto

BCH2MM2023CA6C Schneider servo motor BCH

Schneider BCH2MM2023CA6C servo motor BCH:
Lexium 28 series; 130mm flange; 2000W power; 13.5kg.cm² rotor inertia; includes oil seal and keyway; straight shaft connection.

Technical Specifications

Power and Torque

Rated Power: 2000W (2kW) for medium-load applications
Rated Torque: 9.55 N·m (continuous), 28.65 N·m peak torque
Rated Speed: 2000 rpm (3000 rpm max mechanical speed)

Electrical Characteristics

Rated Voltage: 220V three-phase AC
Rated Current: 11.25A (continuous), 32.85A max (short-term)
Rotor Inertia: 13.5 kg·cm² low-inertia design

Mechanical Structure

Shaft: 22mm diameter with 8mm keyway
Flange: 130mm Asian standard
Protection: IP50 standard (IP65 optional)
Cooling: Natural ventilation

Encoder and Feedback

20-bit single-turn absolute encoder
High-resolution position and speed feedback

Packing & Delivery

100% brand new with original factory seal
1-year warranty included

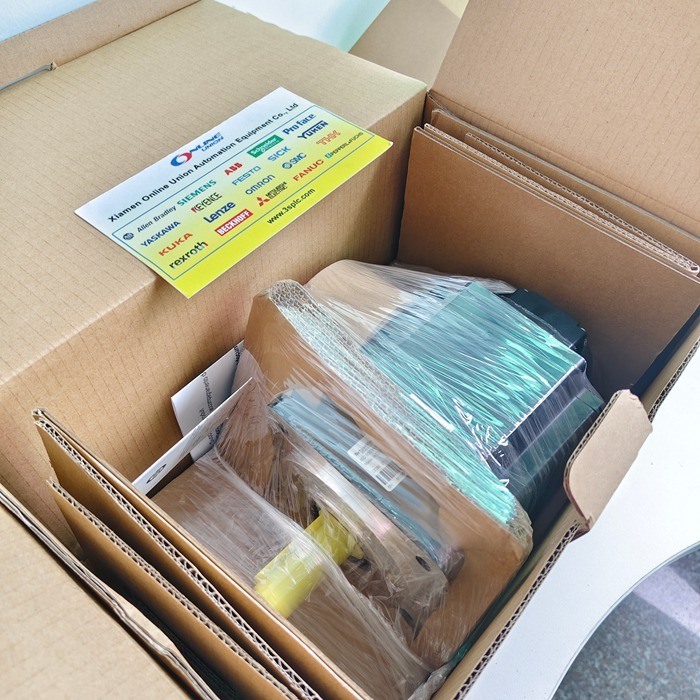

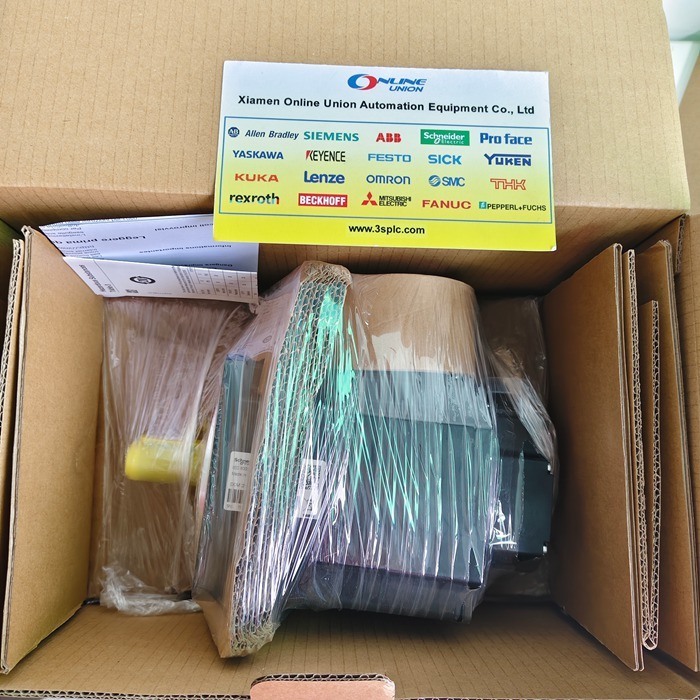

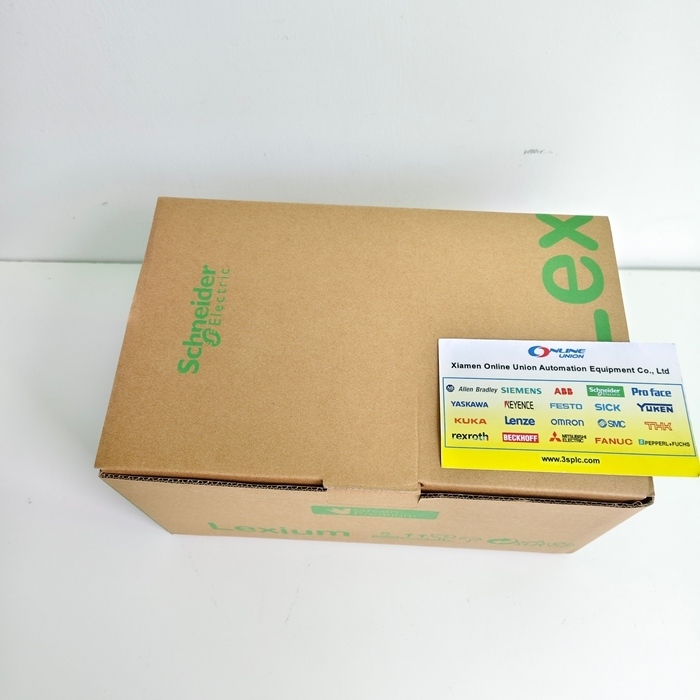

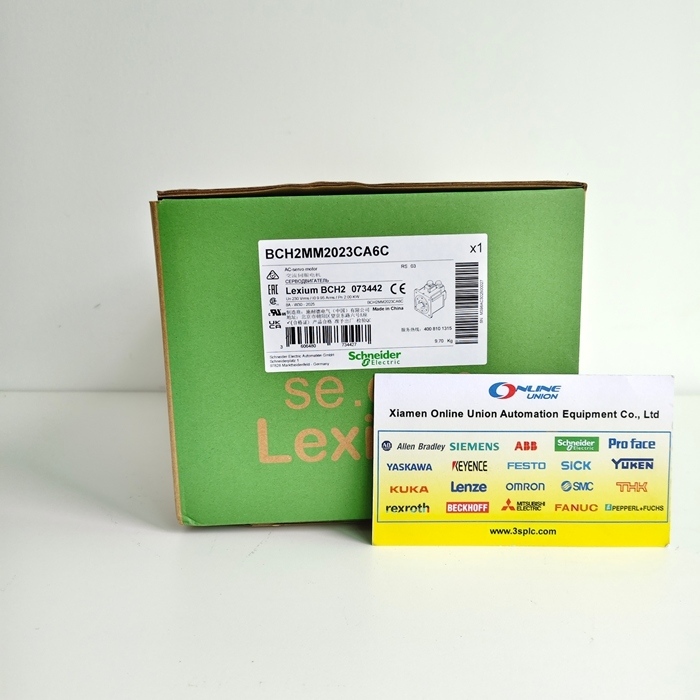

Original packaging with protective cartons
Shipped within 3-7 days after payment
All products tested before shipment
