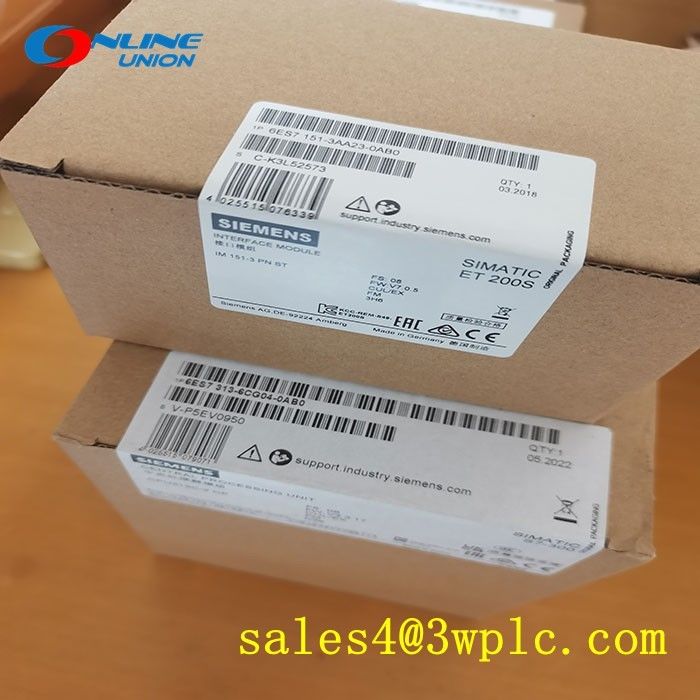

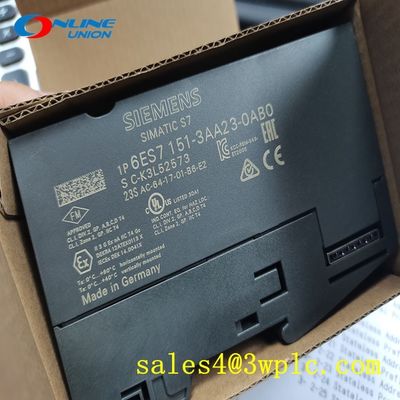

6ES7151-3AA23-0AB0 SIEMENS interface module IM 151-3 PN ST

SIEMENS 6ES7151-3AA23-0AB0  interface module IM 151-3 PN ST:

SIMATIC DP, interface module IM 151-3 PN ST for ET 200S transfer rate 100 Mbps max. 63 power, electronic or motor starter modules up to 2 m width can be connected; 2x bus connections via RJ45 incl. termination module

The Siemens 6ES7151-3AA23-0AB0 is a high-performance PROFINET interface module (IM151-3 PN) designed for the SIMATIC S7-1500 series PLC and ET200SP distributed I/O systems. This module serves as a crucial communication interface, enabling seamless data exchange between controllers and field devices in industrial automation environments.

Key Features and Specifications:

Model: 6ES7151-3AA23-0AB0

Series: SIMATIC ET200SP Distributed I/O System

Function: PROFINET IO interface module for connecting I/O stations to the PROFINET network

Communication Protocols:

Supports PROFINET IRT (Isochronous Real-Time) for high-precision, deterministic communication.

Compatible with Modbus-RTU, USS, and other industrial protocols.

Network Integration:

Features an integrated 2-port switch with LLDP (Link Layer Discovery Protocol) and port diagnostics for easy network management.

Supports ring topology for redundant network configurations, enhancing system reliability.

Performance:

Bit instruction processing time: As low as 0.15 μs, ensuring rapid response to process signals.

Program memory: 13 KB for efficient handling of automation tasks.

I/O Capacity:

Default configuration supports 16 I/O points, expandable up to 63 modules (with backplane bus length ≤ 2 m).

Supports byte-wise module grouping for optimized data handling.

Power Supply:

Operates on 24 V DC, with ungrounded configuration possible via RC combination.

Interrupt Capabilities:

Supports diagnostic interrupts, process interrupts, and module insertion/removal interrupts for real-time system monitoring.

Mechanical Design:

Compact dimensions (approx. 8.8 cm x 10.8 cm x 5.7 cm) and lightweight (approx. 200 g) for space-saving installation.

DIN rail or screw mounting options with removable terminals for easy maintenance.

Diagnostics and Maintenance:

LED indicators for quick status monitoring.

Firmware updates possible via SIMATIC MMC card or PROFINET.

Data backup of device name and configuration via MMC card.

Environmental Specifications:

Operating temperature: -25°C to +60°C, suitable for harsh industrial environments.

Protection class: IP20 (for installation in control cabinets).

Certifications: Complies with CE, UL, cUL, GOST-R, and other industrial standards.
