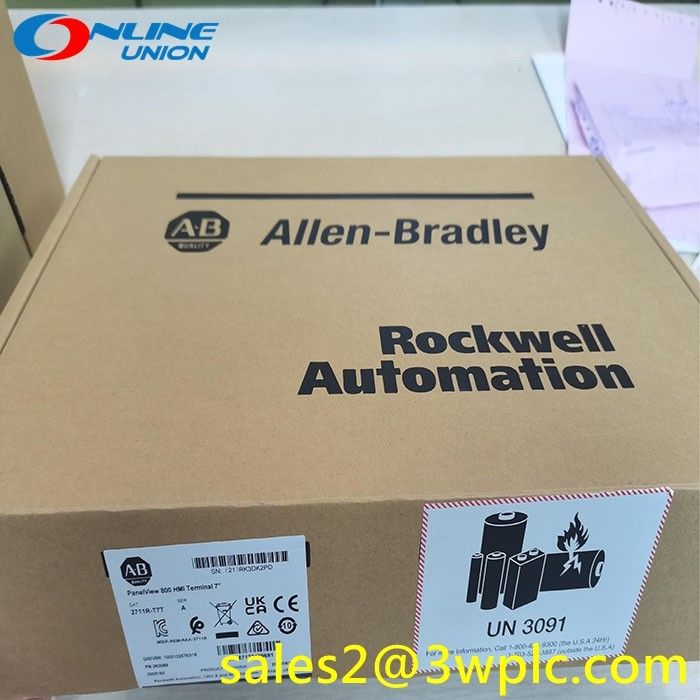

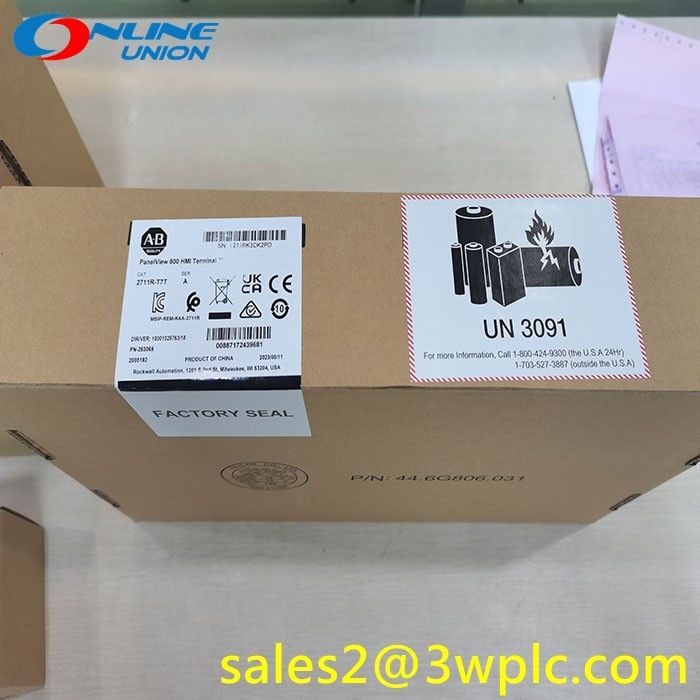

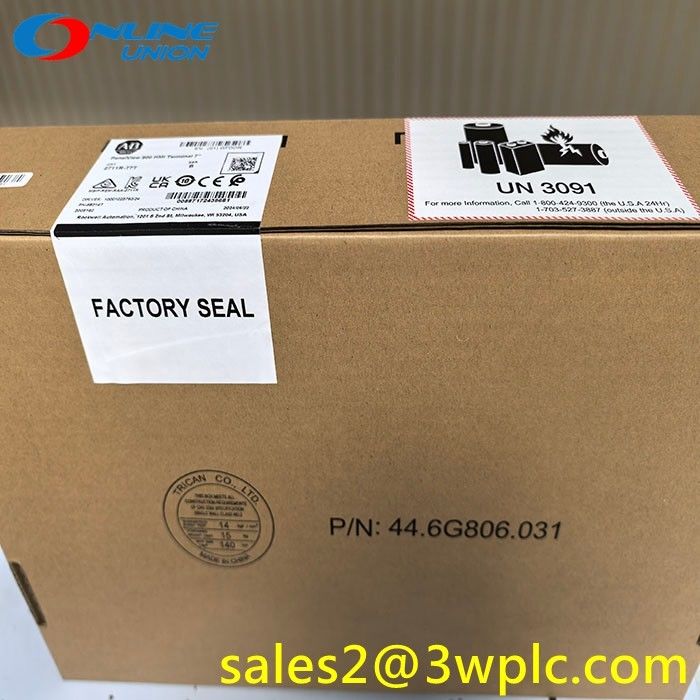

2711R-T7T Allen Bradley PANELVIEW 800 7-INCH HMI TERMINAL

The 2711R-T7T is a graphic operator terminal from Allen-Bradley. It is part of the visualization hardware PanelView 800 that is especially compatible with Allen-Bradley MicroLogix, CompactLogix, SLC 500, PLC5 and Micro 800 controllers. This operator terminal supports a variety of communication protocols such as Serial, DF1, DH485, MODBUS, MODBUS ASCII, MODBUS Unicode, Allen-Bradley CIP, and Ethernet I/P.

The 2711R-T7T features a 7-inch colored display screen that supports vertical or horizontal orientation in widescreen format. It has a resolution of 800 x 480 with an effective viewing area of 153.6 x 86.6 mm (6.05 x 3.41 in.). It has an analog resistive touchscreen interface with designed operation life of up to 1 million actuations.

It comes with an integral memory amounting to 256 MB Flash Memory and 256 MB DDR RAM. It supports installation of external storage such as Industrial grade micro-SD cards and specifically compatible with SDSC and Class 6 & Class 10 SDHC micro-SD cards, FAT32/16 formats, up to 32 GB maximum size.

It has a variety of interface such as Ethernet, RS232 / RS422 / RS485 communication ports as well as USB peripheral port for insertion of external input devices such as mouse and keyboard.

It supports implementation of recipes for batching applications wherein up to 50 recipes can be stored.
