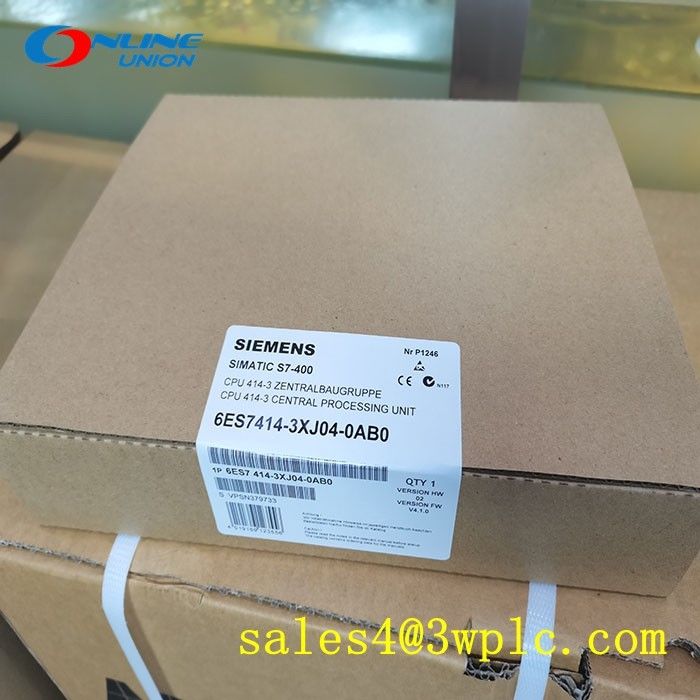

6ES7414-3XJ04-0AB0 SIEMENS CPU 414-3 Central processing unit

SIEMENS 6ES7414-3XJ04-0AB0 CPU 414-3 Central processing unit:

SIMATIC S7-400, CPU 414-3 Central processing unit with: work memory 1.4 MB, (700 KB code, 700 KB data), 1st interface MPI/DP 12 Mbit/s, 2nd interface PROFIBUS DP, 3rd interface plug-in IFM module.

Technical Specifications:

Type: S7-400 CPU (CPU 414-3)

Performance:

Cycle time: 150 ns per 1k instructions

Boolean operations: 1.0 ns per instruction

Floating-point operations: 10 ns per instruction

Memory:

User memory: 512 KB (expandable to 2 GB via MMC)

Data retention: 200 hours (via built-in battery)

Communication:

PROFINET IO: 2 ports (100 Mbps, RJ45/M12 connectors)

PROFIBUS DP: 1 port (12 Mbps, D-sub 9-pin)

Modbus TCP: 1 port (via software license)

Safety protocol: PROFIsafe (SIL 3/PLe)

I/O Capacity:

Maximum modules: 21 (central rack) + 8 (expansion racks)

Digital I/O: 16 channels (8 inputs/8 outputs, 24V DC)

Analog I/O: 4 channels (0–10V/4–20mA)

Motion Control:

Axis support: 16 axes (via S7-400H technology)

Positioning resolution: 0.1 μm

Sync control: Electronic camming, gearing, and phase shifting

Redundancy Features:

Hot-swap capable: ≤200ms failover time (with redundant partner CPU)

Data synchronization: 1ms (100% parity)

Diagnostic LEDs: Redundancy status, CPU health, I/O errors

Power Consumption:

24V DC: 3.5A (typical), 4.8A (peak)

5V DC: 3.0A (from backplane bus)
