1794-IE12 Allen Bradley Flex 12 Point Analog Input Module

1794-IE12 Allen Bradley Flex 12 Point Analog Input Module

  • 1794-IE12 Allen Bradley Flex 12 Point Analog Input Module
1794-IE12 Allen Bradley Flex 12 Point Analog Input Module
Product Details:
Place of Origin: USA
Brand Name: Allen Bradley
Model Number: 1794-IE12
Contact Now
Detailed Product Description
Absolute Accuracy: 0.1% Full Scale @ 25 °C Terminal Base: 1794-TB3G; 1794-TB3GS
Indicators: 1 Green/red Power/status Indicator Mounting: DIN Rail
Wire Size: Determined By Installed Terminal Base Vibration: 5g @ 10 To 500 Hz
Applicantions: Industrial Automation Brand: Allen Bradley
Rated Voltage: 220V Protection Level: IP65
Product Certification: CCC, UL
Highlight:

dc allen bradley plc

,

compact allen bradley plc

,

industrial automation allen bradley plc

Description

The Allen-Bradley 1794-IE12 is a high-density analog input module from the Flex I/O product family. This module is primarily designed to connect analog devices such as transmitters, indicators, recorders, single-loop and multi-loop controllers, and other equipment.


The 1794-IE12 is equipped with twelve (12) analog input channels that can be configured as 0 to 20mA, 4 to 20 mA, +/- 10VDC, and 0 to 10 VDC input signal types. It integrates analog-to-digital conversion circuitry that uses successive approximation with a voltage resolution of 320 μV/cnt and a current resolution of 0.641 μA/cnt. The analog data format is stored in 16-bit left-aligned registers with a conversion rate of 8.0 ms for all channels. The 1794-IE12 has an absolute accuracy of 0.1% full scale @ 25 °C for voltage and current inputs, and an accuracy drift of 0.004% full scale/°C.


The 1794-IE12 is designed for use with the 1794-TB3G and 1794-TB3GS terminal blocks. Only one terminal block is required per module. When installing the module into the appropriate terminal block, the expected key switch position is 3. The key switch position is a foolproof hardware installation key that prevents installing the wrong module into the wrong terminal block.

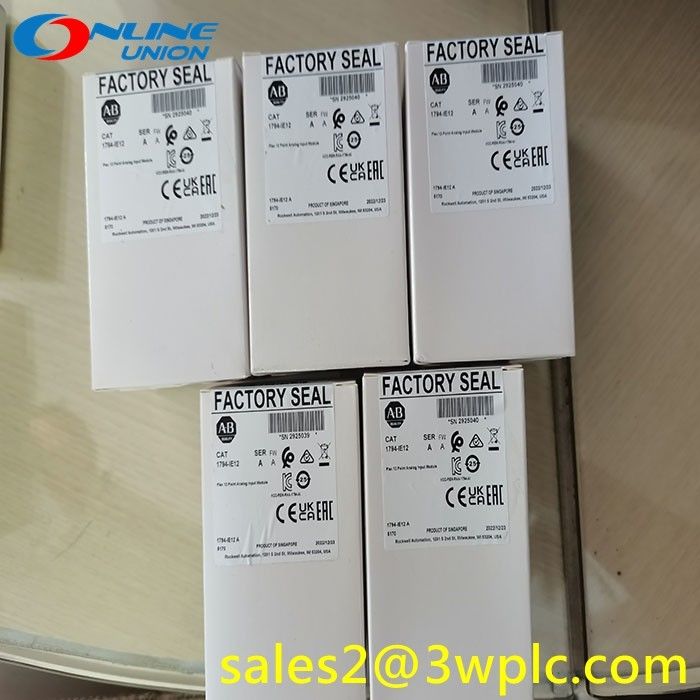

1794-IE12 Allen Bradley Flex 12 Point Analog Input Module 0
