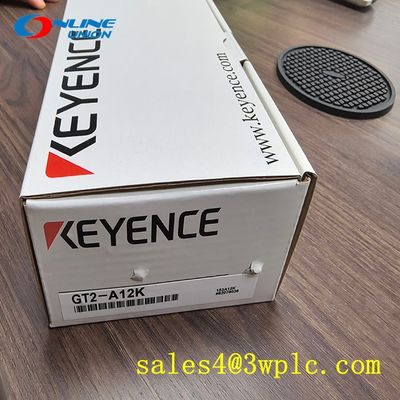

GT2-A12K KEYENCE Sensor Head, High-precision Type, Air Cylinder Model

GT2-A12K KEYENCE Sensor Head, High-precision Type, Air Cylinder Model

  • GT2-A12K   KEYENCE Sensor Head, High-precision Type, Air Cylinder Model
  • GT2-A12K   KEYENCE Sensor Head, High-precision Type, Air Cylinder Model
GT2-A12K   KEYENCE Sensor Head, High-precision Type, Air Cylinder Model
Product Details:
Place of Origin: Japan
Brand Name: KEYENCE
Model Number: GT2-A12K
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $99
Delivery Time: In stock/1-3days
Payment Terms: T/T
Supply Ability: 10
Contact Now
Detailed Product Description
Model: GT2-A12K Detection System: Scale Shot System, Absolute (no Tracking Errors) Type
Measuring Range: 12 Mm Resolution: 0.1 μm
Indicated Accuracy: 1 µm (p-p)*1 Sampling Cycle: 1 Ms
Fluid Used: Dry Air Operation Indicator Light: 2-colour LED (red, Green)
Enclosure Rating: IP67 (IEC)*3 Pressure Resistance: 1 MPa
Applied Pressure Range: 0.25 MPa To 0.50 MPa Ambient Temperature: 0 To +55 °C (No Freezing)
Sensor Head Cable: Optional (connect To The M8 Connector) Weight: Approx. 145 G (not Including Cable)
Highlight:

sensor head keyence parts

,

ip67 keyence parts

,

compact keyence parts

KEYENCE GT2-A12K  Sensor Head, High-precision Type, Air Cylinder Model:


The KEYENCE GL-R24H is a high-performance area sensor designed for large-area object detection and safety monitoring in industrial automation. Part of KEYENCE’s GL-R series, it excels in applications requiring wide-coverage sensing and high-speed response, making it ideal for logistics, packaging, and assembly lines.



Key Features:

Unmatched Precision

Resolution: 0.1 μm (0.0001 mm) for detecting minute dimensional changes.

Accuracy: ±1 μm (peak-to-peak) at 20°C, ensuring reliable data for critical processes.

Robust Industrial Design

IP67 Rating: Dustproof and waterproof, withstanding splashes and harsh environments.

Pressure Resistance: 1 MPa pressure resistance and 0.25–0.5 MPa operating range.

Durability: Vibration-resistant (10–55 Hz) and shockproof (1,000 m/s²).

Flexible Installation

Mounting Options: Supports downward, lateral, or upward orientations.

Measurement Force: Adjustable force (1.0–1.2 N) to prevent workpiece deformation.

Cable Configuration: M8 connector cables (sold separately) for customizable lengths.

Advanced Detection System

Quartz Glass Scale + CMOS Sensor: Absolute encoding system eliminates tracking errors.

Sampling Speed: 1 ms cycle time for high-speed dynamic measurements.

Intuitive Diagnostics

2-Color LED Indicator: Provides real-time status feedback (red/green).

Wide Temperature Range: Operates from 0°C to +55°C.



GT2-A12K   KEYENCE Sensor Head, High-precision Type, Air Cylinder Model 0




Packing & Delivery:

1)100% brand New and Original Factory Seal!

2)Warranty: 1 year

3)Package: Original packing with cartons.

4)Delivery time: Shipped in 3-7 days after payment

5) All the goods will be tested before shipment.
