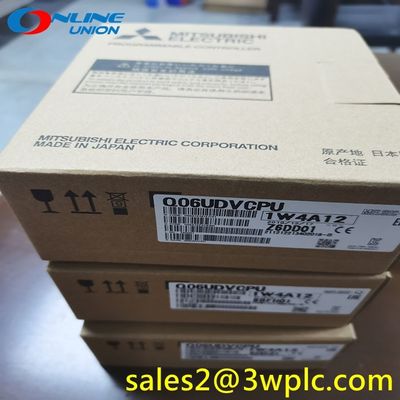

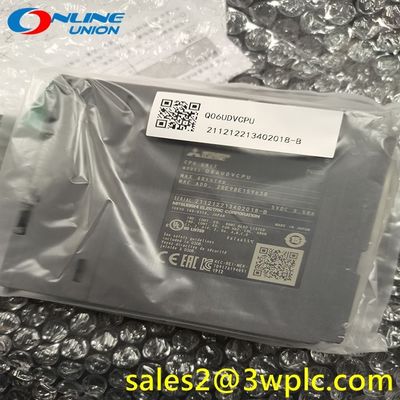

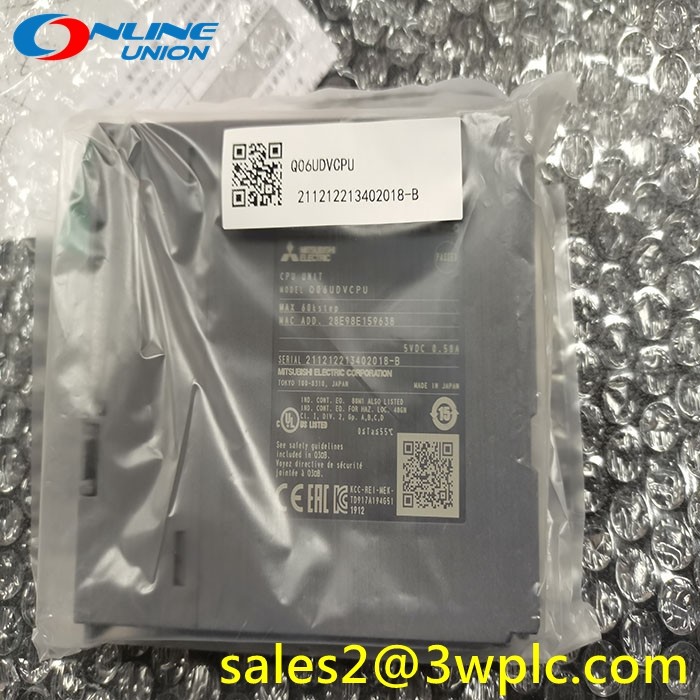

Q06UDVCPU Mitsubishi High Speed Module General Purpose CPU Module

The Q06UDVCPU is a high-performance, general-purpose CPU module from Mitsubishi Electric's Q series PLC family. Designed for industrial automation, it combines high-speed processing, extensive I/O capabilities, and robust communication features to handle complex control tasks efficiently. Its advanced architecture ensures real-time performance, making it ideal for applications requiring precision, speed, and scalability.

• High-Speed Processing: Basic operation speed of 1.9ns (LD X0) and 3.9ns (MOV D0 D1) ensures rapid response to control commands.
• Large Program Capacity: 60K-step program capacity and 240K-byte program memory accommodate complex control logic.
• Extensive I/O Support: 4096 I/O points and 8192 device points provide flexibility for system expansion.
• Multi-CPU Communication: Enables high-speed data exchange between multiple Q series CPUs for coordinated control.
• Data Recording & Analysis: Supports CSV-format data recording to SD/SDHC cards for troubleshooting and performance analysis.
• Compact & Lightweight: Small footprint (98mm x 27.4mm x 115mm) and lightweight design (0.2kg) simplify integration.

• Motion Control: High-speed positioning and synchronization in CNC machines, robots, and packaging lines.
• Process Automation: Real-time monitoring and control of manufacturing processes (e.g., chemical, pharmaceutical).
• Material Handling: Conveyor systems, sorting machines, and automated warehouses.
• Test & Measurement: Data acquisition and control in testing equipment and quality inspection systems.
• Energy Management: Monitoring and optimization of power consumption in factories and buildings.
