Name: IL-S065 KEYENCE Sensor heads
Brand: Xiamen Online Union Technology Co., Ltd
SKU: IL-S065
Price: 99 USD
Availability: InStock

Home Products KEYENCE Parts

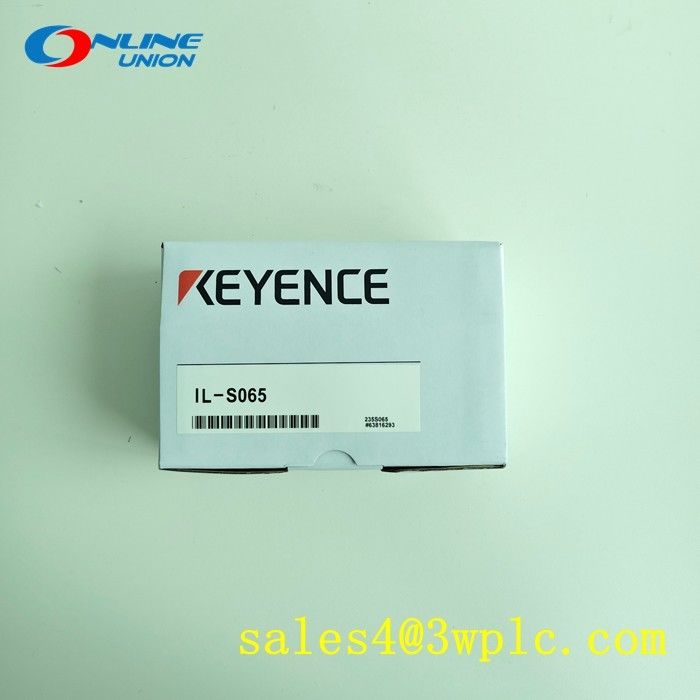

IL-S065 KEYENCE Sensor heads

Product Details:

Place of Origin:	Japan
Brand Name:	KEYENCE
Model Number:	IL-S065

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$99
Delivery Time:	In stock/1-3days
Payment Terms:	T/T
Supply Ability:	10

Contact Now

Detailed Product Description

Model:	IL-S065	Reference Distance:	65 Mm
Measurement Range:	55 To 75 Mm	Type:	Red Semiconductor Laser, Wavelength: 655 Nm (visible Light)
Laser Class:	Class 2 (FDA (CDRH) Part1040.10)*1, Class 2 (IEC 60825-1)	Output:	560 µW
Spot Diameter:	Approx. 55 X 1,700 µm	Linearity:	±0.05% Of F.S. (55 To 65 Mm)23 ±0.075% Of F.S. (55 To 75 Mm)23
Repeatability:	2 µm*4	Sampling Rate:	0.33/1/2/5 Ms (4 Levels Available)
Temperature Characteristics:	0.02% Of F.S./°C*3	Enclosure Rating:	IP67
Pollution Degree:	3	Ambient Light:	Incandescent Lamp: 10,000 Lux*5
Ambient Temperature:	-10 To +50 °C (No Condensation Or Freezing)	Relative Humidity:	35 To 85 % RH (No Condensation)
Vibration Resistance:	10 To 55 Hz, Double Amplitude 1.5 Mm, 2 Hours In Each Of The X, Y, And Z Directions	Material:	Housing Material: PBT, Metal Parts: SUS304, Packing: NBR, Lens Cover: Glass, Cable: PVC
Weight:	Approx. 75 G
Highlight:	sensor head keyence parts , ip67 keyence parts , compact keyence parts

KEYENCE IL-S065 Sensor heads:

The Keyence IL-S025 is a high-performance laser sensor designed for precision measurement and detection in industrial automation. It features advanced laser technology, high-speed processing, and a compact design, making it ideal for applications requiring stable detection of small targets, transparent objects, or irregularly shaped parts.

Key Features:

High-Speed Detection: 392 kHz sampling rate for fast-moving objects.

High-Accuracy Measurement: 0.1 μm resolution for precise dimensional analysis.

Flexible Detection Modes: Through-beam, retro-reflective, or diffuse-reflective modes.

Compact Design: Ultra-small footprint for tight spaces.

Rugged Durability: IP67-rated housing for harsh industrial environments.

Easy Setup: One-touch auto-tuning simplifies calibration.

Wide Operating Temperature Range: -20°C to +55°C.

IL-S065 KEYENCE Sensor heads 0

Packing & Delivery:

1)100% brand New and Original Factory Seal!

2)Warranty: 1 year

3)Package: Original packing with cartons.

4)Delivery time: Shipped in 3-7 days after payment

5) All the goods will be tested before shipment.
