Name: XPSAF5130 Schneider XPS AF Safety Switch/Interlock Safety Relay
Brand: Xiamen Online Union Technology Co., Ltd
SKU: XPSAF5130
Price: 50.00 USD
Availability: InStock

Home > Products > Schneider Module >

XPSAF5130 Schneider XPS AF Safety Switch/Interlock Safety Relay

Interlock Safety Relay Schneider Module

Safety Switch XPSAF5130 Schneider

Interlock Safety Relay XPSAF5130 Schneider

Place of Origin:

Frence

Model Number:

XPSAF5130

Request A Quote

Product Details

Color:

Black

Material:

Plastic

Compatibility:

Schneider Electric Products

Cpu Function:

Yes, Using LED Status Indicator

Output Voltage:

24V DC

Power Supply:

AC 100-240V

Operating Temperature:

0-40°C

Highlight:

Interlock Safety Relay Schneider Module

Safety Switch XPSAF5130 Schneider

Interlock Safety Relay XPSAF5130 Schneider

Payment & Shipping Terms

Minimum Order Quantity

Price

1-99$

Packaging Details

Brand New Original

Delivery Time

in stock / 1-3 work days

Payment Terms

T/T

Supply Ability

999

Powerful Schneider Module Schneider 140NOM25200C Automation Control Functions

Get Best Price

400MHz Schneider 170BDM34400 Building Automation Systems High Security

Get Best Price

XPSAF5130 Schneider XPS AF Safety Switch/Interlock Safety Relay

Get Best Price

Easy Installation Schneider TSXDSF612 CPU Module Modicon Premium Series

Get Best Price

Contact Now

Product Description

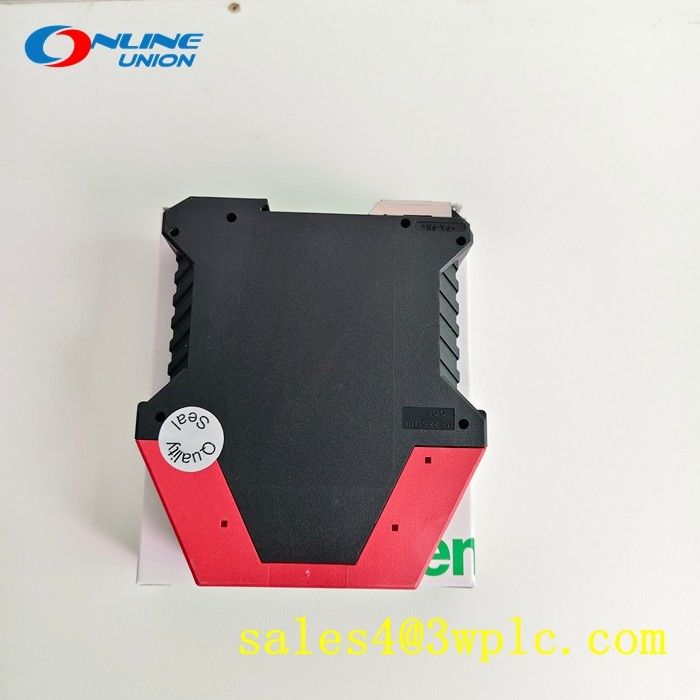

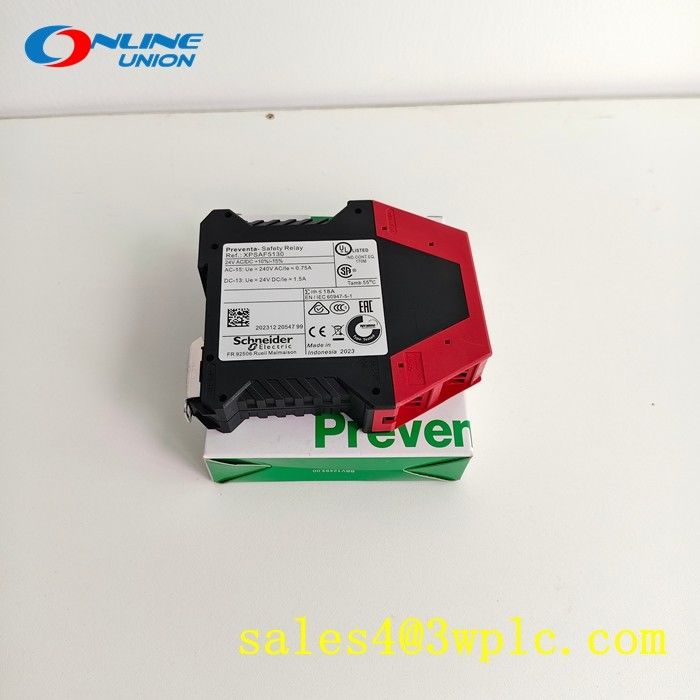

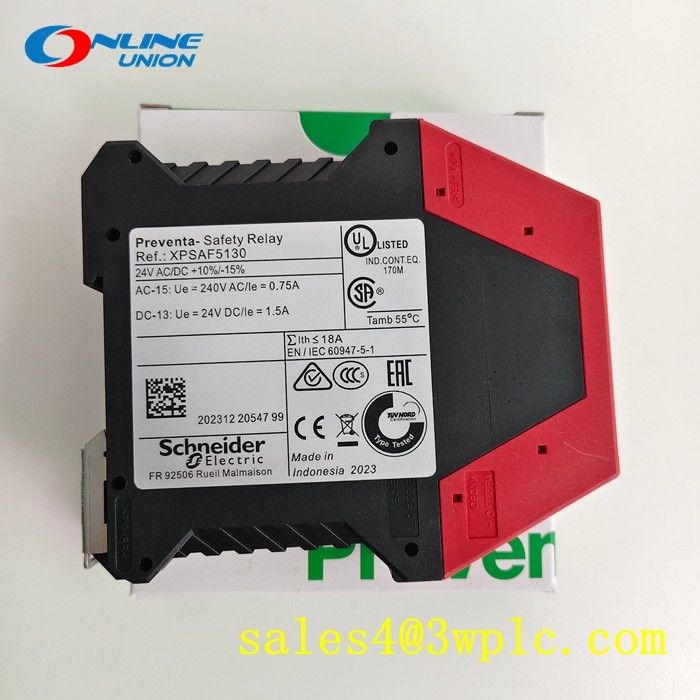

Schneider XPSAF5130 XPS AF Safety Switch/Interlock Safety Relay

The Schneider Electric XPSAF5130 is a Preventa safety automation module designed for industrial environments requiring high-reliability safety control. It provides instantaneous circuit disconnection during emergencies, ensuring rapid protection of equipment and personnel. This module is ideal for monitoring emergency stops, safety switches, and light curtains, with a focus on compliance with safety standards (e.g., ISO 13849-1, IEC 62061). Its robust construction and 3 independent normally open (NO) relay circuits enable flexible integration into safety systems.

Technical Specifications:

Parameter	Details
Product Series	Schneider Electric Preventa XPS AF
Output Type	3PST-NO (3 Form A) instantaneous relay contacts, 1 solid-state output
Control Voltage	24 V AC/DC (±15% tolerance)
Current Rating	1.5 A at 24 V DC (DC-13), 6 A at 24 V AC (AC-15)
Mounting	DIN rail (35 mm) with screw terminals
Terminal Type	Screw clamp (wire range: 0.14-2.5 mm²)
Safety Certifications	UL, CSA, PL e (ISO 13849-1), SILCL 3 (IEC 62061)
Thermal Current	18 A (conventional free air)
Power Consumption	≤5 VA (AC), ≤4 W (DC)
IP Rating	IP20 (front), IP40 (rear)
Dimensions (W x H x D)	22.5 mm x 99 mm x 114 mm
Weight	0.25 kg
Operational Temperature	-20°C to +60°C
Safety Function	Configurable for 1 or 2-channel emergency stop monitoring
Diagnostic Features	LED status indicators, forced disconnection test

Packing & Delivery:

100% brand New and Original Factory Seal!
Warranty: 1 year
Package: Original packing with cartons
Delivery time: Shipped in 3-7 days after payment
All the goods will be tested before shipment
