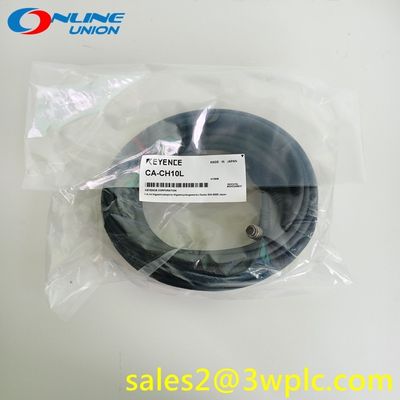

L Shaped KEYENCE CA-CH10L Connector Camera Cable 10M For High Speed Camera

Product Details:

Place of Origin:	JAPAN
Brand Name:	KEYENCE
Model Number:	CA-CH10L

Contact Now

Detailed Product Description

Length:	5 Meters	Operating Temperature:	-20°C To 60°C
Material:	High-flexibility, Industrial-grade Polymers	Connector Type:	L-shaped Proprietary KEYENCE Interface
Weight:	0.7 Kg	Bend Radius:	≤20mm
Highlight:	10M KEYENCE CA-CH10L , L shaped KEYENCE CA-CH10L , L Shaped CA-CH10L Camera Cable

Product Overview

The KEYENCE CA-CH10L is a specialized 10-meter camera cable designed for the CV-5000 series ultra-high-speed vision systems. It features an L-shaped connector, optimizing space efficiency in compact installations while maintaining signal integrity for high-speed imaging applications. KEYENCE now recommends the CV-X series as a modern replacement for enhanced performance.

Key Features

L-Shaped Connector: Reduces cable strain and saves space in tight environments, such as robotic arms or CNC machines.

Extended Length: 10-meter cable for large-scale automation setups.

Durability: Constructed with high-flexibility materials to withstand bending, vibration, and temperature fluctuations (-20°C to 60°C).

Connectivity: Proprietary KEYENCE interface for plug-and-play compatibility with CV-5000 series vision systems.

Model Variants:

CA-CH10L: Standard 10m cable with L-shaped connector.

CA-CH10L-BP/BPE: Environment-resistant cables for harsh industrial conditions.
