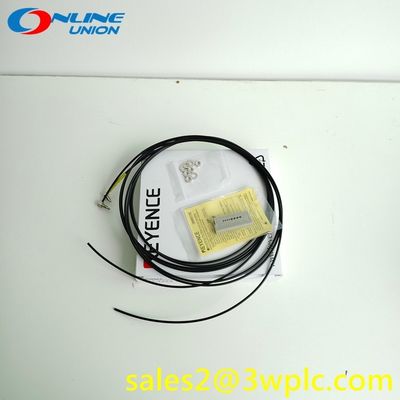

Thrubeam Type KEYENCE FU-77TZ Fibre Unit Infrared LED M4 Thread High Resolution Detection

Product Details:

Place of Origin:	JAPAN
Brand Name:	KEYENCE
Model Number:	FU-77TZ

Contact Now

Detailed Product Description

Detection Method:	Thru-beam	Light Source:	Infrared LED (Emitter)
Fiber Optic Cable:	2 M (free-cutting), ø2.2 Mm	Minimum Bending Radius:	2 Mm
Thread Size:	M4	Detection Object Size:	ø1.13 Mm (minimum)
Highlight:	Thrubeam Type KEYENCE FU-77TZ , Infrared LED KEYENCE FU-77TZ , M4 Thread FU-77TZ Fibre Unit

Product Overview

The KEYENCE-FU-77TZ is a high-performance thru-beam fiber optic sensor designed for precision detection in industrial automation. Part of KEYENCE's FU series, this sensor excels in applications requiring reliable object detection, such as part presence verification, counting, and quality control in manufacturing and packaging lines.

Key Features

Thru-Beam Detection: Utilizes separate emitter and receiver units for enhanced detection accuracy and stability.

M4 Thread Design: Compact and lightweight, ideal for space-constrained applications.

High-Resolution Detection: Capable of detecting objects as small as ø1.13 mm.

Durable Construction: IP67-rated housing withstands harsh industrial environments, including dust and water immersion.

Flexible Installation: 2-meter fiber optic cable (free-cutting) with a minimum bending radius of 2 mm.

User-Friendly Interface: Large micro-adjustment button and clear status indicators for easy setup and monitoring.

Wide Operating Temperature Range: Functions reliably from -40°C to +50°C.
