Home ProductsSIEMENS PLC Module

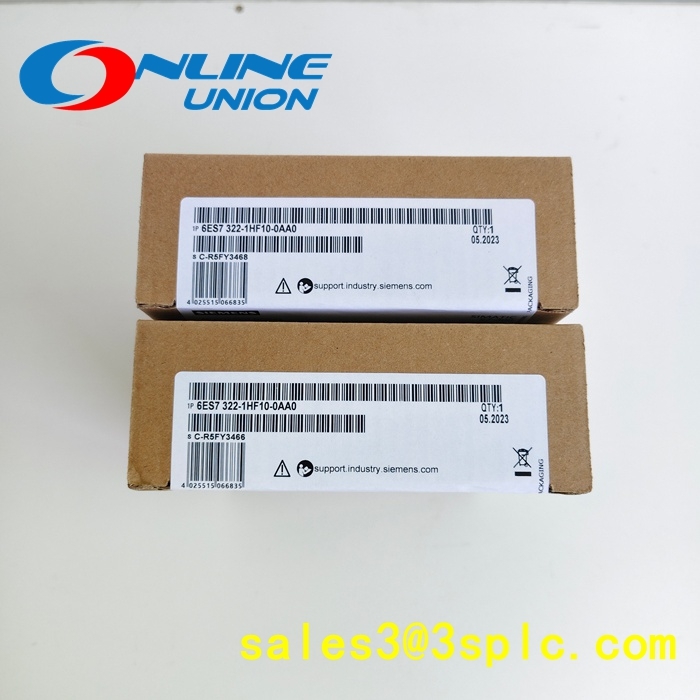

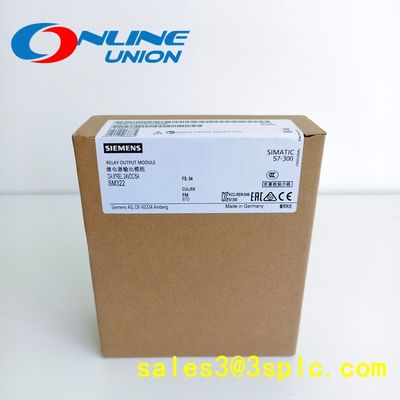

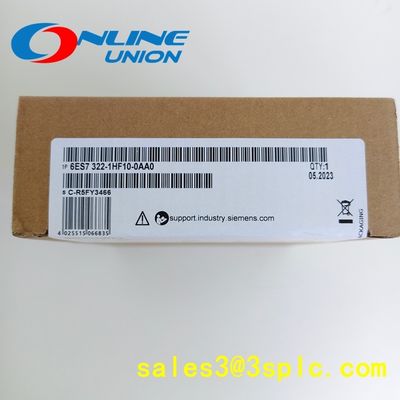

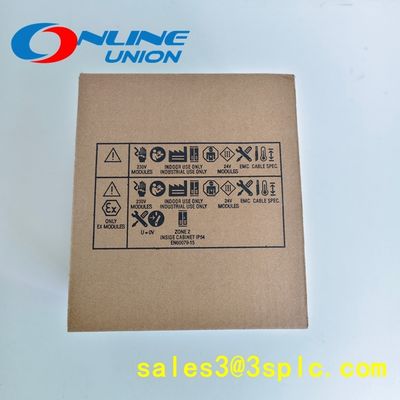

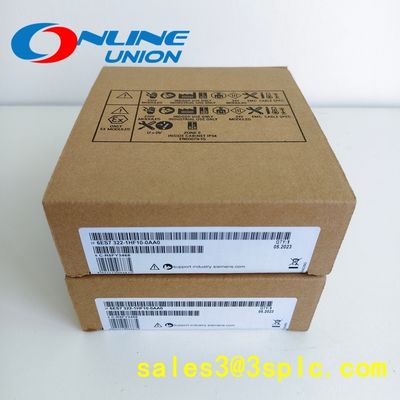

6ES7322-1HF10-0AA0

6ES7322-1HF10-0AA0

  • 6ES7322-1HF10-0AA0
  • 6ES7322-1HF10-0AA0
  • 6ES7322-1HF10-0AA0
  • 6ES7322-1HF10-0AA0
  • 6ES7322-1HF10-0AA0
6ES7322-1HF10-0AA0
Product Details:
Place of Origin: DE
Brand Name: SIEMENS
Model Number: 6ES7322-1HF10-0AA0
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $99
Packaging Details: New sealed
Delivery Time: In stock/1-3days
Payment Terms: T/T
Supply Ability: 5000
Contact Now
Detailed Product Description
Rated Power: 1.5 KW Cooling: Internal Air Cooling
Brand: SIEMENS Rated: IP20 Protection
Warranty: 1 Year

6ES7322-1HF10-0AA0 Module

6ES7322-1HF10-0AA0 is a digital output module in the Siemens SIMATIC S7-300 series, model SM 322. This module has potential isolation function, with 8 digital output channels and relay output mode. It can withstand high voltage and current and is suitable for controlling various industrial equipment such as motors, solenoid valves, etc. Its rated load voltage range is wide, supporting AC48~230V, and the output current can reach up to 5A (depending on the module specifications), meeting the application needs of different industrial scenarios. In terms of isolation and protection, the module achieves isolation between output channels and between output channels and the backplane bus, effectively preventing external interference from affecting the internal circuits of the module. At the same time, it has short-circuit protection and overload protection functions, ensuring stable operation under harsh conditions. In addition, the module also supports diagnostic interrupt function, which can monitor the running status of the module in real time, detect and solve problems in a timely manner. Its dimensions are 13.10 x 15.10 x 5.20 centimeters, with a net weight of 0.312 kilograms, making it easy to install and carry, while complying with the RoHS directive to ensure environmental compliance. This module is widely used in manufacturing, process control, building automation and other fields, and can be used in conjunction with other modules in the Siemens S7-300 series to build efficient and stable automation control systems.



Technical specifcations for 6ES7322-1HF10-0AA0

Model: 6ES7322-1HF10-0AA0
Series: Siemens SIMATIC S7-300 series
Module type: Digital output module (SM 322)
Output mode: Relay output
Isolation method: potential isolation, dividing 8 output channels into 1 group for isolation
2, Input/output configuration
Number of output channels: 8 digital output channels
Rated load voltage:
DC 24V to 120V
AC 48V to 230V
Maximum output current:
Resistive load: 5A (AC 230V), 8A (DC 24V)
Inductive load: 3A (AC 230V), 2A (DC 24V)
Short circuit protection: requires external provision
3, Physical characteristics
Size: 13.10cm x 15.20cm x 5.10cm
Net weight: approximately 0.366kg
Connector: 40 pins, equipped with cage type terminals
Working temperature range: -25 ℃ to 60 ℃
Protection level: IP20, suitable for standard industrial environments
4, Function and compatibility
Diagnostic function: supports diagnostic interrupts and real-time monitoring of module operation status
Fault event buffer: Record the last 100 fault events for easy troubleshooting
User program password protection: ensuring system security and reliability
Compatibility: Can be used in conjunction with other modules in the Siemens S7-300 series to build efficient and stable automation control systems
The 6ES7322-1HF10-0AA0 module performs excellently in input and output configuration, physical characteristics, functionality, and compatibility, and can meet the complex requirements of modern industry for automation control.
