6ES7331-1KF02-0AB0 analog input module

6ES7331-1KF02-0AB0 analog input module

  • 6ES7331-1KF02-0AB0 analog input module
  • 6ES7331-1KF02-0AB0 analog input module
  • 6ES7331-1KF02-0AB0 analog input module
6ES7331-1KF02-0AB0 analog input module
Product Details:
Place of Origin: DE
Brand Name: SIEMENS
Model Number: 6ES7331-1KF02-0AB0
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $99
Packaging Details: New sealed
Delivery Time: In stock/1-3days
Payment Terms: T/T
Supply Ability: 5000
Contact Now
Detailed Product Description
Rated Power: 1.5 KW Cooling: Internal Air Cooling
Brand: SIEMENS Rated: IP20 Protection
Warranty: 1 Year

6ES7331-1KF02-0AB0 Module

6ES7331-1KF02-0AB0 is an analog input module in the Siemens SIMATIC S7-300 series, model SM 331. This module has potential isolation function, with 8 analog input channels and supports multiple input types, including voltage (0 to+10V, 1V to 5V, etc.), current (0 to 20mA, 4mA to 20mA, etc.), resistance (0 to 600 Ω, 0 to 6000 Ω), and thermistor (Pt100, Ni100, Ni1000, etc.). It has a conversion time of 66ms, a resolution of up to 13 bits, and a parameterized integration time (including four levels of 2.5ms, 16.7ms, 20ms, and 100ms).

In terms of physical characteristics, the module size is 40mm × 125mm × 117mm, weighing approximately 250g, and connected using a 40 pin front plug. In terms of power requirements, it comes from the DC 5V of the backplane bus, with a maximum current of 90mA and a typical power loss of 0.4W.

In addition, the module also supports diagnostic interrupt function, which can monitor the running status of the module in real time and record the last 100 fault events for easy troubleshooting. At the same time, it also has user program password protection function to ensure the security and reliability of the system. This module is widely used in manufacturing, process control, building automation and other fields, and can be used in conjunction with other modules in the Siemens S7-300 series to build efficient and stable automation control systems.


Technical specifcations for 6ES7331-1KF02-0AB0

Model: 6ES7331-1KF02-0AB0
Series: Siemens SIMATIC S7-300 series
Module type: Analog input module (SM 331)
Number of input channels: 8 analog input channels
Isolation method: potential isolation, isolation between channel and backplane bus
2, Input characteristics
Input type:
Voltage (U): 0 to+10V, 1V to 5V, -1V to+1V, -10V to+10V, -5V to+5V, -50mV to+50mV, -500mV to+500mV
Current (I): 0 to 20mA, 4mA to 20mA, -20mA to+20mA
Resistance: 0 to 600 Ω, 0 to 6000 Ω
Thermistor: Pt100, Ni100, Ni1000, LG-Ni1000, PTC/KTY
Input range:
Voltage: Rated values include 0 to+10V, 1V to 5V, etc., with an input resistance of 100k Ω
Current: Rated values include 0 to 20mA, 4mA to 20mA, etc., with an input resistance of 100 Ω
Resistance: The rated values include 0 to 600 Ω, 0 to 6000 Ω, and the input resistance is 100M Ω
Thermistor: Supports multiple types, such as Pt100 (input resistance 100M Ω), Ni100 (input resistance 100M Ω), etc
Accuracy:
Voltage: The operating error limit for the entire temperature range is ± 0.6%, and the basic error limit for 25 ℃ is ± 0.4%
Current: Operating error limit within the entire temperature range is ± 0.5%, and basic error limit at 25 ℃ is ± 0.3%
Resistance: The operating error limit for the entire temperature range is ± 0.5%, and the basic error limit at 25 ℃ is ± 0.3%
Thermistor: The operating error limit for the entire temperature range is ± 1K (Pt100, Ni100, climate), and the basic error limit at 25 ℃ is ± 0.8K (Pt100, Ni100, climate)
3, Conversion and Resolution
Conversion time: 66ms (basic conversion time 55ms)
Resolution: 13 bits (including symbol bits)
Integral time: Parameterized, including four levels of 2.5ms, 16.7ms, 20ms, and 100ms
4, Physical characteristics
Dimensions: Width 40mm, Height 125mm, Depth 117mm
Weight: Approximately 250g
Connector: 40 pin front plug
Power requirement: DC 5V from backplane bus, maximum current 90mA, typical power loss 0.4W
5, Function and compatibility
Diagnostic function: supports diagnostic interrupts and real-time monitoring of module operation status
Fault event buffer: Record the last 100 fault events for easy troubleshooting
User program password protection: ensuring system security and reliability
Compatibility: Can be used in conjunction with other modules in the Siemens S7-300 series to build efficient and stable automation control systems
6, Application Fields
This module is widely used in manufacturing, process control, building automation and other fields. It can be used in conjunction with other modules in the Siemens S7-300 series to build an efficient and stable automation control system


More Products In Stock:
66FC5357-0BB22-0AE0 6AV2124-0QC02-0AX1 1FL6034-2AF21-1AA1  3RF2171-1AA45-1KP0
3RT1015-1WB41 3RT1017-1BB42 3RT2326-2BB40 3RV1011-0HA10
 6AU1410-0AB00-0AA0  6AV6 642-0BA01-1AX1 6AV6 643-OCD01-1AX2 6AV2123-2GB03-0AX0

Our Services:

1,All our products are new and orginal, and of good quality

2,Our prices are very competitive.

3, We have a large quantity in stock, so we could help the customers to get the components which are dificult to get.

4,All inquiries will be valued and will reply in 24.


Packing & Delivery:

1,100% brand New and Original Factory Seal!

2,Warranty:1 year

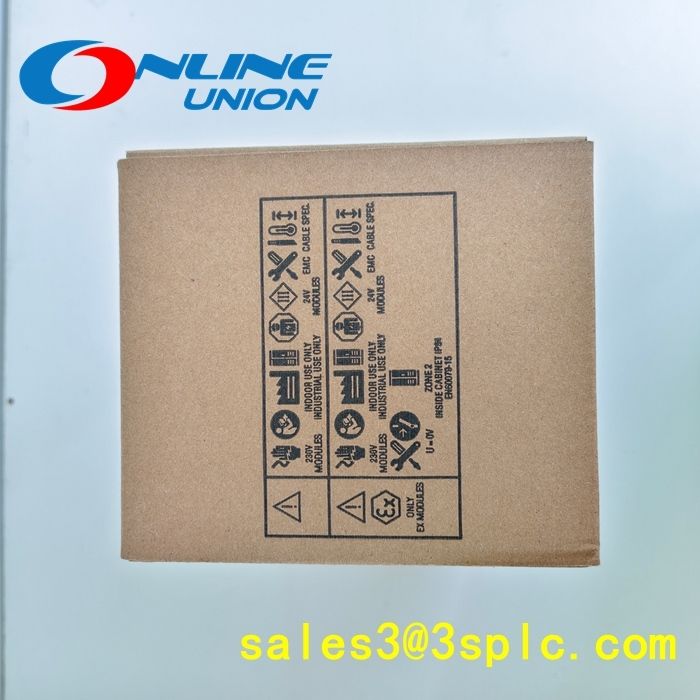

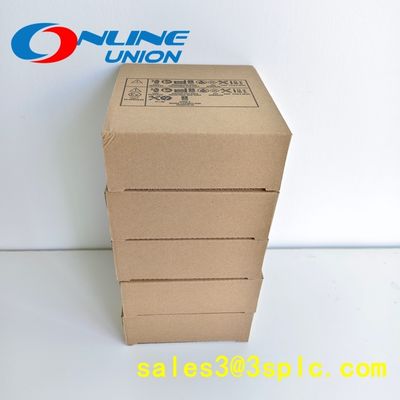

3,Package: Original packing with cartons.
