Home ProductsSIEMENS PLC Module

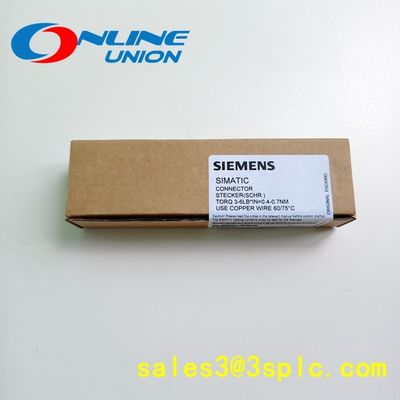

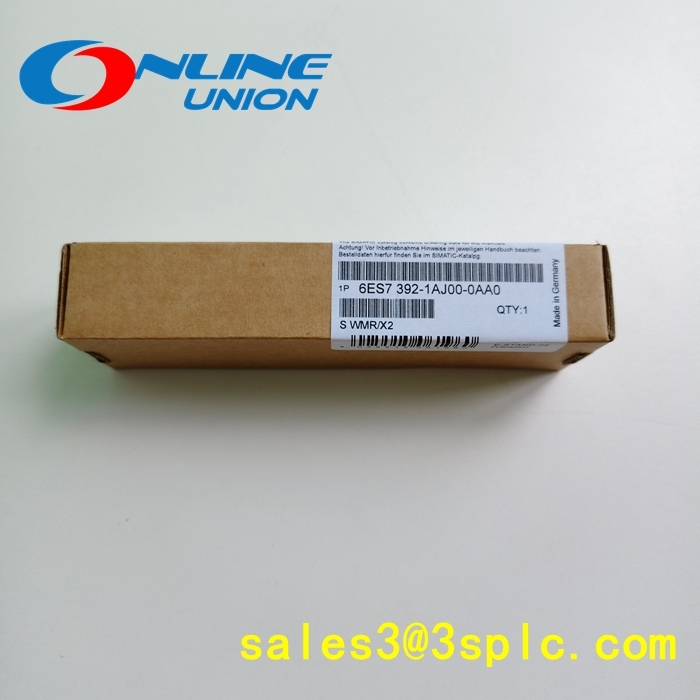

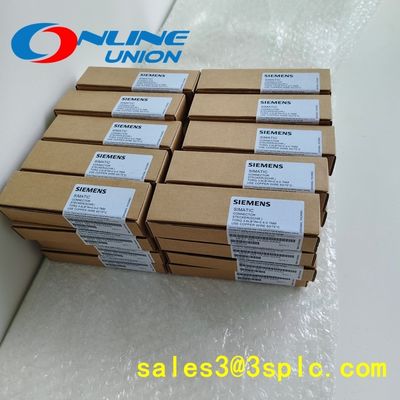

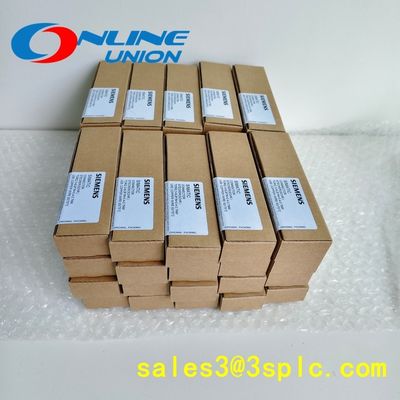

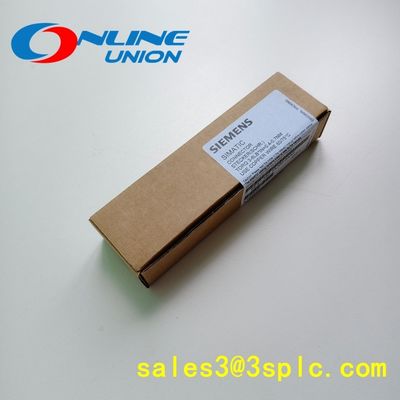

6ES7392-1AJ00-0AA0

6ES7392-1AJ00-0AA0

  • 6ES7392-1AJ00-0AA0
  • 6ES7392-1AJ00-0AA0
  • 6ES7392-1AJ00-0AA0
  • 6ES7392-1AJ00-0AA0
  • 6ES7392-1AJ00-0AA0
6ES7392-1AJ00-0AA0
Product Details:
Place of Origin: DE
Brand Name: SIEMENS
Model Number: 6ES7392-1AJ00-0AA0
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $99
Packaging Details: New sealed
Delivery Time: In stock/1-3days
Payment Terms: T/T
Supply Ability: 5000
Contact Now
Detailed Product Description
Rated Power: 1.5 KW Cooling: Internal Air Cooling
Brand: SIEMENS Rated: IP20 Protection
Warranty: 1 Year

6ES7392-1AJ00-0AA0 Module

6ES7392-1AJ00-0AA0 is a front connector module in the Siemens SIMATIC S7-300 series, designed specifically for signal modules, with screw type contacts and a 20 pin interface. This module ensures the stability and anti-interference ability of signal transmission through potential isolation technology, supports multiple industrial signal types (such as voltage, current, etc.), and is suitable for complex automation control scenarios. Its compact physical size (13.10cm × 15.20cm × 5.10cm) and lightweight design (approximately 0.07kg) make it easy to install and maintain. The screw type terminals provide a secure wiring method, and the encoding device effectively avoids module misconnection. As a key expansion component of the S7-300 series PLC, this front connector is widely used in fields such as mechanical manufacturing, process control, and power monitoring. It can significantly enhance the system's analog processing capability and is a core component for achieving stable and efficient signal connections in industrial automation projects.


Technical specifcations for 6ES7392-1AJ00-0AA0

Model: 6ES7392-1AJ00-0AA0
Series: Siemens SIMATIC S7-300 series
Module type: Front connector module (SM 392)
Interface type: 20 pin screw type contact
2, Physical characteristics
Size: 13.10cm × 15.20cm × 5.10cm
Weight: Approximately 0.366kg (note: some sources mention 0.07kg, which may be due to packaging or measurement differences)
Connector: 20 pin screw type terminal, equipped with cage card type terminal
Protection level: IP20, suitable for standard industrial environments
3, Electrical parameters
Rated working voltage: 24V DC
Maximum allowable operating voltage: 60V DC
Maximum allowable continuous current: 1A per connector pin, total current 4A/byte
Test voltage: 0.5kV, 50Hz, lasting for 60 seconds
Gap and leakage distance: comply with EC 664 (1980) and IEC 664A (1981) standards
Overvoltage level: II, pollution level: 2, in compliance with DIN VDE 0110 (01.89) standard
4, Function and compatibility
Encoding device: The encoding device on the front connector prevents accidental insertion
Wiring method: Screw type, spring type, or insulation piercing type front connectors can be used
Compatibility: Can be used in conjunction with other modules of Siemens S7-300 series to build efficient and stable automation control systems
5, Application and environmental adaptability
Working temperature range: 0 ℃ to 60 ℃ (note: some sources mention -25 ℃ to 60 ℃, which may vary due to model or configuration differences)
Applicable environment: Complex industrial environment, providing stable signal transmission
6, Other information
Installation method: Standard S7-300 rack installation, simply hang the module on the installation rail, turn it into place, and then tighten the screws
Diagnosis and protection function: Integrated diagnostic LED, able to display the real-time working status of the module; Fault event buffer (recording the last 100 fault events), convenient for users to troubleshoot and diagnose faults
The 6ES7392-1AJ00-0AA0 module performs excellently in terms of physical characteristics, electrical parameters, functionality, and compatibility, and can meet the complex requirements of modern industry for automation control.
