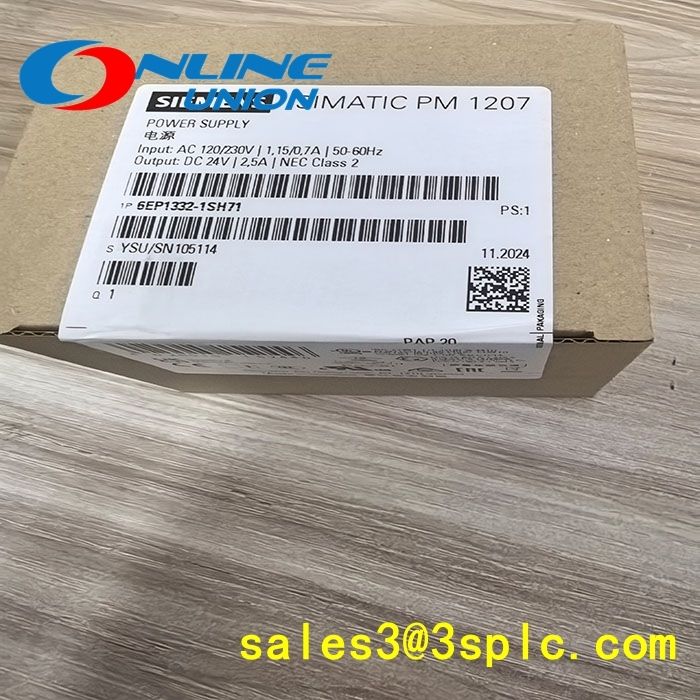

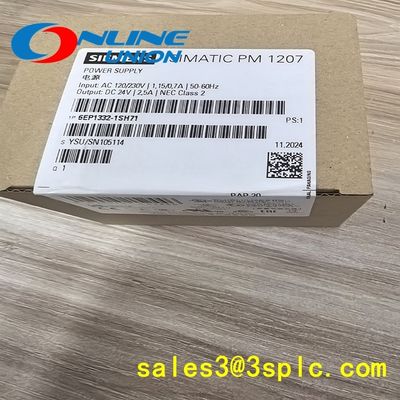

6EP1332-1SH71 Module
6EP1332-1SH71 (Siemens PM1207) is a power module in the Siemens S7-1200 series, designed specifically for industrial automation, providing a stable and reliable 24V DC power supply. Its input voltage supports automatic range switching of AC 120/230V, adapting to the global single-phase power grid. The output voltage is stable at 24V DC, with a rated current of 2.5A and a maximum power of 60W. The module has a short-term power fault buffering function to ensure stable operation of the system in case of power fluctuations, and supports parallel connection of two modules to improve performance. The green LED status indicator light intuitively displays the "24V normal" status for real-time monitoring. This module adopts a compact design, with dimensions of 70mm × 100mm × 75mm, a weight of approximately 0.3kg, supports DIN rail installation, a protection level of IP20, and is suitable for industrial environments ranging from 0-60 ℃. Through UL, CE and other certifications, compatible with S7-1200 series PLCs, widely used in automotive manufacturing, packaging machinery, process control and building automation fields, providing efficient and stable power support for CPUs, signal modules and 24V loads.
Technical specifcations for 6EP1332-1SH71
Core functions and features:
Power performance:
Input voltage: Supports automatic range switching of AC 120/230V, suitable for global single-phase power grids.
Output voltage: stable 24V DC, rated current 2.5A, maximum power 60W.
Buffer function: Short term power failure buffering to ensure continuous operation of the load.
Structural design:
Installation method: DIN rail rail installation, modular design, space saving.
Size and weight: 125mm × 70mm × 100mm, weighing approximately 0.3kg, easy to integrate into the control cabinet.
Interface: 2 24V DC output terminals, supporting parallel connection to enhance performance.
Protection and Diagnosis:
Protection functions: overload protection, short circuit protection, ensuring system safety.
Status indicator: The LED light displays the "24V normal" status in real-time.
Fault record: Buffer the last 100 fault events for easy troubleshooting.
compatibility:
Specially designed for S7-1200 PLC, compatible with CPU 1211C, 1212C, 1214C and other models.
Support collaborative work with signal modules and communication modules to build a complete control system.
Parameter specifications
Input voltage range AC 85V~264V (automatic switching)
Output voltage 24V DC
Output current 2.5A (maximum)
Output power 60W
Operating frequency 47Hz~63Hz
Protection level IP20
Certification standards CE and RoHS
Working temperature range: 0 ℃~60 ℃
Application scenarios:
Industrial automation: provides stable power supply for PLCs, sensors, actuators, etc., suitable for fields such as mechanical manufacturing and process control.
Building automation: Power supply for lighting, air conditioning, and other equipment in building control systems.
Power monitoring: As a distributed power module, it supports power supply to remote I/O devices.
