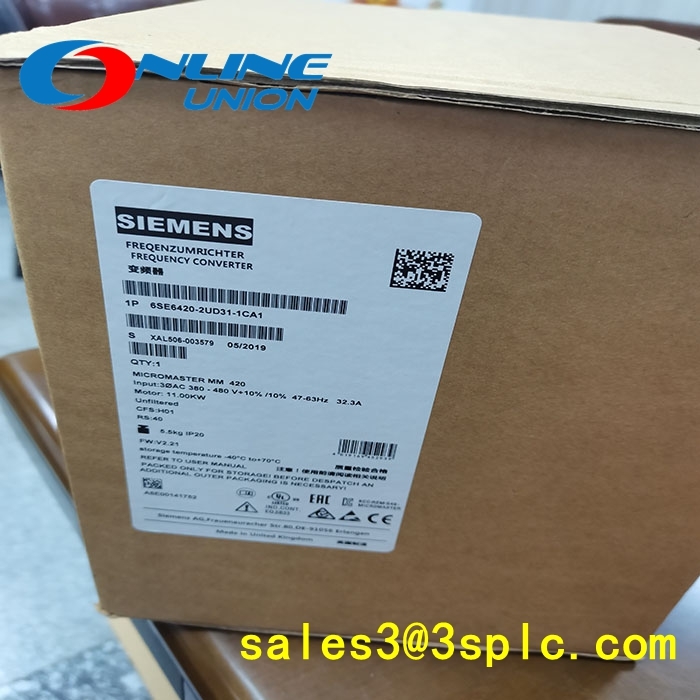

6SE6420-2UD31-1CA1 Module
6SE6420-2UD31-1CA1 is a three-phase frequency converter in the Siemens MICROMASTER 420 (MM420) series, designed specifically for industrial variable speed drives and suitable for precise speed control of equipment such as pumps, fans, conveyors, and machine tools. The product model is 6SE6420-2UD31-1CA1, designed without built-in filters. The input voltage range is three-phase 380-480V AC (± 10%), the frequency is 47-63Hz, the rated output power is 11kW (constant torque), the overload capacity is 150% and can last for 60 seconds, the rated input current is 32.3A, and the output current is 26.0A. Its physical dimensions are 185mm high, 245mm wide, and 195mm deep (excluding options), with a weight of 5.0kg, a protection level of IP20, and an environmental temperature adaptation range of -10 ℃ to+50 ℃. It is suitable for harsh industrial environments.
This frequency converter supports USS and MODBUS RTU communication protocols and can be easily connected to PLC or other devices. It has V/f control and energy-saving mode, which can effectively optimize energy consumption. Its modular design allows for flexible configuration, suitable for various variable speed drive scenarios, and integrates multiple safety functions such as overload protection, short circuit protection, and motor overheating protection to ensure stable system operation.
Technical specifcations for 6SE6420-2UD31-1CA1
Product name and series: Siemens MICROMASTER 420 (MM420) series frequency converter, model 6SE6420-2UD31-1CA1.
Technical parameters:
Input voltage: three-phase 380-480V AC, voltage range ± 10%, frequency 47-63Hz.
Output power: 11kW (constant torque), overload capacity of 150% for 60 seconds.
Input/output current: rated input current 32.3A, rated output current 26.0A.
Protection level: IP20, suitable for industrial environments.
Physical dimensions: height 185mm, width 245mm, depth 195mm (excluding options), weight 5.0kg.
Functional features:
Modular design: supports flexible configuration and is suitable for various variable speed drive applications, such as pumps, fans, conveyors, etc.
Communication interface: Supports USS and MODBUS RTU protocols for easy connection with PLCs or other devices.
Control mode: V/f control, with energy-saving mode, can optimize energy consumption.
Protection functions: overload protection, short circuit protection, motor overheating protection, etc., ensuring system safety.
Application scenarios:
Widely used in fields such as mechanical manufacturing, process control, and building automation, it is suitable for situations that require precise speed regulation and energy-saving control.
Especially suitable for driving and controlling equipment such as pumps, fans, and conveyor belts.
Market information:
Supplier: Provided by authorized agents of Siemens (such as Shanghai Liyue Automation Equipment Co., Ltd., Beijing Hengrui Hongsheng), offering original authentic products and technical support.
Price range: The reference price may vary due to differences in power and configuration, please consult the supplier for specific details.
Other information:
Operation panel: needs to be ordered separately, such as BOP basic operation panel (model 6SE6400-0BP00-0AA1).
Installation method: Supports wall mounted or through wall installation to meet different space requirements.
