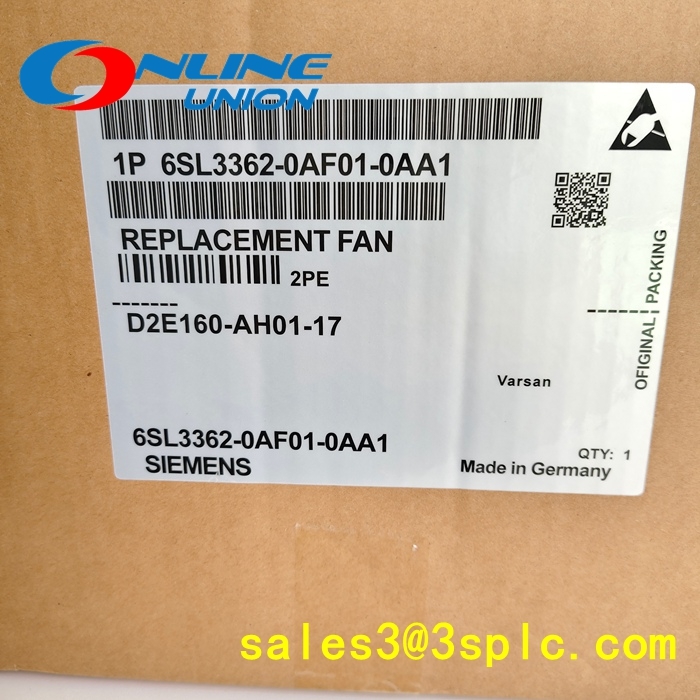

6SL3362-0AF01-0AA1 Module
6SL3362-0AF01-0AA1 is a three-phase backup fan in the Siemens SINAMICS series, designed specifically for cooling electrical cabinets. It is suitable for scenarios that require high dynamic response, such as machine tools, printing, textiles, packaging, and automated production lines. The product model is 6SL3362-0AF01-0AA1, which adopts a radial design. The input voltage range is three-phase 380-480V AC (± 10%), frequency is 50/60Hz, impeller diameter is 160mm, motor speed is 1850 revolutions per minute, working current is 1.80A, input power is 655W, maximum air volume can reach 1195 cubic meters per hour, and noise index is 64 decibels. Its physical dimensions are compact and easy to integrate into electrical cabinets, with a protection level of IP20, a working temperature range of -25 ℃ to 40 ℃, a maximum wind pressure of 200Pa to 725Pa, and an expected lifespan of 35000 hours for L10 at 25 ℃. This fan supports outgoing lines from the fan coil, with a lead length of 270mm and a exposed TR64 plug at the end for power connection. The wiring methods include blue power cord, black power common terminal, brown capacitor wire, and colored grounding wire. As a part of industrial equipment, it should have basic protection functions such as overcurrent, overvoltage, and undervoltage to ensure stable operation of the equipment.
Technical specifcations for 6SL3362-0AF01-0AA1
Product Name: Siemens SINAMICS Series Backup Fan
Model: 6SL3362-0AF01-0AA1
Application scenario: Electrical cabinet heat dissipation, suitable for industrial scenarios such as machine tools, printing, textiles, packaging, and automated production lines that require high dynamic response.
2, Physical characteristics
Impeller diameter: 160mm
Motor speed: 1850 revolutions per minute
Appearance material: plastic/galvanized sheet shell, metal impeller connected to metal outer rotor motor
Protection level: IP20
Size: Compact design, easy to integrate into electrical cabinets (compatible with standard electrical cabinet installation)
3, Electrical parameters
Working voltage: 230VAC (single-phase)
Voltage range: AC175V~235V
Working frequency: 50Hz
Working current: 1.80A
Input power: 655W
Starting capacitor: 10.0uF/450V
4, Performance parameters
Maximum air volume: 1195 cubic meters per hour (confirmed by most sources)
Noise index: 64 decibels
Maximum wind pressure: 200Pa to 725Pa
Service life: L10 expected to last for 35000 hours at 25 ℃
5, Environmental adaptability
Working temperature range: -25 ℃ to 40 ℃
Applicable altitude: ≤ 1000m (without power derating)
6, Wiring and installation
Lead method: 270mm long wire from the wind coil, with exposed TR64 plug at the end for power connection
Wiring instructions:
Blue line: power supply
Black line: Power common terminal
Brown line: capacitor
Color line: Grounding
7, Security protection
Basic protection functions: overcurrent, overvoltage, undervoltage protection
Certification standard: Complies with electromagnetic compatibility requirements for industrial environments and meets IE2 energy efficiency standards
8, Other information
Supporting equipment: Suitable for heat dissipation of Siemens frequency converters (such as SINAMICS S120 series), especially providing cooling for high-power components such as IGBTs, CPU boards, and driver boards.
This fan is designed specifically for industrial environments, with high reliability, long lifespan, and low noise characteristics, and is a key component to ensure the stable operation of the frequency converter.
