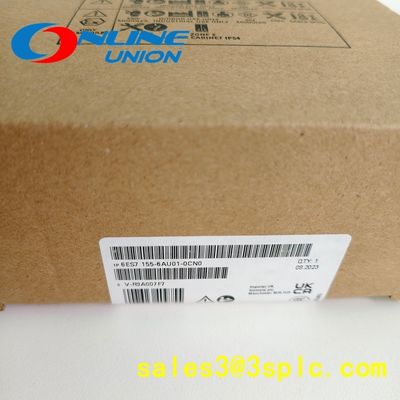

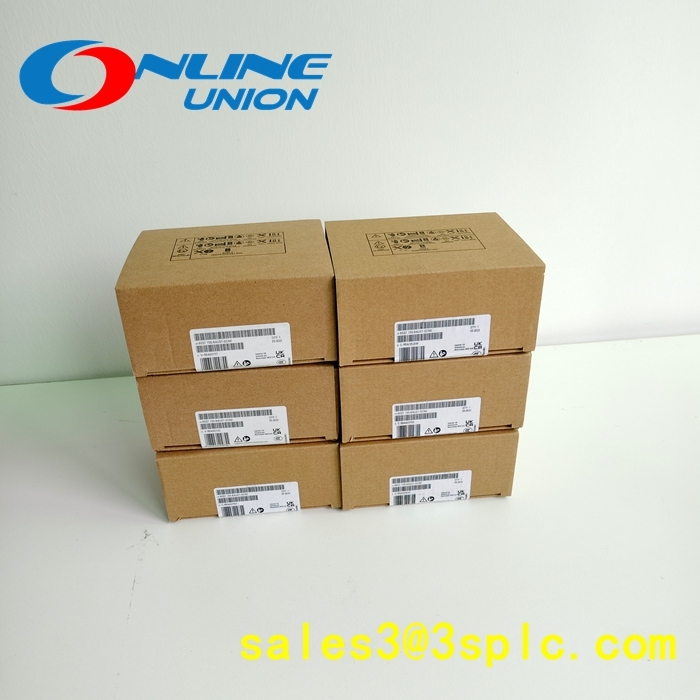

6SL7155-6AU01-0CN0 Module
6SL7155-6AU01-0CN0 is a high-performance interface module in the Siemens SINAMICS series, belonging to the SIMATIC ET200SP distributed I/O system, designed specifically for precise control and efficient communication in the field of industrial automation. The product model is 6SL7155-6AU01-0CN0 (marked as 6ES7155-6AU01-0CN0 in some materials, possibly due to differences in model labeling), adopting a compact design, with a protection level of IP20, supporting DIN rail installation, and suitable for standard electrical cabinet environments.
Its core function is to connect distributed I/O modules to the central controller through PROFINET or PROFIBUS protocol, supporting up to 64 I/O modules and 16 ET200AL modules for expansion, with advanced features such as S2 redundancy, multi hot swappable, and 0.25ms synchronization mode. The module has a built-in 24V DC power interface, with an input voltage range of 19.2V~28.8V, a maximum input current of 700mA, and a typical power consumption of 2.4W, ensuring stable power supply.
This interface module supports PROFINET IO Device protocol and Open IE communication, is compatible with PROFINET MRP, and provides diagnostic LED indicators (ERROR, MAINT, RUN, PWR) for real-time monitoring of status. The wiring adopts direct insertion terminals, simplifies the wiring process, supports one handed operation, and improves maintenance efficiency. Programming configuration can be completed through STEP 7 TIA Portal (V15.1 and above) or GSD files, integrating server modules and compatible with multiple bus adapters (such as BA 2 × RJ45, BA 2 × FC, etc.) to meet the needs of different industrial scenarios.
Technical specifcations for 6SL7155-6AU01-0CN0
Product Name: Siemens SINAMICS Interface Module
Model: 6SL7155-6AU01-0CN0 (marked as 6ES7155-6AU01-0CN0 in some materials, possibly due to differences in model labeling)
Series: SIMATIC ET200SP
Application scenario: Suitable for distributed I/O systems in the field of industrial automation, widely used in scenarios requiring high dynamic response such as machine tools, printing, textiles, packaging, and automated production lines, supporting PROFINET and PROFIBUS communication protocols.
Physical characteristics:
Protection level: IP20
Installation method: DIN rail installation
Size: Compact design (specific size not specified, but suitable for standard electrical cabinet installation)
Electrical parameters:
Input voltage: 24V DC (allowable range 19.2V~28.8V)
Input current: maximum 700mA, maximum starting current 4.5A
Power consumption: typical 2.4W
Performance parameters:
Interface module type: PROFINET IM 155-6PN/2 high-performance type
Number of supported modules: up to 64 I/O modules and 16 ET 200AL modules
Data transmission: Supports S2 redundancy, multi hot swappable, synchronous mode, 0.25ms isochronous mode
Communication protocol: PROFINET IO Device, supports Open IE communication and media redundancy (PROFINET MRP)
Environmental adaptability:
Working temperature: 0~45 ℃ (specific temperature range not specified, but should comply with industrial environmental standards)
Relative humidity:<90% (no condensation)
Other features:
Diagnostic display: Provides diagnostic LED indicators for error (ERROR and MAINT), running status (RUN), and power status (PWR)
Wiring method: Supports direct insertion terminals, saves wiring space, can be wired with one hand without tools
Programming configuration: can be configured through STEP 7 TIA Portal or GSD files, supporting STEP 7 V15.1 and above versions
