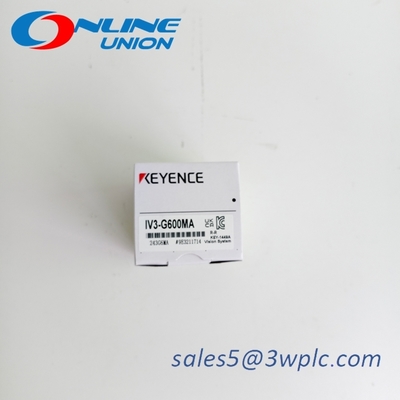

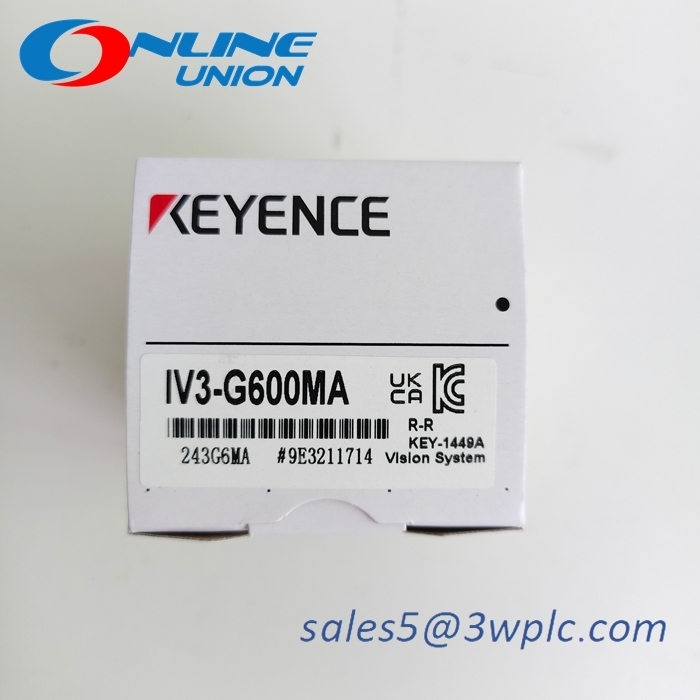

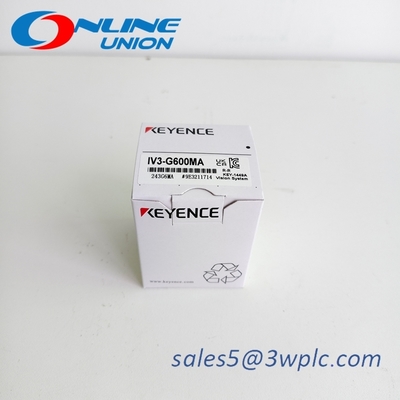

KEYENCE IV3-G600MA Split, autofocus, wide-view smart camera sensor head
Product Description: KEYENCE IV3-G600MA
The KEYENCE IV3-G600MA is a remote smart camera sensor head designed for wide-field, high-precision detection.
Technical Specifications:
| Category |
Specification |
| Model |
IV3-G600MA |
| Type |
Remote Smart Camera / Wide-Field / Monochrome Autofocus |
| Installation Distance |
Minimum 50 mm (remove polarizing filter for distances >3 m) |
| Field of View |
- 50 mm: 51 (H) × 38 (V) mm<br>- 3000 mm: 2730 (H) × 2044 (V) mm |
| Image Sensor |
- Type: 1/2.9-inch monochrome CMOS<br>- Resolution: 1280 (H) × 960 (V) pixels |
| Focus Adjustment |
Automatic (adjustable during installation; fixed during operation) |
| Exposure Time |
12 µs to 10 ms (max 6.25 ms with AI lighting unit) |
| Lighting |
- Source: Infrared LED<br>- Lighting Mode: Pulse lighting |
| Environmental Resistance |
- IP67 rating (excluding polarizing filters/dome lighting)<br>- Operating Temp: 0°C to +50°C (no freezing) |
| Vibration Resistance |
10–55 Hz, 1.5 mm double amplitude, 2 hours per X/Y/Z axis |
| Shock Resistance |
500 m/s², 3 impacts per 6 directions (excluding dome lighting accessories) |
| Communication Interface |
Modbus (select configurations) |
| Weight |
- ~75 g (without AI lighting unit)<br>- ~225 g (with AI lighting unit) |
| Materials |
- Housing: Zinc die-cast<br>- Front cover: Acrylic resin<br>- Indicator lens: TPU |
| Power Input |
- Voltage: 24 V DC<br>- Input Type: Voltage/no-voltage input (max 30 V) |
| Storage & Capacity |
- Programs: 128 (SD card) / 32 (no SD card)<br>- Image history: 100 images |
| Additional Features |
Digital zoom, HDR, high gain, AI imaging, multi-tool analysis |
Features:
Wide Field of View:
Supports detection from 50 mm to 3000 mm installation distance, with a maximum field of view of 2730 (H) × 2044 (V) mm at 3000 mm.
Ideal for inspecting large objects or areas (e.g., automotive components, metal sheets).
Autofocus & High-Resolution Imaging:
Equipped with a 1/2.9-inch monochrome CMOS sensor and automatic focus adjustment during installation.
1280 (H) × 960 (V) pixels resolution, combined with infrared LED illumination and pulse lighting technology for stable image capture.
High-Speed Processing:
Up to 886 frames per second (FPS) (depending on configuration).
Supports digital zoom (×2, ×4) and HDR mode for challenging lighting conditions.
Environmental Durability:
IP67 rating (excluding polarizing filters or dome lighting accessories).
Operates in temperatures 0°C to +50°C (no freezing).
Flexible Integration:
Modbus communication interface for seamless integration with PLCs or control systems.
Supports data storage via SD card/FTP/SFTP servers (formats: BMP/JPEG/IV3P/TXT).
Advanced Analytical Tools:
Built-in tools for contour masking, shielding, color extraction, and AI-based image recognition.
Real-time monitoring (histograms, processing time, count statistics).
Applications:
Industrial Automation:
Surface defect detection (e.g., metal plates, coatings).
Assembly alignment (e.g., automotive parts, PCB boards).
Quality Control:
Label/print inspection in packaging.
Battery electrode alignment.
Specialized Industries:
Solar panel edge defect detection.
Large-scale dimensional measurement.
Notes
Installation Guidelines:
Remove the polarizing filter for installation distances >3 m.
For ambient temperatures >40°C, ensure the housing temperature does not exceed 65°C (use forced air cooling if needed).
Compatibility:
Requires KEYENCE DL series communication modules (e.g., USB/Ethernet) for remote data acquisition.
Optional AI lighting units (e.g., IV2-GD05/IV2-GD10) available.
Maintenance:
Clean the lens and IR LED regularly to prevent dust interference.
Use anti-vibration mounts in high-shock environments.
