KEYENCE PR-FB30N3 IP67-Rated Long-Range Retro-Reflective Photoelectric Sensor

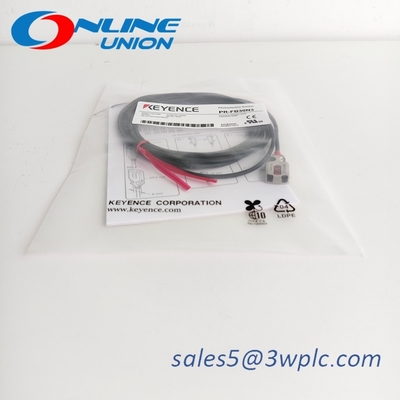

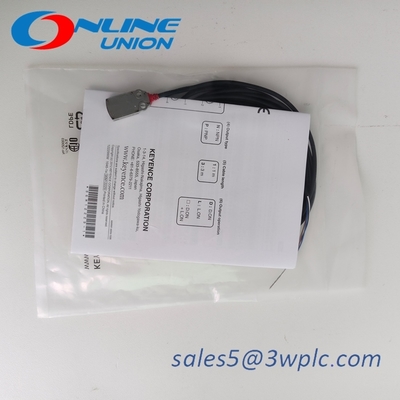

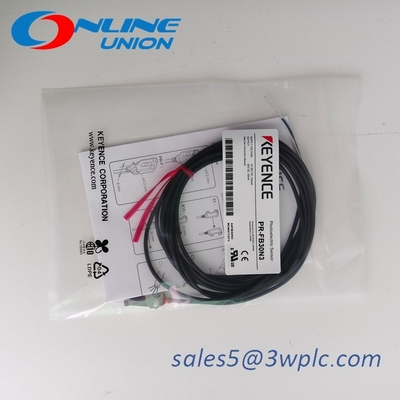

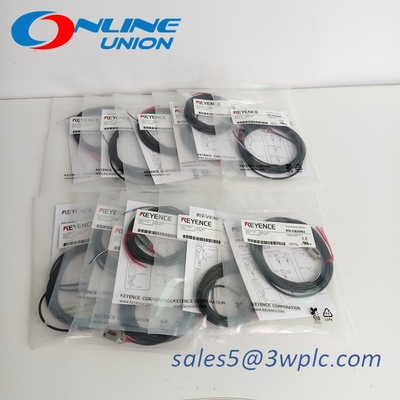

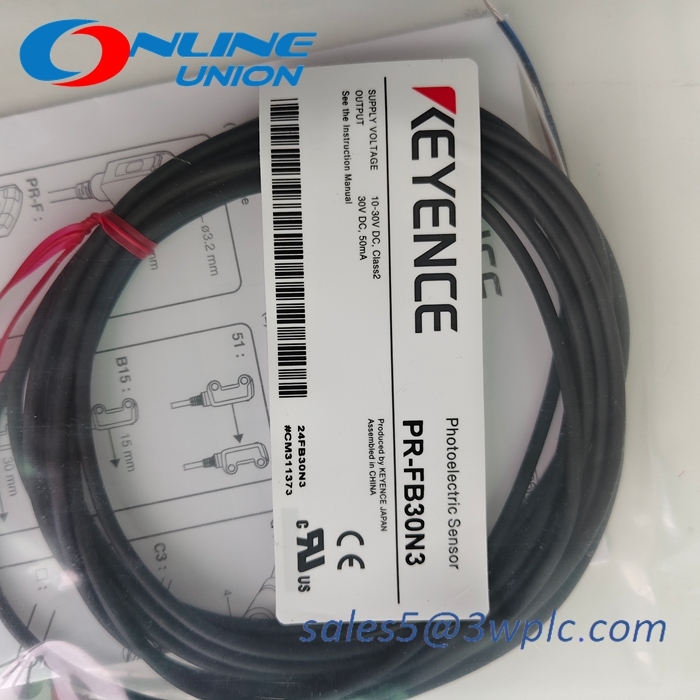

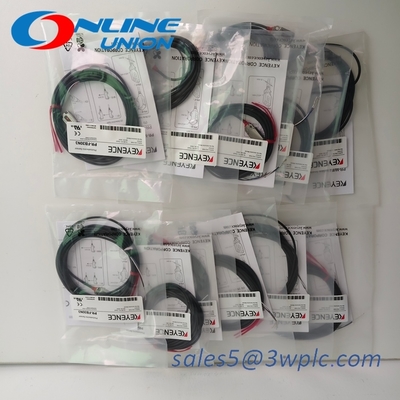

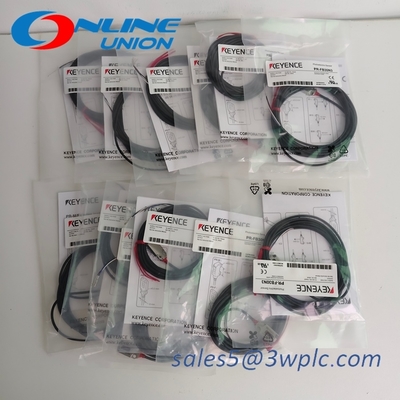

Product Description: KEYENCE PR-FB30N3
The KEYENCE PR-FB30N3 is a compact retro-reflective photoelectric sensor designed for industrial automation applications. It detects objects by measuring the reflection of an infrared light beam from a dedicated reflector, enabling non-contact detection of presence, position, or count of targets. This sensor is widely used in manufacturing lines, packaging machines, logistics sorting systems, and safety monitoring applications.
Technical Specifications:
| Category |
Specification |
| Model |
PR-FB30N3 |
| Sensor Type |
Retro-Reflective Photoelectric Sensor |
| Detection Range |
Up to 30 meters (with dedicated reflector); may support diffuse mode (no reflector) with reduced range. |
| Light Source |
Infrared LED (850 nm wavelength) |
| Response Time |
High-Speed Mode: 1 ms or faster; Standard Mode: 5–10 ms |
| Output Type |
NPN/PNP selectable output with NO/NC switching |
| Protection Rating |
IP67 (dustproof and waterproof, suitable for harsh industrial environments) |
| Operating Voltage |
DC 12–24 V (standard industrial power supply compatibility) |
| Current Consumption |
Approx. 30 mA (no-load condition) |
| Environmental Adaptability |
- Temperature: -25°C to +55°C (non-freezing)<br>- Humidity: 35%–85% RH (non-condensing) |
| Housing Material |
Durable plastic (e.g., polycarbonate) or metal (varies by model) |
| Interference Resistance |
Immune to ambient light (sunlight, incandescent lamps) and vibration-resistant |
| Mounting Method |
Panel mount or bracket-fixed design |
| Certifications |
CE, UL, RoHS compliant |
Features:
Long Detection Range:
Reliable detection up to 30 meters, ideal for large-scale machinery or remote monitoring.
High Reliability:
IP67 rating ensures stable operation in dusty, oily, or wet environments.
Flexible Output Configuration:
NPN/PNP dual-polarity output compatible with PLCs and control systems.
Anti-Environmental Interference:
Built-in optical filtering minimizes false triggers from external light sources (e.g., sunlight, fluorescent lamps).
Fast Response:
Millisecond-level response time supports high-speed production lines (e.g., packaging, assembly).
Applications:
Industrial Automation:
Object counting on conveyors; robot pick-and-place positioning.
Logistics Sorting:
Parcel detection, automated sorting system activation.
Safety Monitoring:
Perimeter intrusion detection, door/gate status monitoring.
Packaging Machinery:
Box sealing verification, label alignment detection.
Notes:
Reflector Compatibility:
Requires a dedicated reflector for optimal beam return stability.
Ambient Light Avoidance:
Shield from direct exposure to strong light sources (e.g., sunlight, halogen lamps).
Wiring Isolation:
Separate power and signal lines to prevent electromagnetic interference (EMI).
Our Services:
1.All our products are new and orginal, and of good quality
2.Our prices are very competitive.
3.We have a large quantity in stock, so we could help the customers to get the components which are dificult to get.
4.All inquiries will be valued and will reply in 24.
Packing & Delivery:
1.100% brand New and Original Factory Seal!
2.Warranty:1 year
3.Package: Original packing with cartons.
4.Delivery time: Shipped in 3-7 days after payment
5.All the goods will be tested before shipment
