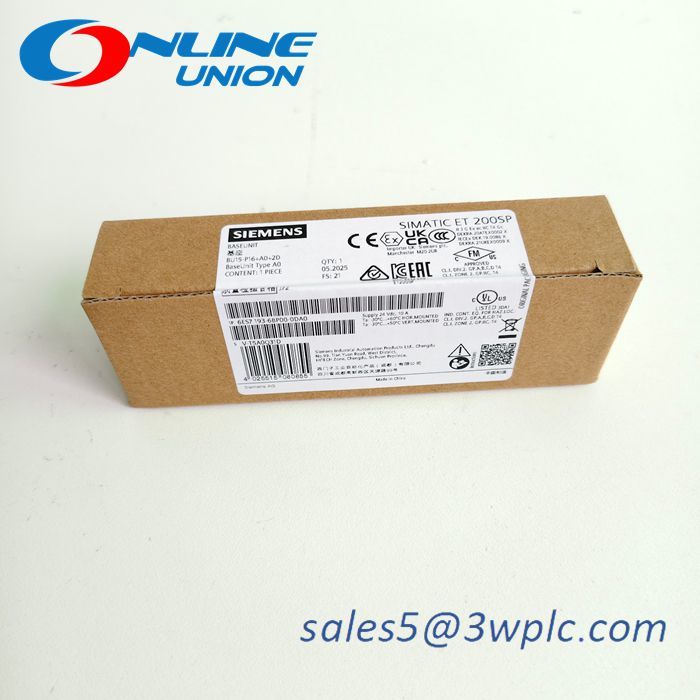

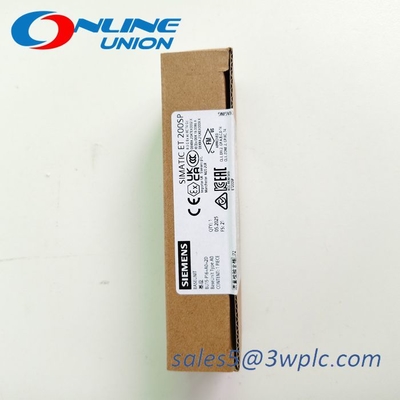

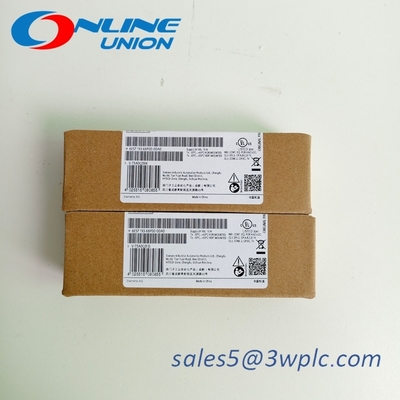

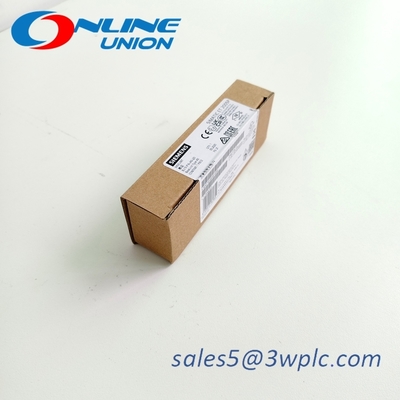

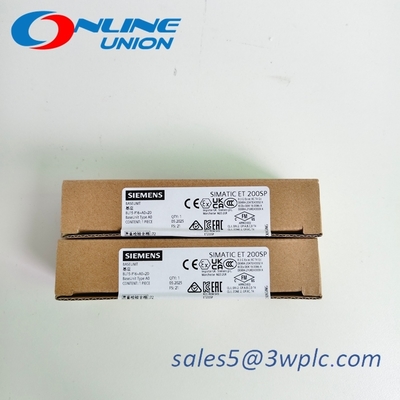

SIEMENS 6ES7193-6BP00-0DA0 Bus Adapter Module
Product Description:
The 6ES7193-6BP00-0DA0 is a bus adapter module from Siemens' SIMATIC ET 200 series, designed for industrial automation systems. It is commonly used in distributed I/O systems to enable communication between programmable logic controllers (PLCs) and field devices via PROFIBUS or PROFINET protocols. Below is a detailed description and technical specifications based on Siemens' standard product documentation.
Technical Specifications:
| Category |
Specification |
| Model Number |
6ES7193-6BP00-0DA0 |
| Type |
PROFIBUS DP Bus Adapter Module |
| Communication Interface |
- PROFIBUS DP Master/Slave Interface<br>- Baud Rate: Up to 12 Mbit/s |
| Power Supply |
- 24V DC via backplane bus |
| Current Consumption |
- Approx. 150 mA at 5V DC (from backplane) |
| Physical Design |
- Module Width: 25 mm<br>- DIN rail mounting (standard for ET 200 systems) |
| Operating Temperature |
- 0°C to 60°C (standard industrial range) |
| Storage Temperature |
- -40°C to +70°C |
| Humidity |
- Max 95% RH (non-condensing) |
| Standards Compliance |
- EN 61131-2, IEC 61000-6-2 (EMC Immunity), UL认证 |
| Dimensions |
- 25 mm (W) × 90 mm (H) × 60 mm (D) |
| Weight |
- Approx. 80 grams |
Key Features:
|
Feature
|
Description
|
|
Communication Protocol
|
- PROFIBUS DP (Decentralized Periphery) for high-speed fieldbus communication.
|
|
Compatibility
|
- Works with SIMATIC S7-300/400 PLCs and ET 200 distributed I/O systems.
|
|
Hot-Swapping Support
|
- Allows module replacement without shutting down the system (requires ET 200M).
|
|
Diagnostics
|
- Integrated LED indicators for status and error monitoring.
|
|
Power Supply
|
- 24V DC (standard industrial voltage) via backplane bus.
|
|
Environmental Durability
|
- Designed for industrial environments (wide temperature range, vibration resistance).
|
Applications:
Industrial Automation Systems:
Connects distributed I/O modules (e.g., digital/analog modules, motor starters) to a central PLC in production lines, assembly systems, or process plants.
PROFIBUS Networks:
Used in factories for real-time communication between PLCs and field devices (sensors, actuators).
Modular Control Cabinets:
Integrated into ET 200S/ET 200M systems for flexible and scalable automation solutions.
High-Speed Machinery:
Enables fast data exchange in applications requiring rapid response times (e.g., packaging machines, conveyor systems).
Notes:
Model Verification:
Confirm exact specifications with Siemens' official documentation (e.g., datasheet, manual).
Compatibility:
Ensure compatibility with the PLC and distributed I/O system (e.g., ET 200S vs. ET 200M).
Firmware Updates:
Use Siemens' SIMATIC Manager or TIA Portal for firmware upgrades.
Our Services:
1.All our products are new and orginal, and of good quality
2.Our prices are very competitive.
3.We have a large quantity in stock, so we could help the customers to get the components which are dificult to get.
4.All inquiries will be valued and will reply in 24.
Packing & Delivery:
1.100% brand New and Original Factory Seal!
2.Warranty:1 year
3.Package: Original packing with cartons.
4.Delivery time: Shipped in 3-7 days after payment
5.All the goods will be tested before shipment
