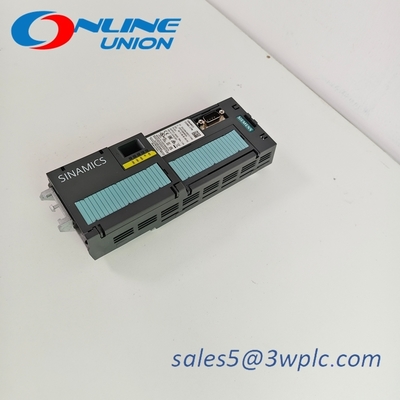

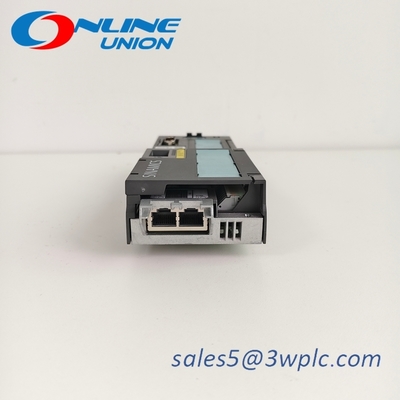

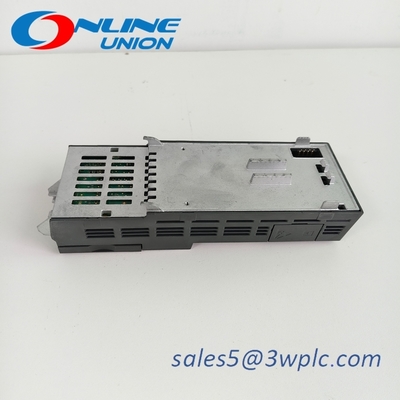

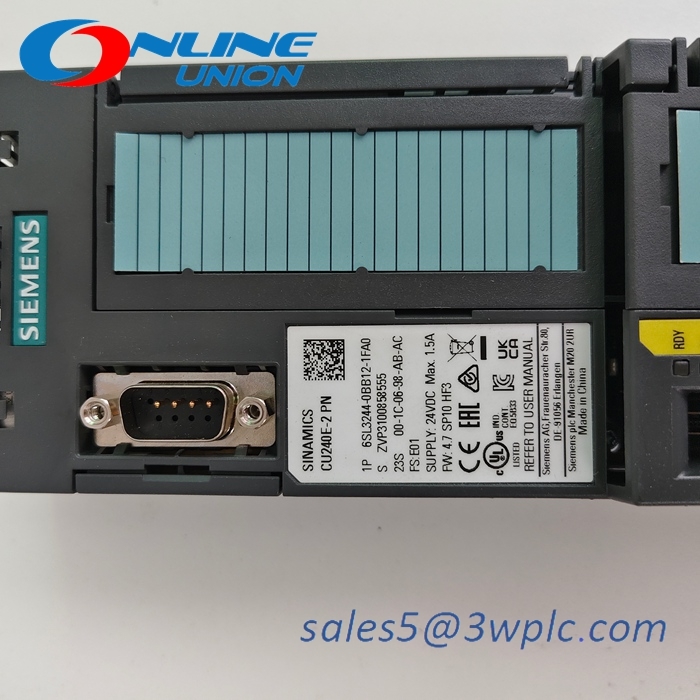

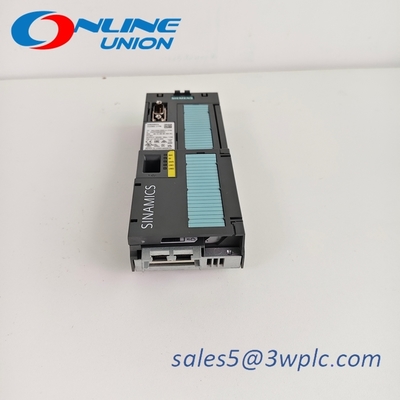

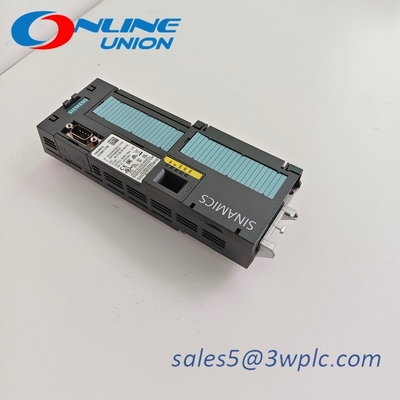

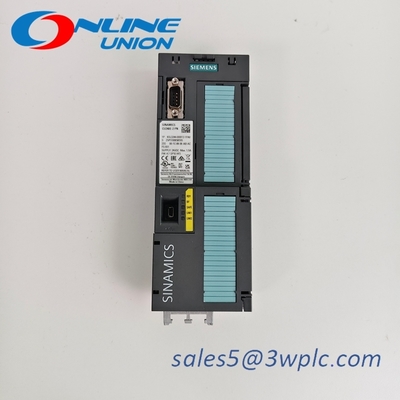

SIEMENS 6SL3244-0BB12-1FA0 G120 I/O Expansion Module
Product Description:
The 6SL3244-0BB12-1FA0 is an I/O Expansion Module for Siemens' SINAMICS G120 series of industrial inverters. It enhances the control and signal processing capabilities of the drive system, enabling integration with complex automation environments.
Technical Specifications:
| Category |
Technical Parameters |
| Model |
6SL3244-0BB12-1FA0 |
| Module Type |
Mixed I/O Expansion Module (Digital + Analog) |
| Digital Inputs (DI) |
16 channels (24V DC, isolated) |
| Digital Outputs (DO) |
8 channels (24V DC, 0.5A max. per channel) |
| Analog Inputs (AI) |
4 channels (0–10V, ±10V, or 4–20mA selectable) |
| Analog Outputs (AO) |
2 channels (0–10V or 4–20mA selectable) |
| Communication |
- PROFINET IO interface (supports RT/IRT)<br>- PROFIBUS DP interface (optional) |
| Power Supply |
24V DC (standard industrial control voltage) |
| Protection Features |
- Overload protection for outputs<br>- Short-circuit protection |
| Environmental Requirements |
- Operating temperature: 0°C–60°C<br>- Protection rating: IP20 (requires cabinet installation) |
| Installation |
DIN rail mounting (standard industrial control cabinet compatibility) |
| Compatibility |
Works with SINAMICS G120 control units (e.g., CU240E, CU250S) |
Features and Advantages:
Enhanced Control Capabilities
Flexible I/O Configuration: Supports both digital and analog signals for diverse industrial applications.
High-Speed Counting/Pulse Output: Enables precise positioning control (e.g., servo motors, conveyors).
Efficient Communication
PROFINET/PROFIBUS Integration: Ensures seamless connectivity with PLCs (e.g., SIMATIC S7-1200/1500) and SCADA systems.
TIA Portal Compatibility: Simplifies parameterization, diagnostics, and system integration.
Industrial-Grade Reliability
Wide operating temperature range (0°C–60°C) and high immunity to electromagnetic interference (EMI).
Built-in protection against short circuits and overloads for long-term stability.
Applications
Multi-Axis Automation: Synchronizes multiple G120 drives in packaging machines or robotic arms.
Process Control: Monitors sensors (e.g., pressure, temperature) and adjusts motor speeds dynamically.
Building Automation: Controls HVAC systems, pumps, and fans with analog signal feedback.
Application Examples:
Automotive Manufacturing:
Expands I/O for multi-axis conveyor systems synchronized with robotic assembly lines.
Food and Beverage:
Monitors temperature sensors in mixers and adjusts motor speeds via analog outputs.
Water Treatment:
Integrates pump drives with SCADA systems via PROFINET for remote monitoring.
Installation and Configuration:
Installation Requirements:
Mount in a clean, well-ventilated control cabinet to avoid dust and humidity.
Connect to the G120 inverter via DRIVE-CLiQ or internal bus interface.
Commissioning Tools:
Use SINAMICS Drive ES or STARTER software for configuration and diagnostics.
Wiring Example:
DI: Connect to emergency stop buttons, limit switches, or proximity sensors.
AI: Connect to pressure transducers, temperature sensors, or flow meters.
PROFINET: Link to PLC for real-time control and data logging.
Notes:
Compatibility Verification:
Ensure firmware version matches the G120 control unit (e.g., CU240E).
Communication Setup:
Configure PROFINET device names and IP addresses via TIA Portal.
Thermal Management:
Clean control cabinet filters regularly to prevent overheating.
