6ES7331-1KF01-0AB0 SIEMENS SIMATIC S7-300, ANALOG INPUT SM 331

SIEMENS 6ES7331-1KF01-0AB0 SIMATIC S7-300, ANALOG INPUT SM 331 :

SIMATIC S7-300, ANALOG INPUT SM 331, OPTICALLY ISOLATED, 8 AI, 13 BIT RESOLUTION, U/I/RESISTANCE/PT100, NI100, NI1000, LG-NI1000, 66 MS MODULE UPDATE, 1 X 40 PIN.

The 6ES7331-1KF01-0AB0 is an SM 331 analog input module from Siemens' SIMATIC S7-300 series, designed for precise conversion of analog signals into digital data for industrial automation. This module features 8 isolated analog input channels with 13-bit resolution, supporting both voltage (0–10 V) and current (4–20 mA) signals. It integrates channel-to-channel and channel-to-backplane isolation to ensure signal integrity and reduce interference. The module is housed in a compact form factor (40 mm width) and connects via a 20-pin front connector, suitable for central or distributed configurations in control cabinets. It supports diagnostic LEDs for channel status monitoring and uses STEP 7 software for parameterization, including signal range and data format adjustments.

Technical Specifications:

Product Series: SIMATIC S7-300 SM 331 Analog Input Module

Input Channels: 8 analog inputs (voltage/current selectable)

Resolution: 13 bits

Input Ranges:

Voltage: 0–10 V

Current: 4–20 mA

Response Time: ≤ 0.5 ms (typical)

Isolation: Channel-to-channel and channel-to-backplane isolation

Power Supply: 24 V DC (backplane-powered)

Sensor Power: 24 V DC, 900 mA output

Power Loss: 3 W (typical)

Connection: 20-pin front connector, shielded sensor wires (max. 320 m @ 125 kHz)

Diagnostic Features: Alarm reporting, non-isolated

Configuration: STEP 7 software for parameterization (input type, data format, transmission rate)

Environmental: -20°C to 60°C operating temperature, RoHS compliant

Physical Dimensions: 40 mm (W) × 125 mm (H) × 120 mm (D), 235 g weight

Protection: IP20 rating, conformal coating for harsh environments

Compliance: CE, UL, and RoHS standards

Application Areas: Process automation, machinery control, and data-intensive manufacturing tasks.

Packing & Delivery:

1)100% brand New and Original Factory Seal!

2)Warranty: 1 year

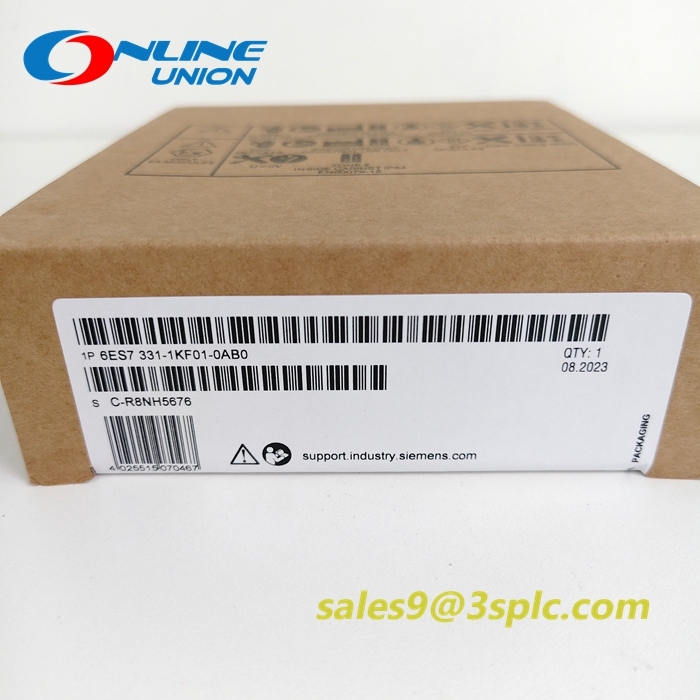

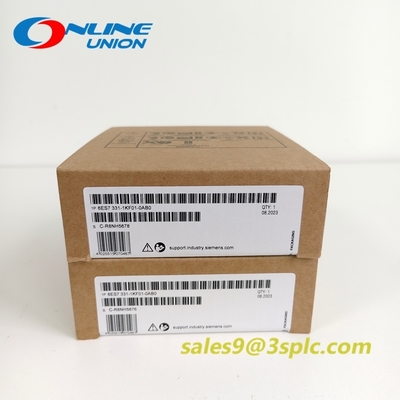

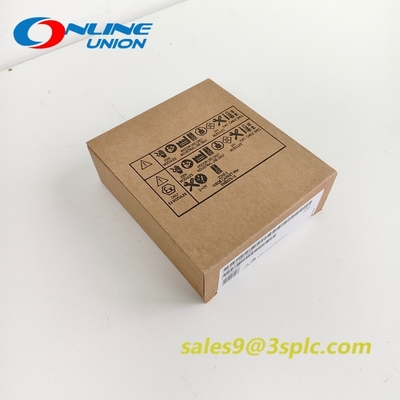

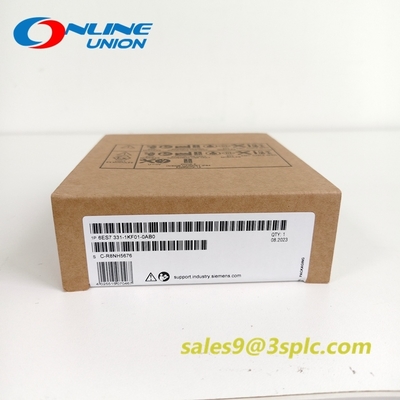

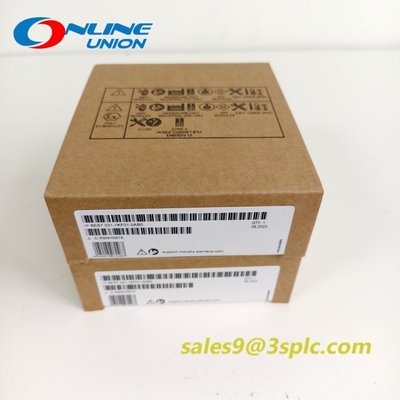

3)Package: Original packing with cartons.

4)Delivery time: Shipped in 3-7 days after payment

5) All the goods will be tested before shipment.
