Name: Omron PYF14A-E 14-Pin DIN Rail Relay Socket
Brand: Xiamen Online Union Technology Co., Ltd
SKU: PYF14A-E
Price: 99 USD
Availability: InStock

Home Products OMRON Parts

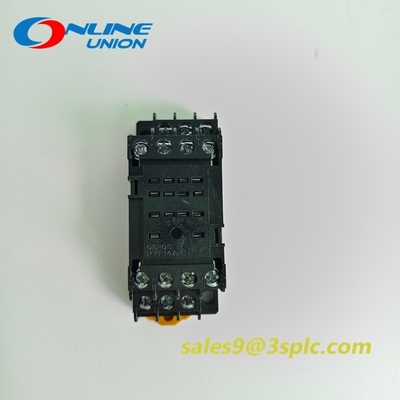

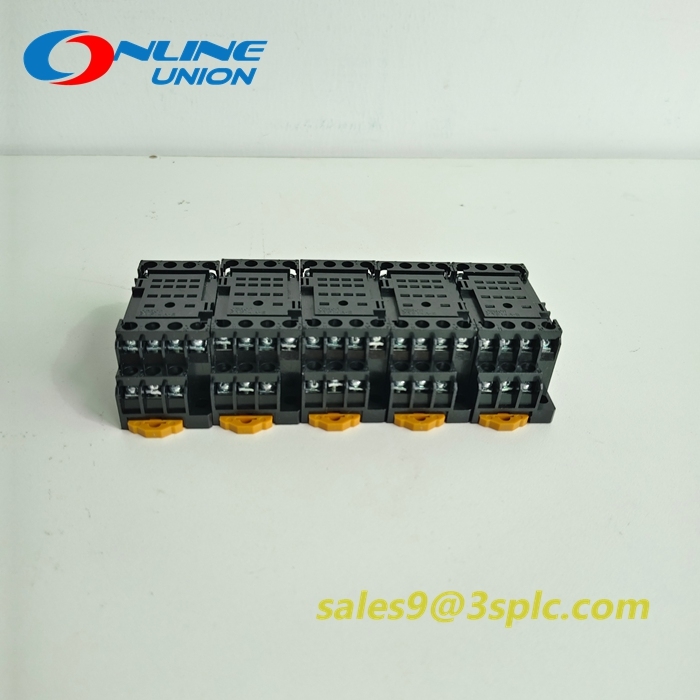

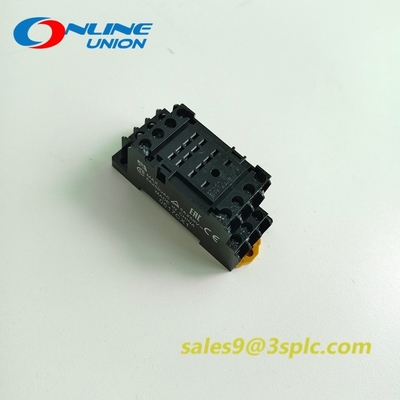

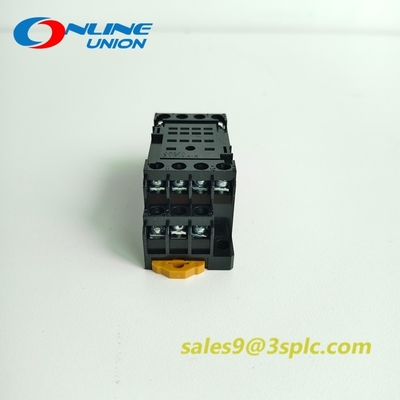

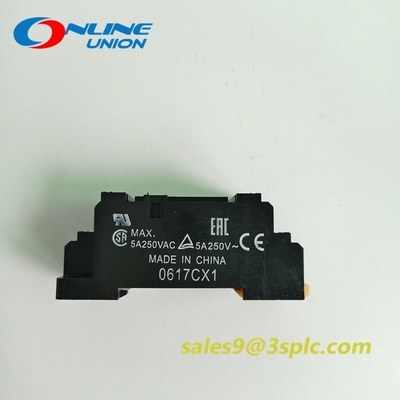

Omron PYF14A-E 14-Pin DIN Rail Relay Socket

Product Details:

Place of Origin:	Japan
Brand Name:	OMRON
Model Number:	PYF14A-E

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$99
Delivery Time:	In stock/1-3days
Payment Terms:	T/T
Supply Ability:	10

Contact Now

Detailed Product Description

Highlight:

Omron 14-pin DIN rail relay socket

Omron PYF14A-E relay socket

DIN rail relay socket with warranty

PYF14A-E OMRON 14-pin relay socket

Omron PYF14A-E 14-pin relay socket designed for DIN rail mounting, compatible with Omron MY series relays. Features screw terminals, finger-safe structure, and built-in safety protections. Ideal for industrial automation applications requiring secure and organized relay installation.

Technical Specifications

Pin Count: 14
Termination: Screw terminals
Rated Voltage: 250V AC
Rated Current: 5A
Insulation Resistance: ≥1000 MΩ (DC500V test)
Dielectric Strength:
- Between same-polarity contacts: AC1000V for 1 minute
- Between coil and contacts: AC4000V for 1 minute
Operating Temperature: -55°C to 70°C
Protection: IP20 (front panel), RoHS compliant
Material: PA (polyamide), heat-resistant
Weight: ~50g
Safety: Finger-safe design, terminal cover for electric shock prevention
Compatibility: Works with MY4/MY2K relays
Installation: DIN rail or screw mounting
Included Accessories: Relay removal tool
