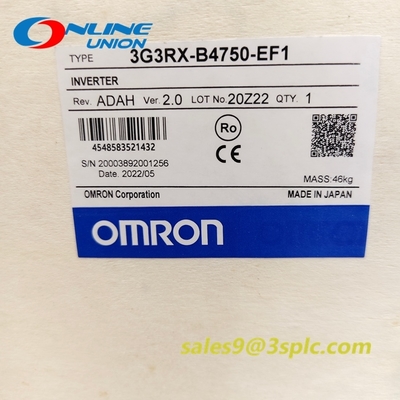

Omron 3G3RX-B4750-E1F 75kW AC Drive with Vector Control

Product Details:

Place of Origin:	Japan
Brand Name:	OMRON
Model Number:	3G3RX-B4750-E1F

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$99
Delivery Time:	In stock/1-3days
Payment Terms:	T/T
Supply Ability:	10

Contact Now

Detailed Product Description

Highlight:

Omron 75kW AC drive

vector control AC drive

Omron 3G3RX-B4750-E1F drive

3G3RX-B4750-E1F OMRON High-performance AC drive

High-performance AC drive designed for precise motor control in industrial applications. Part of Omron's 3G3RX series, this model combines advanced vector control, high starting torque, and energy-saving features. It supports both open-loop and closed-loop control modes, making it suitable for a wide range of machinery including pumps, fans, and conveyors.

Technical Specifications

Power Rating: 75 kW (continuous output), 90 kW (light load)

Input Voltage: 3-phase 380-480V AC (50/60 Hz)

Output Current: 112 A (at 480V)

Control Modes: Sensorless vector control, V/F control, closed-loop vector control

Starting Torque: 200% at 0.3 Hz (open-loop), 150% at 0 Hz (closed-loop)

Communication: Built-in RS-485 (Modbus), optional EtherCAT/EtherNet/IP

Protection: Overcurrent, overvoltage, undervoltage, overload, and short-circuit protection

Safety: Hardware-based emergency stop output (STO function)

Environmental Resistance: Operating temperature -10°C to 50°C, IP20 protection

Physical Dimensions: 370mm (W) × 250mm (H) × 248mm (D)

Weight: Approximately 29.9 kg

Certifications: RoHS compliant, CE, UL/cULus

Special Features

Built-in EMC filter

Micro-surge voltage suppression

Long-life capacitors/fans

Parameter copy function via digital operator
