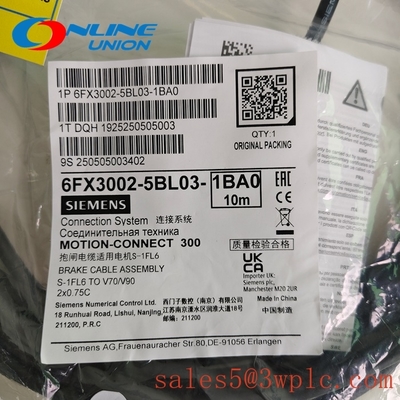

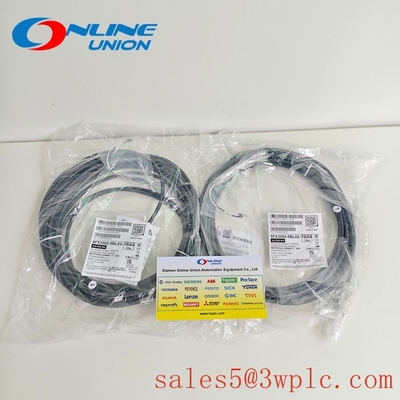

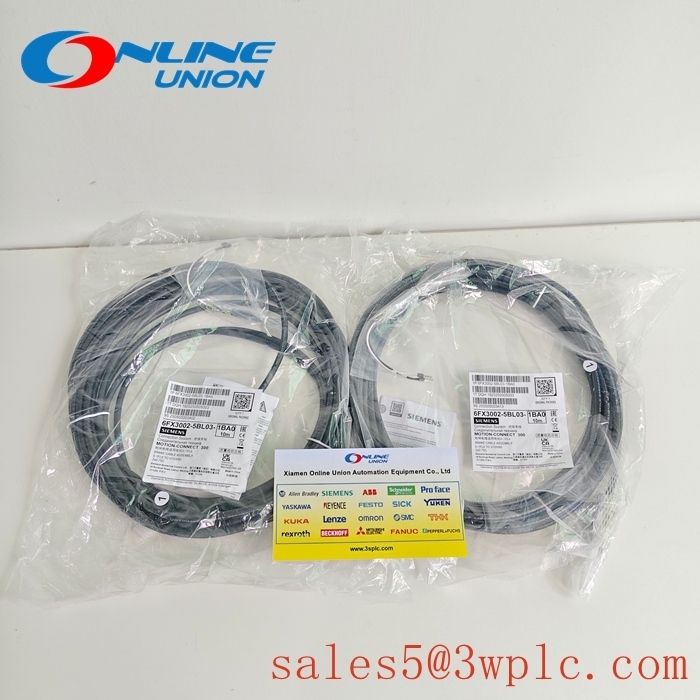

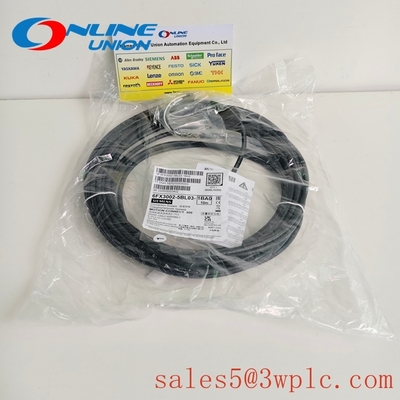

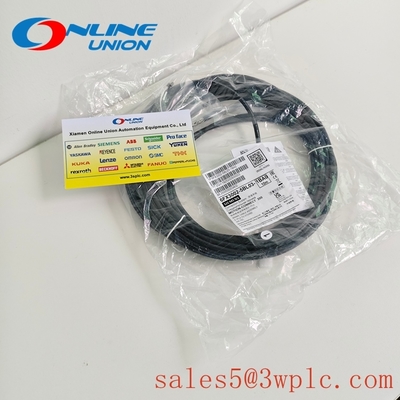

6FX3002-5BL03-1BA0 SIEMENS BRAKE CABLE PREASSEMBLED

SIEMENS 6FX3002-5BL03-1BA0 BRAKE CABLE PREASSEMBLED

Product Description:

The SIEMENS 6FX3002-5BL03-1BA0 is a high-performance motor cable specifically engineered for SINUMERIK and SIMODRIVE CNC systems. This specialized cable provides reliable power transmission and feedback signal communication between drive units and servo motors in precision motion control applications. Designed with Siemens' advanced cable technology, it ensures optimal electrical performance and mechanical durability in demanding industrial environments.

This motor cable features a sophisticated construction that integrates power conductors and encoder feedback lines within a single, robust cable assembly. The carefully engineered shielding configuration provides excellent protection against electromagnetic interference, ensuring accurate signal transmission even in electrically noisy environments. The cable's flexible design allows for continuous movement in dynamic applications while maintaining stable electrical characteristics. The oil-resistant and wear-resistant outer jacket offers additional protection against common industrial hazards, making it suitable for use in machine tools, robotics, and automated manufacturing systems.

The 6FX3002-5BL03-1BA0 is particularly designed for applications requiring precise motion control and reliable signal transmission. Its construction ensures compatibility with Siemens drive systems, providing optimized performance and extended service life. The color-coded conductors and clear markings simplify installation and reduce wiring errors during system commissioning and maintenance.

Technical Specifications:

Electrical Characteristics: The cable is rated for 600V operating voltage with a maximum test voltage of 2500V AC. The capacitance between cores is maximum 150pF/m, ensuring minimal signal distortion and cross-talk. The characteristic impedance is 100Ω ±15% for encoder lines. The insulation resistance is greater than 100MΩ/km at 500V DC. The cable is designed for continuous operation at 90°C with maximum short-term temperature resistance up to 180°C.

Mechanical Specifications: The outer diameter of the cable is approximately 10.5mm. The minimum bending radius is 80mm for fixed installation and 120mm for flexible applications. The cable's weight is approximately 180kg/km. The tensile strength rating is 100N/mm², providing excellent mechanical durability. The cable is designed for vibration resistance up to 50Hz with amplitude of 1mm and shock resistance up to 100m/s².

Conductor Configuration: The cable features 3 power conductors with cross-sectional area of 1.5mm² for motor power transmission. Additionally, it includes 8 control wires with cross-sectional area of 0.5mm² for encoder feedback and control signals. All conductors are made of fine-stranded tinned copper for optimal flexibility and conductivity. The conductors are color-coded according to international standards for easy identification and installation.

Shielding and Protection: The cable features individual foil shielding for each pair of encoder lines plus an overall braided shield with coverage greater than 85%. The shielding effectiveness meets EMI/RFI requirements for industrial environments. The outer jacket is made of special PVC compound that is oil-resistant, acid-resistant, and alkali-resistant. The jacket material meets UL Style 20276 specifications and exhibits excellent resistance to abrasion and mechanical stress.

Environmental Specifications: The cable is rated for operation in temperature ranges from -5°C to +90°C for fixed installation and -15°C to +90°C for flexible applications. The cable is resistant to UV radiation and does not propagate flame according to IEC 60332-1. The smoke density meets IEC 61034-2 standards. The cable is halogen-free and complies with IEC 60754-2 for low corrosive gas emission, making it suitable for use in confined spaces.

Certifications and Standards: The cable meets CE requirements and complies with European directives. It is certified according to UL AWM Style 20276. The cable meets VDE 0285 standards and complies with IEC 60228 for conductor requirements. The construction follows Siemens internal specifications for drive system compatibility and performance.

Installation Requirements: The cable is designed for fixed installation in cable trays or conduits. For flexible applications, the cable should be installed with proper strain relief and cable guides. The recommended clamping force for cable fixation is 50-100N. The cable should be protected against sharp edges and excessive mechanical stress during installation. The minimum bending radius must be maintained during and after installation.

Compatibility: The cable is specifically designed for use with Siemens SINUMERIK 840D, 828D, and 802D systems. It is compatible with SIMODRIVE 611U and S120 drive systems. The cable is optimized for use with 1FK7 and 1FT6 series servo motors with absolute encoders and resolvers.

Safety Features: The cable meets category C2 fire performance according to EN 13501-6. The insulation and jacket materials are low-smoke and zero-halogen (LSZH) compliant. The cable is rated for 300V/500V according to IEC 60332-1 for flame retardancy. The construction provides protection against electrical shock and fire hazards.

Application Notes: This cable is ideal for use in CNC machine tools, industrial robots, and automated production lines where reliable power transmission and signal integrity are critical. The cable's design ensures minimal signal loss and interference, supporting high-precision motion control applications. The flexible construction allows for use in cable carriers and continuous flexing applications.

Disclaimer: This information is provided for reference purposes only. For complete specifications and installation guidelines, consult the official Siemens documentation. Installation must be performed by qualified personnel following all applicable safety regulations and local electrical codes. Specifications are subject to change without notice and may vary based on specific application requirements and environmental conditions.

FAQ & Contact:

Q: Are you a trading company or a manufacturer?

A: We are a trading company.

Q: What is your lead time?

A: It usually takes one to three days if we have it in stock. If the goods are not in stock, you need to negotiate.

Q: Does your company provide samples? Is it free or do you charge extra?

A: It depends on the goods you need and the quantity you order.

Q: What are your terms of payment?

A: 100%  T/T before shipping. If the quantity is large, we can negotiate.

Our Services:

1,All our products are new and original, and of good quality.

2,Our prices are very competitive.

3,We have a large quantity in stock, so we could help the customers to get the components which are difficult to get.

4,All inquiries will be valued and will reply in 24.

Packing & Delivery:

1)100% brand New and Original Factory Seal!

2)Warranty: 1 year

3)Package: Original packing with cartons.

4)Delivery time: Shipped in 3-7 days after payment

5) All the goods will be tested before shipment.
