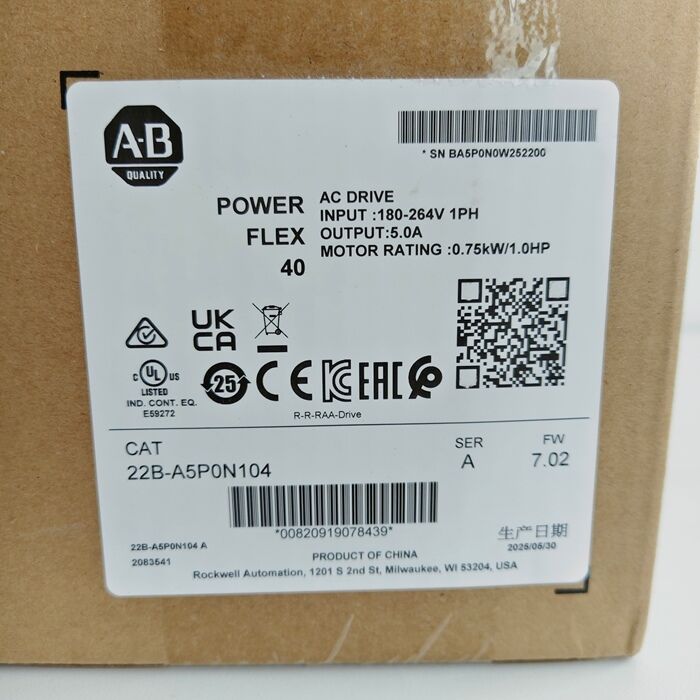

22B-A5P0N104 Allen-Bradley PowerFlex 40 AC Drive

The 22B-A5P0N104 is a compact, cost-effective AC drive from Allen-Bradley's PowerFlex 40 series, designed for precise speed control in applications such as fans, pumps, conveyors, and material handling systems. It integrates advanced features for flexibility, ease of use, and seamless network connectivity, making it ideal for both standalone and integrated automation setups.

• Model: 22B-A5P0N104
• Series: PowerFlex 40
• Power Rating: 0.75 kW (1 HP)
• Input Voltage: 200-240V AC, single-phase
• Output Current: 5.0 A
• Enclosure: IP20, NEMA/UL Type Open
• Control Interface: Integral keypad with LED display
• Communication: Embedded EtherNet/IP (optional dual-port card for ring topologies), Modbus RTU
• Safety: Built-in Safe Torque-Off (STO) function
• Mounting: Panel-mounted design for space-saving installation

• Flexible Integration: Supports EtherNet/IP for seamless connectivity with Logix controllers and industrial networks.
• Compact & Space-Efficient: IP20-rated enclosure suits tight spaces and light-duty environments.
• User-Friendly: Intuitive keypad and LED display simplify programming and monitoring.
• Safety Compliance: STO function enhances operator protection by cutting motor torque during emergencies.
• Energy-Efficient: Optimized for variable torque applications (e.g., fans, pumps) to reduce energy consumption.
• Global Certifications: Meets ISO9000, CE, and CCC standards for worldwide deployment.

• HVAC systems (fans, blowers)
• Water treatment (pump control)
• Material handling (conveyors, elevators)
• Light industrial machinery
• General-purpose speed control

• Datasheet: Download the technical datasheet for detailed electrical ratings and dimensions.
• User Manual: Access programming guides and troubleshooting tips.
• Support: Contact Allen-Bradley's global support team for technical assistance or warranty inquiries.
