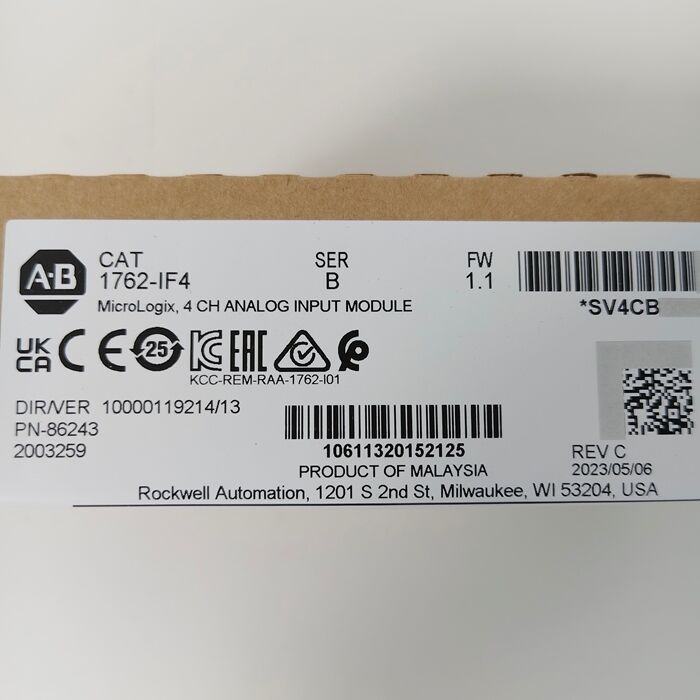

Name: 1762-IF4 Allen Bradley MicroLogix 4 Channel Analog Input Module
Brand: Xiamen Online Union Technology Co., Ltd
SKU: 1762-IF4
Price: 50.00 USD
Availability: InStock

Home > Products > Allen Bradley PLC >

1762-IF4 Allen Bradley MicroLogix 4 Channel Analog Input Module

Allen Bradley MicroLogix analog input module

4 channel PLC input module

MicroLogix analog module with warranty

Place of Origin:

USA

Brand Name:

Allen Bradley

Model Number:

1762-IF4

Request A Quote

Product Details

Resolution:

16-bit (including Sign Bit)

Sampling Rate:

1000Hz (1ms Per Channel)

Isolation Voltage:

1500V AC (channel-to-backplane)

Power Consumption:

Typical: 85mA @ 5V DC; Maximum: 120mA @ 5V DC

Installation:

DIN Rail Or Panel Mounting

Enclosure Rating:

IP20 (requires Control Cabinet Use)

Communication:

5-bus Interface (24–24V DC Power Input)

Highlight:

Allen Bradley MicroLogix analog input module

4 channel PLC input module

MicroLogix analog module with warranty

Payment & Shipping Terms

Minimum Order Quantity

Price

1-99$

Packaging Details

Brand New Original

Delivery Time

in stock / 1-3 work days

Payment Terms

T/T

Supply Ability

999

MPL-B320P-MJ74AA Allen Bradley Low Inertia AC Servo Motor

Get Best Price

2198-D057-ERS3 Allen Bradley Kinetix 5700 Dual Axis Servo Drive

Get Best Price

2198-D020-ERS3 Allen Bradley Kinetix 5700 Dual Axis Servo Drive

Get Best Price

1794-IA16 Allen Bradley Flex I/O AC Input Module

Get Best Price

Contact Now

Product Description

1762-IF4 Allen Bradley MicroLogix 4 Channel Analog Input Module

The Allen-Bradley 1762-IF4 is a compact, high-precision 4-channel analog input module designed for the MicroLogix series of programmable logic controllers (PLCs). It supports both voltage (-10 to 10V DC) and current (4-20mA, with full-scale range of -21 to 21mA) signals, enabling seamless integration into industrial automation systems for data acquisition and process control. Ideal for monitoring temperature, pressure, flow, and other analog variables, this module delivers reliable performance in demanding environments.

Key Features

High-Accuracy Signal Processing

16-Bit Resolution: Ensures precise measurement of analog signals with binary two's complement data format for accurate scaling
Delta-Sigma (Δ-Σ) Converter: Delivers high-speed sampling (1000Hz) and low noise, critical for stable process control
Differential Inputs: 4 channels of differential (bipolar) inputs support flexible sensor configurations (2-wire, 3-wire, or 4-wire transmitters)

Robust Isolation & Compatibility

Channel-to-Backplane Isolation: 1500V AC isolation between channels and the system backplane protects against electrical interference
MicroLogix Compatibility: Works with MicroLogix 1100 (max 4 expansion modules), 1200 (max 6 expansion modules), and 1400 (max 7 expansion modules) PLCs

Flexible Installation & Configuration

DIN Rail/Panel Mounting: Compact design (90mm H × 87mm D × 40mm W) allows easy installation in control cabinets
DIP Switch Configuration: Simple signal type selection (voltage/current) via onboard DIP switches
LED Status Indicators: Per-channel LEDs provide real-time feedback on signal presence and module health

Reliable Operation

Overvoltage Protection: Circuitry complies with Overvoltage Category II standards for safe operation in industrial environments
ESD Protection: Built-in electrostatic discharge (ESD) safeguards prevent damage during handling

Applications

The 1762-IF4 is optimized for:

Process Control: Monitoring temperature, pressure, and flow in oil/gas, water/wastewater, and chemical plants
Data Acquisition: Integrating with sensors in manufacturing lines, packaging machinery, and robotic systems
Machine Monitoring: Tracking motor speed, liquid levels, and equipment status in CNC machines and assembly lines
