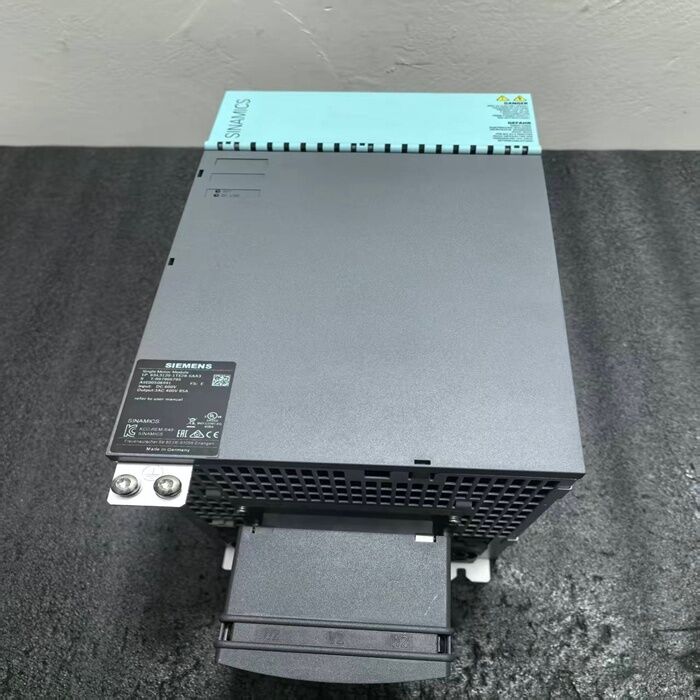

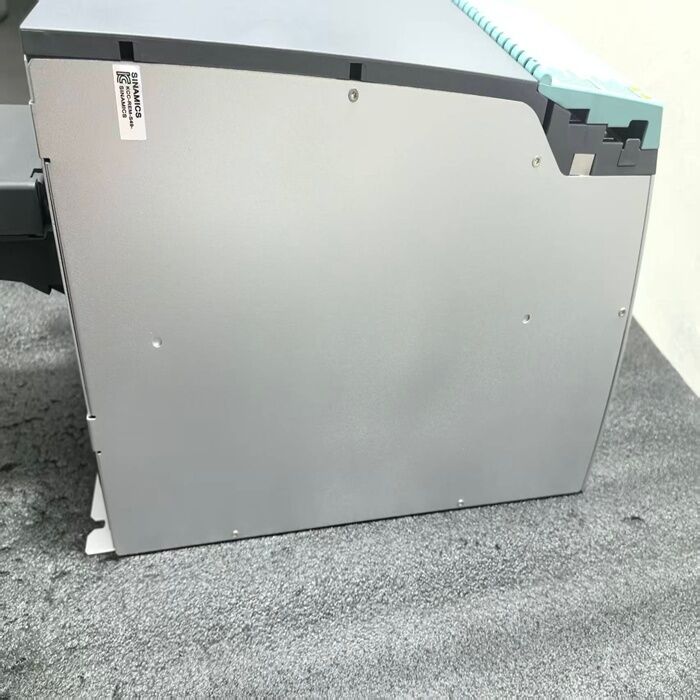

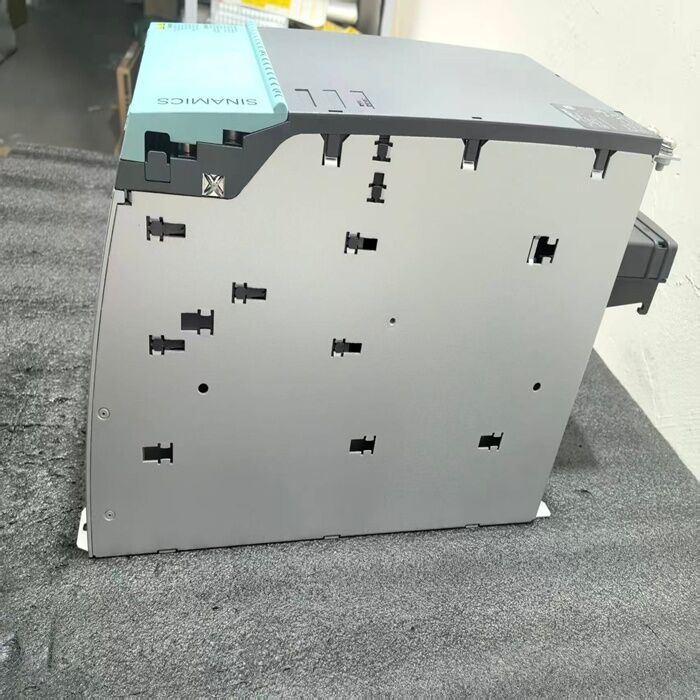

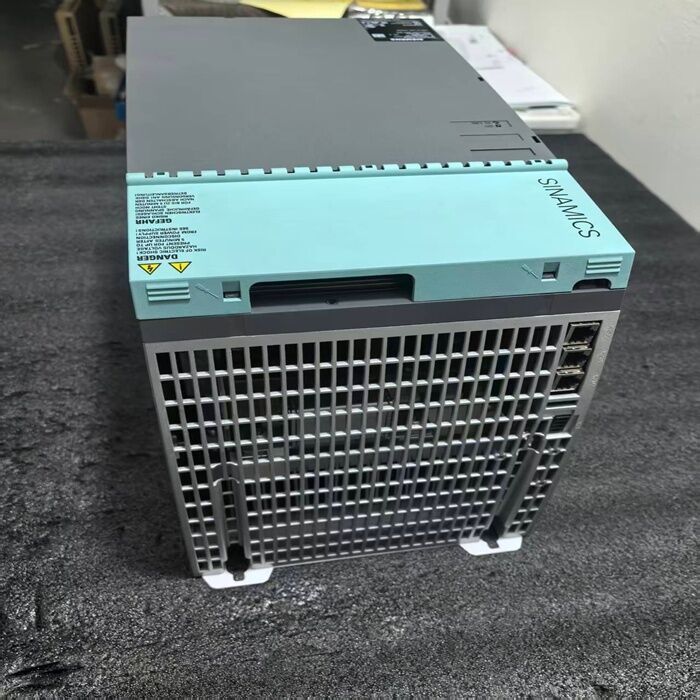

6SL3120-1TE28-5AA3 Siemens SINAMICS S120 Book Size Single Axis Drive Module

6SL3120-1TE28-5AA3 Siemens SINAMICS S120 Book Size Single Axis Drive Module

Siemens SINAMICS S120 drive module

S120 single axis drive module

Book size Siemens drive module

Place of Origin:

GERMANY

Brand Name:

SIEMENS

Model Number:

6SL3120-1TE28-5AA3

Contact Us
Request A Quote
Product Details
Product Type:
SINAMICS S120 Book-Size Single-Axis Drive Module
Power Input:
380–480 VAC ±10%, 3-phase, 50/60 Hz
Output Current:
Rated Continuous: 85 A; Peak (3 S): 170 A
Max Continuous Power:
~45 KW (varies With Motor And Cooling)
Protection Rating:
IP20 (for Control Cabinet Installation)
Status Indicators:
RDY (ready), ON (enable), SF (fault) LEDs For Quick Diagnostics
Highlight:

Siemens SINAMICS S120 drive module

,

S120 single axis drive module

,

Book size Siemens drive module

Payment & Shipping Terms
Minimum Order Quantity
1
Price
1-99$
Packaging Details
Brand New Original
Delivery Time
in stock / 1-3 work days
Payment Terms
T/T
Supply Ability
999
Product Description
Siemens SINAMICS S120 Book Size Single Axis Drive Module
The Siemens 6SL3120-1TE28-5AA3 is a high-performance book-size single-axis drive module from the SINAMICS S120 series, designed for medium-to-high-power independent drive applications. As a compact inverter unit, it integrates rectification and inversion functions with built-in DC bus and supports direct connection to 3-phase AC power (380-480 VAC), eliminating the need for external rectification units. This drive module is ideal for demanding industrial scenarios requiring precise speed and torque control, such as machine tools, packaging lines, and material handling systems.
Key Features
  • Compact Book-Size Design: Vertical installation structure enables dense side-by-side mounting, optimizing cabinet space with a module width of approximately 150 mm.
  • High Power Output: Rated continuous current of 85 A with peak current of 170 A for 3 seconds, supporting up to approximately 45 kW continuous power depending on motor and cooling conditions.
  • Flexible Control Modes: Supports basic positioning (EPOS), speed control, torque control, and V/f mode. Requires pairing with a CU310-2 DP (PROFIBUS) or CU310-2 PN (PROFINET) control unit (ordered separately).
  • Advanced Feedback Support: Standard TTL incremental encoder (2048 ppr) and SSI interface; optional support for EnDat 2.2, BISS, or resolver feedback via firmware activation.
  • Robust Protection: Built-in safety features include STO (Safe Torque Off, IEC 61800-5-2 SIL3/PLe), overcurrent, overvoltage, overheat, short-circuit, and ground fault protection.

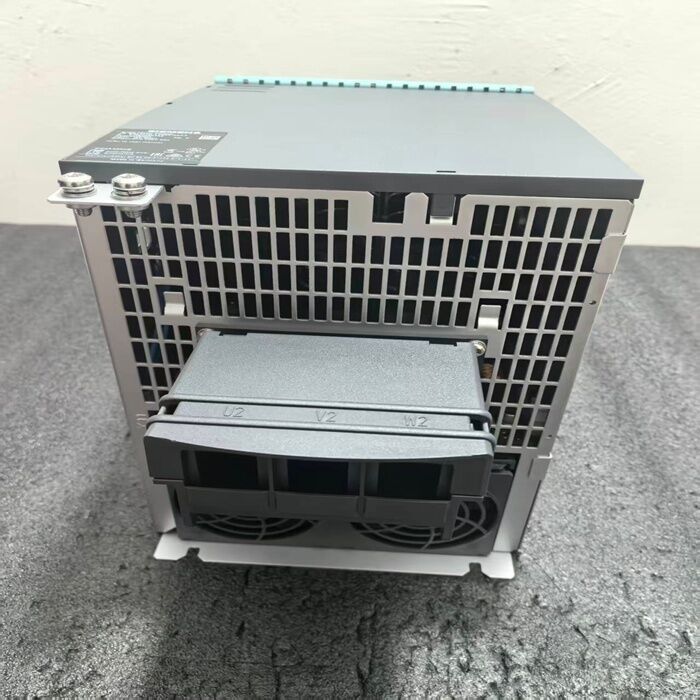

  • Forced Air Cooling: Integrated high-power fan ensures reliable operation under high-load conditions.
Applications
  • Machine Tools: Spindle drives for vertical/horizontal machining centers, heavy-duty feed axes, and turning/milling operations including C-axis control.
  • Packaging & Material Handling: Synchronized main drives for high-speed filling/capping lines, conveyor systems, and robotic arms.
  • Test Benches: High-power simulated load systems for wind turbine or automotive component testing.
  • Process Industries: Servo pressure control in metal forming machines or tension control in printing/textile machinery.
