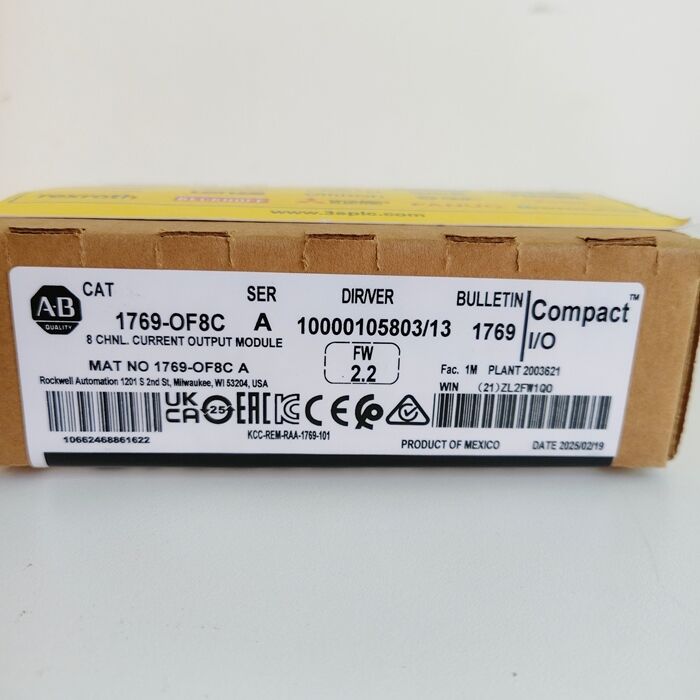

Name: 1769-OF8C Allen Bradley 8 Channel Analog Current Output Module
Brand: Xiamen Online Union Technology Co., Ltd
SKU: 1769-OF8C
Price: 50.00 USD
Availability: InStock

Home > Products > Allen Bradley PLC >

1769-OF8C Allen Bradley 8 Channel Analog Current Output Module

Allen Bradley 8 channel output module

1769-OF8C analog current module

PLC analog output module with warranty

Place of Origin:

USA

Brand Name:

Allen Bradley

Model Number:

1769-OF8C

Request A Quote

Product Details

Series:

1769 Compact I/O

Module Type:

Analog Output Module

No. Of Outputs:

Eight (8) Current Outputs

Output Current:

0-20 MA / 4-20 MA

Resolution:

16 Bit

Conversion Rate (all Channels) Max.:

5 Ms

Maximum Short-Circuit Current:

21 MA

Input Type:

Output Current

Communication Cable:

8 Point

Outputs:

8 Single-ended

Highlight:

Allen Bradley 8 channel output module

1769-OF8C analog current module

PLC analog output module with warranty

Payment & Shipping Terms

Minimum Order Quantity

Price

1-99$

Packaging Details

Brand New Original

Delivery Time

in stock / 1-3 work days

Payment Terms

T/T

Supply Ability

999

2085-OF4 Allen Bradley Micro800 4 Point Analog Output Module

Get Best Price

2085-IF8 Allen Bradley Input Module

Get Best Price

2080-L50E-48QWB Allen Bradley Micro850 48 I/O ENet/IP Controller

Get Best Price

1794-IE8 Allen Bradley Flex 8 Point Analog Input Module

Get Best Price

Contact Now

Product Description

1769-OF8C Allen Bradley 8 Channel Analog Current Output Module

The Allen Bradley 1769-OF8C is an 8-channel analog current output module from the CompactLogix series. This industrial automation component converts digital control signals from Programmable Logic Controllers (PLCs) into precise analog current signals to drive final control elements such as control valves, variable frequency drives (VFDs), and positioners.

Technical Specifications

Brand / Manufacturer	Allen-Bradley (Rockwell Automation)
Series	CompactLogix
Module Type	Analog Output Module
Output Channels	8 independent, single-ended current output channels
Output Signal & Range	Configurable per channel for either 0-20 mA or 4-20 mA current output
Resolution	16-bit Digital-to-Analog Converter (DAC)
Accuracy	Typically ±0.35% of full scale at 25°C (77°F)
Conversion / Update Rate	5 ms for all channels
Step Response	< 2.9 ms to reach 63% of the output value
Power Supply	24V DC (operational range typically 18-32V DC)
Isolation	Channel-to-ground isolation and 500V AC power supply isolation (for 1 minute)
Operating Temperature	0°C to 60°C (32°F to 140°F)
Physical Dimensions	Approximately 118 mm (H) x 35 mm (W) x 87 mm (D)
Compatibility	Designed for use with 1769 and certain 1768 CompactLogix controllers, and can also be used with MicroLogix 1500 controllers

Packing & Delivery Information

100% brand new and original factory sealed
1-year comprehensive warranty

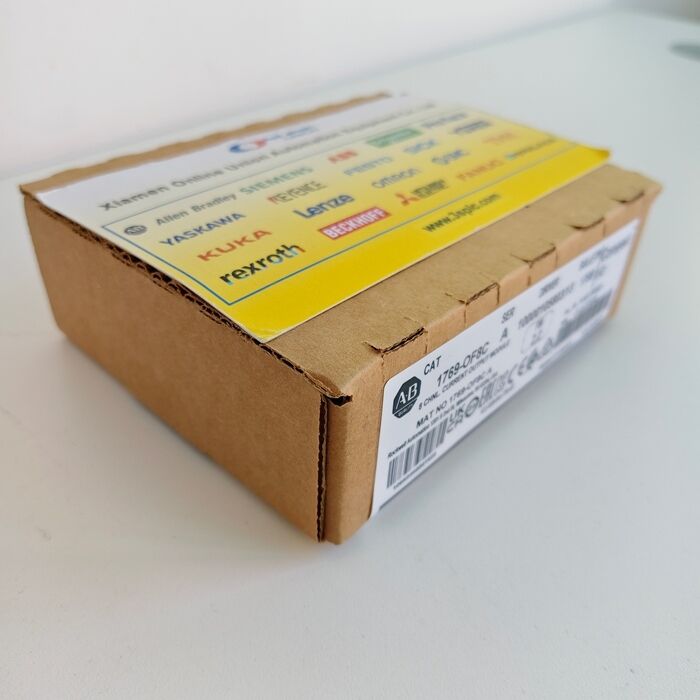

Original packaging with protective cartons
Shipped within 3-7 days after payment confirmation
All products thoroughly tested before shipment
