Name: 2080-L50E-48QWB Allen Bradley Micro850 48 I/O ENet/IP Controller
Brand: Xiamen Online Union Technology Co., Ltd
SKU: 2080-L50E-48QWB
Price: 50.00 USD
Availability: InStock

Home > Products > Allen Bradley PLC >

2080-L50E-48QWB Allen Bradley Micro850 48 I/O ENet/IP Controller

Allen Bradley Micro850 PLC

Micro850 48 I/O controller

ENet/IP PLC controller

Place of Origin:

USA

Brand Name:

Allen Bradley

Model Number:

2080-L50E-48QWB

Request A Quote

Product Details

Product Line:

Micro 850

Number Of Inputs:

28 Inputs

Input Voltage Category:

24 VAC / VDC

Number Of Output:

Ten (10) Relay Outputs

High-Speed Counter (HSC):

4 HSC Inputs

Input Voltage:

24VDC

Expansion Slots:

Five (5)

Inputs:

Input Type:

12/24V

Outputs:

Highlight:

Allen Bradley Micro850 PLC

Micro850 48 I/O controller

ENet/IP PLC controller

Payment & Shipping Terms

Minimum Order Quantity

Price

1-99$

Packaging Details

Brand New Original

Delivery Time

in stock / 1-3 work days

Payment Terms

T/T

Supply Ability

999

2085-OF4 Allen Bradley Micro800 4 Point Analog Output Module

Get Best Price

2085-IF8 Allen Bradley Input Module

Get Best Price

2080-L50E-48QWB Allen Bradley Micro850 48 I/O ENet/IP Controller

Get Best Price

1794-IE8 Allen Bradley Flex 8 Point Analog Input Module

Get Best Price

Contact Now

Product Description

Allen Bradley 2080-L50E-48QWB Micro850 48 I/O ENet/IP Controller

The Allen-Bradley 2080-L50E-48QWB is a 48-point programmable logic controller (PLC) from the Micro850 series of the Micro800 family. Designed for machine control applications, this compact brick-style controller combines embedded I/O, motion control capabilities, and network connectivity in a single, efficient package.

Technical Specifications

Product Family	Micro850 48-point Programmable Controller
Embedded I/O	48 points total (28 embedded inputs, 20 embedded outputs)
Physical Dimensions	90 mm (H) x 238 mm (W) x 80 mm (D) / 3.54 x 9.37 x 3.15 inches
Weight	Approximately 0.725 kg (1.60 lb)
Modularity	Supports up to 5 functional plug-in modules (PIMs)
Working Temperature	-20 to +65 °C (-4 to +149 °F)
Enclosure Rating	IP20 (suitable for protected control cabinet installation)

Electrical Specifications

Power Supply	24V DC Class 2 source (20.4 to 26.4 V DC operating range)
Power Consumption	33 W
Input Types	28 embedded inputs support 24V DC sinking/sourcing signals; first 12 points (0-11) configurable as high-speed inputs
Output Types	20 embedded relay outputs (2 A max at 240V AC or 24V DC per contact)
Isolation	50V continuous insulation voltage (IEC Class 2 reinforced insulation)

Performance and Communication

Motion Control: Embedded Pulse Train Output (PTO) for controlling up to two axes
High-Speed Counter (HSC): High-speed DC inputs support encoder feedback for motion applications
Embedded Ports: USB programming port, non-isolated serial port (RS-232/RS-485 configurable), and Ethernet port

Packing & Delivery

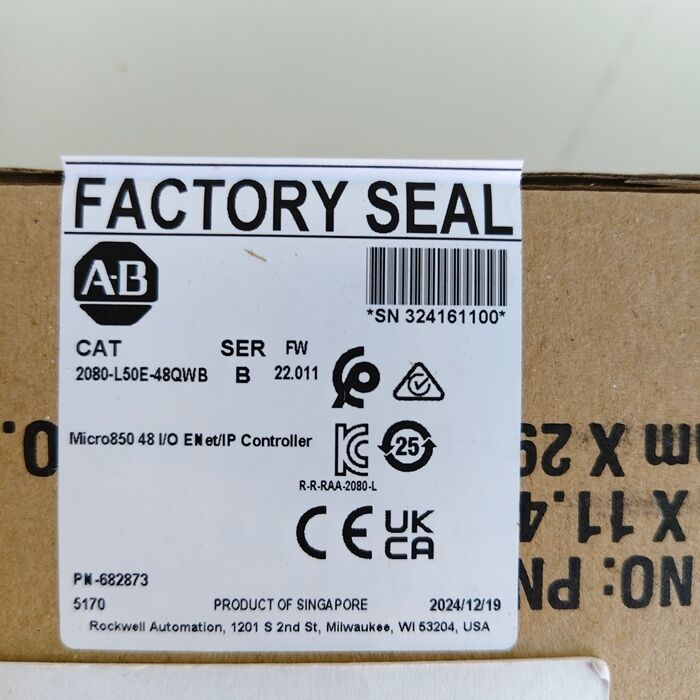

100% brand new and original factory sealed
1-year warranty included
Original packaging with cartons
Shipped within 3-7 days after payment
All goods thoroughly tested before shipment
