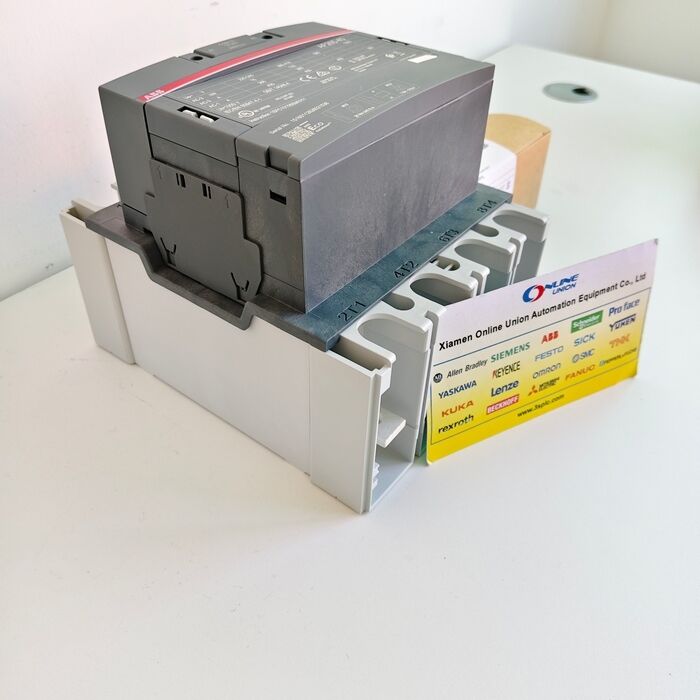

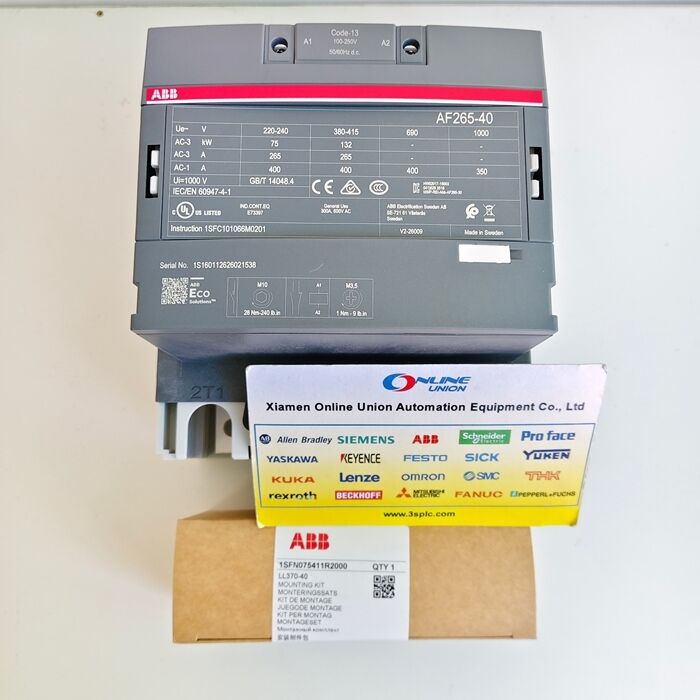

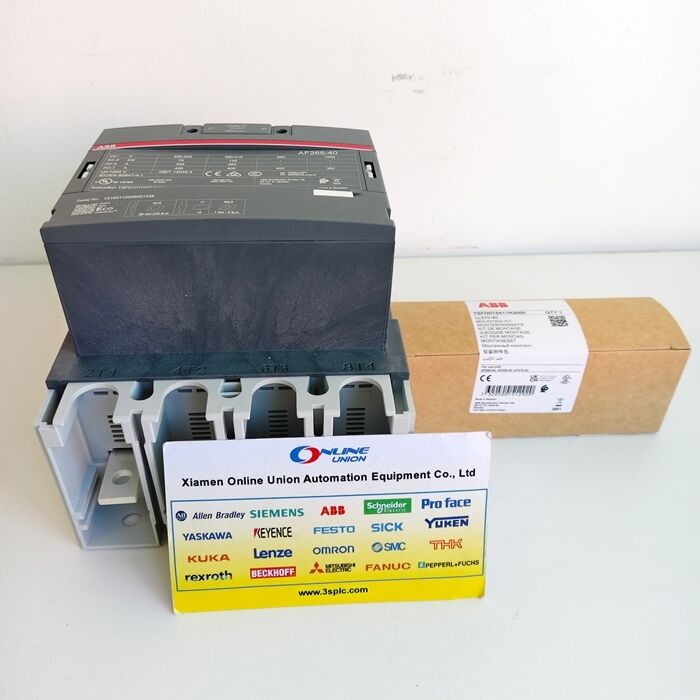

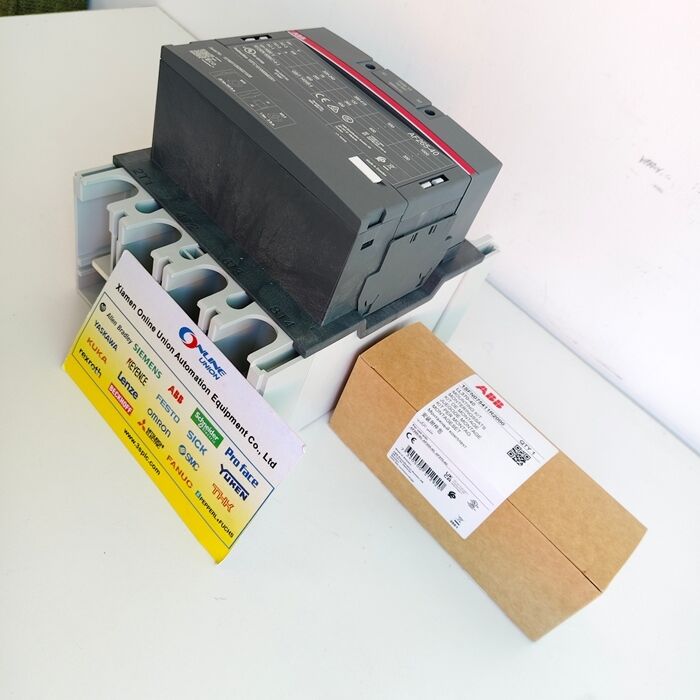

AF265-40-11-13 ABB AF Series Low Voltage AC/DC Contactor

The ABB AF265-40-11-13 is a robust 3-pole low-voltage contactor from ABB's renowned AF series, engineered for demanding industrial applications requiring reliable and versatile switching solutions. Featuring a universal AC/DC coil that operates across a wide voltage range, this contactor simplifies inventory and enhances flexibility in control circuits. Ideal for controlling high-power loads including motors, lighting, heating, and ventilation systems across manufacturing, marine, and building automation sectors.

• Universal AC/DC Coil Operation: Operates on both AC (100-250V 50/60Hz) and DC (20-250V DC) power supplies, eliminating the need for separate contactor models
• High Reliability and Durability: Robust construction delivers up to 20 million mechanical operations and 2 million electrical operations (AC-3) for long-term performance in harsh environments
• Wide Control Voltage Tolerance: Resilient electronic coil interface withstands voltage fluctuations and short-term interruptions, compliant with SEMI F47-0706 standards
• Compact Design: Space-saving construction with 100mm arcing distance optimizes control panel space
• Comprehensive Auxiliary Contacts: Standard configuration of 1 Normally Open (NO) and 1 Normally Closed (NC) for signaling and interlocking flexibility
• Built-in Surge Suppression: Integrated protection against voltage spikes extends contactor lifespan and reduces maintenance
• Easy Installation: Quick DIN rail mounting with modular construction for simple coil and auxiliary contact replacement

• Motor Control: Direct-on-line (DOL) starting and control of 3-phase AC squirrel cage motors
• General Purpose Switching: Control of resistive loads (heating), inductive loads (solenoids, contactors), and lighting banks
• Industrial Automation: Conveyor systems, pumps, fans, and compressors
• Marine and Shipbuilding: Onboard power distribution and motor control
• Building Management Systems: HVAC control, lighting control, and pump control in commercial and residential buildings

• AF: ABB Contactor Series
• 265: Frame Size / Current Rating (approx. 400A)
• 40: Specific product code within AF265 frame (3-pole contactor)
• 11: Auxiliary contact configuration: 1 NO + 1 NC
• 13: Coil voltage code: 100-250V AC/DC

• Side-mounted Auxiliary Contact Blocks (2NO+2NC, 4NO, 4NC)
• Mechanical Interlocks for reversing contactors (AF265Z)
• Surge Suppressors (additional to built-in protection)
• Mounting Adapters for panel mounting or special installations
• Coil Replacement Kits for field voltage changes
