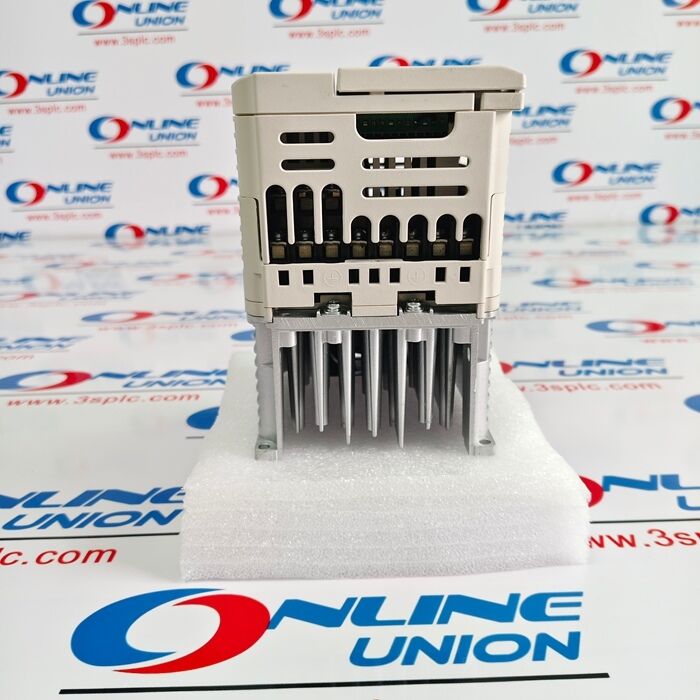

VZA41P5BAA OMRON1.5kW 400V High-Performance Inverter

The OMRON VZA41P5BAA is a high-performance 1.5 kW (Heavy Duty) / 2.2 kW (Normal Duty) inverter drive from the V1000 series. Designed for three-phase 380–480 VAC power systems, it delivers precise sensorless current vector control for both Induction Motors (IM) and Permanent Magnet Motors (PM). Its compact design, built-in EMC filter, and easy-to-use interface make it an ideal solution for industrial automation, conveyor systems, pumps, fans, and machine tools requiring reliable variable speed control and high starting torque.

• Advanced Motor Control:​ Supports both Induction (IM) and Permanent Magnet (PM) motors with online auto-tuning.

• High Starting Torque:​ Delivers 200% starting torque at 0.5 Hz for demanding load applications.

• Dual Rating:​ Heavy Duty (HD) 150%/1 min and Normal Duty (ND) 120%/1 min overload capacity.

• Flexible Communications:​ Built-in Modbus RS-485/422; optional support for PROFIBUS, CANopen, DeviceNet, Ethernet, etc.

• Built-in EMC Filter:​ Integrated filter reduces external noise and simplifies installation.

• Safety & Protection:​ Complies with EN954-1Cat. 3 / EN 61508SIL2; includes STO (Safe Torque Off) functionality.

• User-Friendly Design:​ Features screwless control terminals, memory backup, and an optional 24V DC control board power supply.

• Global Approvals:​ Certified with CE, UL, cUL, and TÜV markings.

• Model:​ VZA41P5BAA (V1000 Series)

• Input Voltage:​ 3-Phase, 380–480 VAC (50/60 Hz)

• Motor Power:

  • Heavy Duty (HD): 1.5 kW (4.8 A)

  • Normal Duty (ND): 2.2 kW (5.4 A)

• Output Frequency Range:​ 0.1 – 400 Hz

• Control Method:​ Sine-wave PWM (V/f control, Sensorless current vector control)

• Starting Torque:​ 200% at 0.5 Hz

• Speed Control Range:​ 1:100

• Overload Capacity:​

  • HD: 150% for 1 minute

  • ND: 120% for 1 minute

• Digital Inputs:​ 6 (24 VDC photocoupler)

• Analog Inputs:​ 2 (0–10 V / 4–20 mA / 0–20 mA)

• Communication:​ RS-485/422 (Modbus) built-in

• Protection Rating:​ IP20

• Operating Temperature:​ -10°C to +40°C

• Dimensions (W x H x D):​ 108 mm x 128 mm x 154 mm

• Weight:​ Approx. 1.5 kg

• 100% brand new and original factory sealed

• 1-year warranty included

• Original packaging with cartons

• Shipped within 3-7 days after payment

• All goods thoroughly tested before shipment
