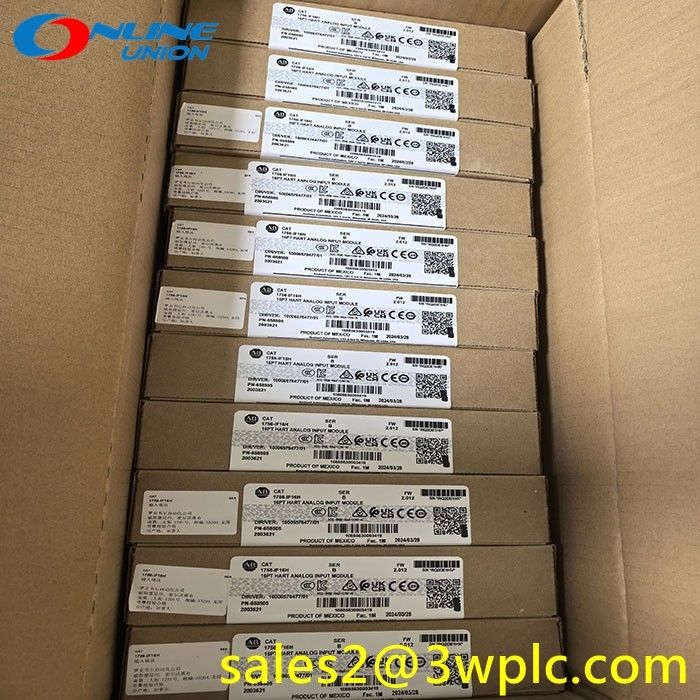

Name: 1756-IF16H Allen Bradley ControlLogix 16 Pt A/I HART Module
Brand: Xiamen Online Union Technology Co., Ltd
SKU: 1756-IF16H
Price: 50.00 USD
Availability: InStock

Home > Products > Allen Bradley PLC >

1756-IF16H Allen Bradley ControlLogix 16 Pt A/I HART Module

dc allen bradley plc

compact allen bradley plc

industrial automation allen bradley plc

Place of Origin:

USA

Brand Name:

Allen Bradley

Model Number:

1756-IF16H

Request A Quote

Product Details

Module Type:

Analog Input Module With HART Protocol

No. Of Inputs:

16 Differential Input; Dedicated HART Modem Per Channel

Analog Signals:

0-20 MA And 4-20 MA

Conversion Method:

Successive Approximation

Data Format:

Integer Mode (left Justified, 2 S Complement) IEEE 32-bit Floating Point

Inputs:

16 Differential

Applicantions:

Industrial Automation

Brand:

Allen Bradley

Rated Voltage:

220V

Protection Level:

IP65

Product Certification:

CCC, UL

Highlight:

dc allen bradley plc

compact allen bradley plc

industrial automation allen bradley plc

Payment & Shipping Terms

Minimum Order Quantity

Price

1-99$

Packaging Details

Brand New Original

Delivery Time

in stock / 1-3 work days

Payment Terms

T/T

Supply Ability

999

Color TFT Touch Screen Allen Bradley PLC 7 Inch Allen Bradley 2711R-T7T

Get Best Price

High Precision Allen Bradley 2198-P031 Servo Drive Short Circuit Protection

Get Best Price

500V AC Allen Bradley 2080-SERIALISOL Isolation Voltage High Stability

Get Best Price

Compact Allen Bradley 1766-L32BWAA 24V DC Programmable Logic Controller (PLC)

Get Best Price

Contact Now

Product Description

1756-IF16H Allen Bradley ControlLogix 16 Pt A/I HART Module

Product Description

The Allen-Bradley 1756-IF16H is an analog input module from the 1756 ControlLogix Programmable Logic Controller Automation (PAC). It supports integration of 0-20 mA or 4-20 mA input signal through hardwiring and Highway Addressable Remote Transducer (HART) communication protocol.

Channels: Sixteen (16) differential current signals with One (1) HART modem per channel

Converter: Integrated Analog to Digital Converter (ADC) using successive approximation method

Resolution: 16-21 bits analog conversion range for more measuring points

Signal Format: Integer mode (left justified, 2's complement) IEEE 32-bit floating point number

Wiring Specifications

Recommended connection: Single wire termination
Wire diameter: 0.33...2.1 mm² (22...14 AWG) solid or stranded shielded copper wire
Insulation rating: 105°C (221°F) or higher
Maximum insulation thickness: 1.2 mm (3/64 in.)
Compatible Removable Terminal Blocks (RTB): 1756-TBCH and 1756-TBS6H

Performance Specifications

Calibrated accuracy better than 0.13% of range on all filters
Module error: 0.3% of range
Input scan time: 11...328 ms (filter dependent)
HART scan time: Approximately 1 second when all channels are HART enabled
