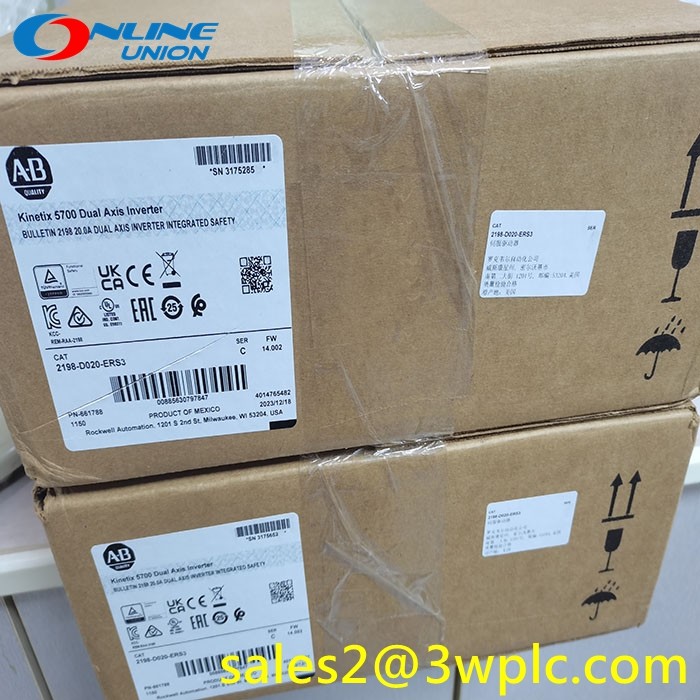

Name: 2198-D020-ERS3 Allen Bradley Kinetix 5700 Dual Axis Inverter
Brand: Xiamen Online Union Technology Co., Ltd
SKU: 2198-D020-ERS3
Price: 50.00 USD
Availability: InStock

Home > Products > Allen Bradley PLC >

2198-D020-ERS3 Allen Bradley Kinetix 5700 Dual Axis Inverter

dc allen bradley plc

compact allen bradley plc

industrial automation allen bradley plc

Place of Origin:

USA

Brand Name:

Allen Bradley

Model Number:

2198-D020-ERS3

Request A Quote

Product Details

Torque Value:

4.4-5.3 Lb*in (0.5-0.6 N*m)

Dimensions:

9.92 X 2.17 X 14.09 In (252 X 55 X 358 Mm)

Weight:

9.17 Lbs (4.16 Kg)

Product Category:

Kinetix 5700

Velocity Loop:

400 Hz

Current Loop:

1000 Hz

Applicantions:

Industrial Automation

Brand:

Allen Bradley

Rated Voltage:

220V

Protection Level:

IP65

Product Certification:

CCC, UL

Highlight:

dc allen bradley plc

compact allen bradley plc

industrial automation allen bradley plc

Payment & Shipping Terms

Minimum Order Quantity

Price

1-99$

Packaging Details

Brand New Original

Delivery Time

in stock / 1-3 work days

Payment Terms

T/T

Supply Ability

999

Color TFT Touch Screen Allen Bradley PLC 7 Inch Allen Bradley 2711R-T7T

Get Best Price

High Precision Allen Bradley 2198-P031 Servo Drive Short Circuit Protection

Get Best Price

500V AC Allen Bradley 2080-SERIALISOL Isolation Voltage High Stability

Get Best Price

Compact Allen Bradley 1766-L32BWAA 24V DC Programmable Logic Controller (PLC)

Get Best Price

Contact Now

Product Description

2198-D020-ERS3 Allen Bradley Kinetix 5700 Dual Axis Inverter

Product Description

The Allen-Bradley 2198-D020-ERS3 is a Kinetix 5700 dual-axis servo drive featuring integrated safety functions and high-performance motor control. This compact and powerful drive is designed for equipment requiring multiple axes and higher power applications.

Key Features

Dual-axis servo drive with hardwiring and integrated safety features
Safe torque-off (STO) functionality with SIL CL3 and PLe safety ratings
Supports Hiperface and DSL encoder feedback
Dual Ethernet ports for linear and device-level ring (DLR) topologies
Single-wire and tune-free commissioning for simplified installation
Compact design with 55 mm module width
Integrated motion control and safety functions via Ethernet/IP network
Load observer real-time adjustment technology for advanced performance

Technical Specifications

Dimensions	9.92 x 2.17 x 14.09 inches
Weight	9.17 pounds
Continuous Output Current	8A (RMS), 11.3A (0peak)
Peak Output Current	20A (RMS), 28.2A (0peak)
Continuous Output Power	5.5 kW at 324-528V RMS three-phase voltage
PWM Frequency	4 kHz
Internal Capacitance	330 μF

Applications

This high-performance servo drive is widely used in various industrial applications including beverage production, diaper machines, bag making machines, tire forming machines, pallet loaders, and other equipment requiring precise motion control.
