Name: GT2-P12K KEYENCE Stylus type High-precision Sensor head
Brand: Xiamen Online Union Technology Co., Ltd
SKU: GT2-P12K
Price: 99 USD
Availability: InStock

Home Products KEYENCE Parts

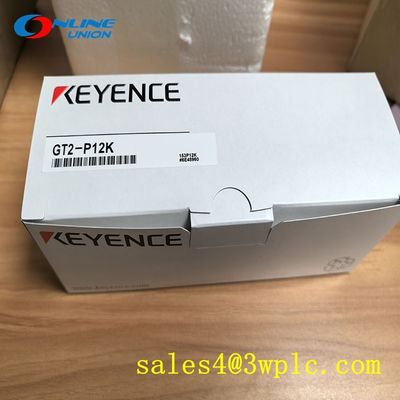

GT2-P12K KEYENCE Stylus type High-precision Sensor head

Product Details:

Place of Origin:	Japan
Brand Name:	KEYENCE
Model Number:	GT2-P12K

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$99
Delivery Time:	In stock/1-3days
Payment Terms:	T/T
Supply Ability:	10

Contact Now

Detailed Product Description

Highlight:

sensor head keyence parts

ip67 keyence parts

compact keyence parts

KEYENCE GT2-P12K Stylus type High-precision Sensor head:

The KEYENCE GT2-P12K is a high-precision contact-type digital sensor designed for industrial measurement applications requiring exceptional accuracy and durability. Part of KEYENCE’s GT2 series, it features an absolute-type scale pulse system II to eliminate tracking errors, making it ideal for precision manufacturing, quality control, and research environments.

Technical Specifications:

Parameter	Details
Model	GT2-P12K
Type	Contact-type digital sensor (pneumatic cylinder model)
Detection System	Scale pulse system II (absolute encoding)
Measurement Range	12 mm
Resolution	0.1 μm
Accuracy	±1 μm (p-p) at 20°C
Sampling Cycle	4 ms
Measurement Force	0.9 N (upward), 0.95 N (lateral), 1.0 N (downward)
Environmental Rating	IP67G (JIS), IP67 (IEC), NEMA Type 13
Temperature Range	-10°C to +55°C (non-freezing)
Vibration Resistance	10–55 Hz, 1.5 mm double amplitude (X/Y/Z axes, 2 hours each)
Shock Resistance	1,000 m/s² (IEC 60068-2-27)
Materials	Body: SUS303 stainless steel; Seals: NBR/fluororubber; Cables: Oil-resistant PUR
Cable	M8 connector, oil-resistant PUR material (supports robotic motion)
Power Supply	DC 12–24 V ±10%
Response Time	500 μs
Protection Circuits	Reverse polarity, overcurrent, and surge protection
Interface	USB, serial communication (RS-232C/RS-485)

GT2-P12K KEYENCE Stylus type High-precision Sensor head 0
