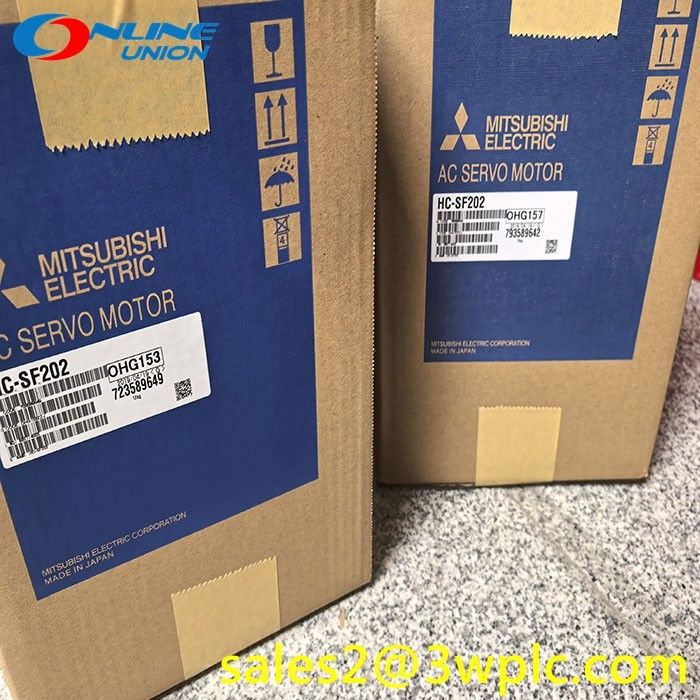

HC-SF202 MITSUBISHI 2000 Rpm 2KW Rated Output Advanced Feedback 200V AC

The MITSUBISHI HC-SF202 is a high-performance servo motor designed for demanding industrial applications requiring precise speed, torque, and positioning control. Part of Mitsubishi Electric's renowned HC-SF series, this motor combines a rugged design, high-efficiency operation, and advanced feedback technology to deliver exceptional performance in CNC machinery, robotics, packaging systems, and more. With a rated output of 2 kW (2.7 HP) and a maximum speed of 2000 rpm, the HC-SF202 ensures smooth, reliable operation even under heavy loads.

• High-Precision Control
  • Integrated high-resolution encoder (20-bit absolute optional) ensures ±0.01° positioning accuracy
  • Advanced vector control technology provides smooth torque delivery and minimal vibration
• High Torque & Power Density
  • 2 kW rated power and 28.65 N*m peak torque for heavy-duty applications
  • Compact design (330 x 130 mm) saves space in tight installations
• Robust & Durable Construction
  • IP65 front/IP54 rear protection rating for dust and water resistance
  • Class F insulation (155°C) and reinforced bearings for long-term reliability
• Energy Efficiency
  • Low cogging torque and high efficiency (up to 90%) reduce power consumption
  • Compliant with IE3 energy efficiency standards
• Flexible Configuration
  • Optional electromagnetic brake for holding loads in vertical applications
  • Compatible with Mitsubishi's MR-JE, MR-J4, and MR-J5 servo amplifiers
• Easy Integration & Maintenance
  • Flange-mounted design simplifies installation
  • Modular connectors for quick wiring and troubleshooting
