1756-IF4FXOF2F ALLEN BRADLEY Relay Module
1756-IF4FXOF2F is a high-speed analog combination I/O module from the ControlLogix series under Rockwell Automation. It has four high-speed, sub millisecond differential input channels and two high-speed voltage or current output channels, and is compatible with receiving various signal ranges such as ± 10V, 0 to 10V, 0 to 5V, and 0 to 20mA. It is suitable for precise acquisition and output of analog signals in industrial automation control systems; This module integrates over range and under range indication, overvoltage protection (30V DC), open circuit detection (positive full-scale reading within 1 second), and short circuit protection (electronic current limit ≤ 21mA) functions. It supports 24V DC overvoltage protection and current output open circuit detection (output>0.1mA required), and achieves conversion resolution of 14 bits (± 10.5V) and 12 bits (21mA) through successive approximation method, with a repetition accuracy of ± 1LSB. It has a 300us update cycle and sub millisecond channel scanning capability, and can synchronize cross module sampling to ensure real-time and synchronous signal processing; Its analog output adopts the leakage free R-ladder DAC conversion method, with a resolution of 13 bits (21mA=2.8 µ A/bit) and 14 bits (21.8V=1.3mV/bit). The output signal can be used to control regulating valves, variable frequency drives, and other devices, or retransmitted to indicators, recorders, and other devices. It supports output connections with manual control instructions, arithmetic operations, or PID controllers; In addition, the module is equipped with a display screen that can display health status and operating status in real time (such as calibration mode), with a power consumption of only 4.3 watts. It has a corrugated aluminum reinforced casing with IP30 protection level, supports 35mm DIN rail installation, and has a working temperature range of -10 to 70 ℃ (optional wide temperature -40 to+85 ℃). It is suitable for complex industrial environments such as power plants, chemical plants, and steel plants, and is an ideal choice for high-precision analog signal processing and control in the field of industrial automation.
Technical specifcations for 1756-IF4FXOF2F
Power supply and protection
Power input: Supports dual power redundant input, DC(9-36)V, The typical value is DC24V.
Power consumption: less than 4W.
Voltage isolation: It has DC1500V voltage isolation function.
Protection function: It has reverse polarity protection function to ensure that the module will not be damaged when the power polarity is reversed.
2, Input/output specifications
Input channels: This module has four high-speed, sub millisecond differential input channels, supporting multiple signal ranges such as ± 10V, 0 to 10V, 0 to 5V, and 0 to 20mA.
Output channel: It has two high-speed voltage or current output channels, and the output signal can be used to control regulating valves, variable frequency drives, and other devices, or to retransmit to indicators, recorders, and other devices.
3, Analog signal processing
Conversion resolution: The analog input adopts conversion resolutions of 14 bits (± 10.5V) and 12 bits (21mA) to ensure the accuracy of signal acquisition.
Analog output: Using the leakage free R-ladder DAC conversion method, the resolution reaches 13 bits (21mA=2.8 µ A/bit) and 14 bits (21.8V=1.3mV/bit).
Signal processing capability: Supports output connections with manual control instructions, arithmetic operations, or PID controllers to achieve complex control logic.
4, Mechanical characteristics
Dimensions: 132mm × 105mm × 52mm.
Shell protection level: IP30, with a certain degree of dust-proof ability.
Installation method: Supports 35mm DIN rail installation for easy integration in industrial control cabinets.
Net weight: 800g.
5, Working environment
Working temperature: -10 ℃ to 70 ℃ (optional wide temperature range -40 ℃ to+85 ℃).
Relative humidity: ≤ 90% (no condensation).
Storage temperature: -40 ℃ to 80 ℃.
6, Test certification
Electromagnetic compatibility: Complies with electromagnetic compatibility standards such as EN55022:2010 (RE).
Electrostatic discharge immunity: Complies with EN61000-4-2:2001 (ESD) standard, with an air discharge voltage of ± 8KV and a contact discharge voltage of ± 4KV.
Radio frequency electromagnetic field radiation immunity: Complies with EN61000-4-3:2006 (RS) standard and can operate normally under 3V/m (80-1000MHz) radio frequency electromagnetic field radiation.
More Products In Stock:
| 20F1ANC205JN0 |
25B-D030N114 |
150-C43NBD |
1762-IQ16 |
Our Services:
1,All our products are new and orginal, and of good quality
2,Our prices are very competitive.
3, We have a large quantity in stock, so we could help the customers to get the components which are dificult to get.
4,All inquiries will be valued and will reply in 24.
Packing & Delivery:

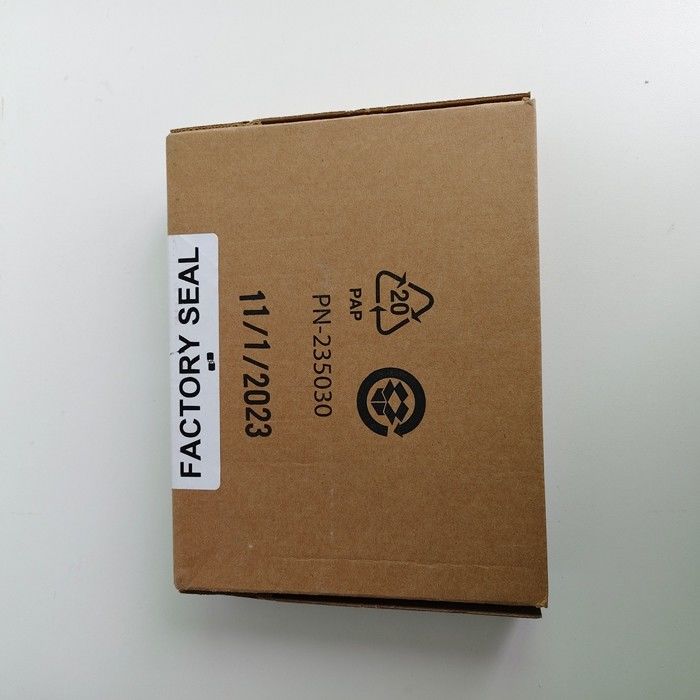

1,100% brand New and Original Factory Seal!
