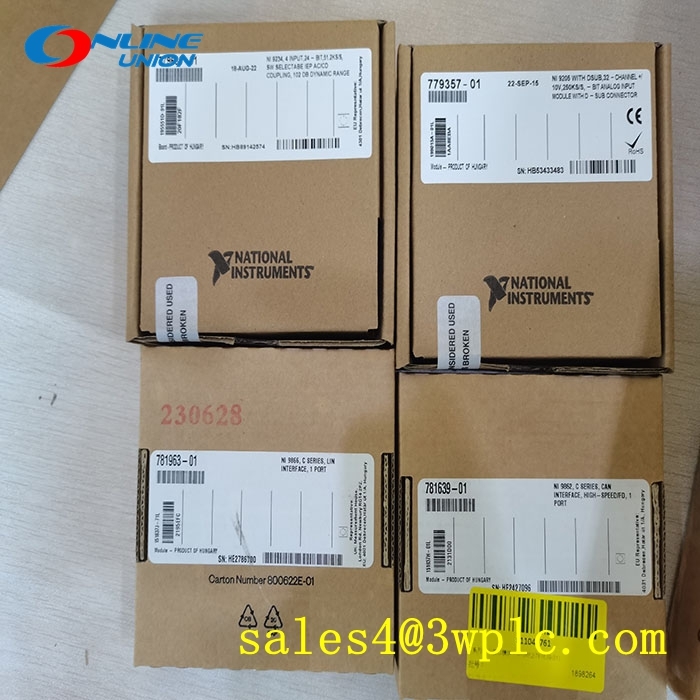

781639-01 National Instruments single-port, high-speed CAN Flexible interface module

National Instruments 781639-01 single-port, high-speed CAN Flexible  interface module

The National Instruments 781639-01, identified as the NI 9862 C Series CAN Interface Module, is a specialized communication device designed for high-speed Controller Area Network (CAN) applications. This module enables seamless integration with CompactDAQ or CompactRIO systems, providing a robust solution for industries relying on CAN protocols, such as automotive, industrial automation, and embedded systems.

The NI 9862 is a single-port, high-speed CAN Flexible Data Rate (FD) interface module optimized for real-time communication and manipulation of CAN frames and signals. It excels in applications requiring high-speed data exchange, such as hardware-in-the-loop (HIL) simulation, rapid control prototyping, bus monitoring, and automation control. Key features include:

CAN FD Support: Compliant with CAN 2.0 and CAN FD standards, enabling flexible data rates up to 1 Mbps.

Real-Time Performance: Facilitates simultaneous CAN communication and data acquisition when paired with CompactDAQ/CompactRIO platforms.

NI-XNET Driver Integration: Leverages the NI-XNET driver for efficient frame/signal-level communication, supporting advanced diagnostics and protocol handling.

Compact Design: C Series form factor ensures easy integration into modular test and measurement systems.

Software Compatibility: Works seamlessly with LabVIEW, LabWindows/CVI, and third-party tools like MATLAB and Python for custom application development.

Technical Specifications

Part Number: 781639-01

Interface: CAN FD, single-port, D-Sub 9-pin male connector.

Data Rate: Up to 1 Mbps (configurable).

Operating Voltage: 7 V to 25 V (CAN bus power).

Power Consumption: 1 W (typical, via chassis).

Operating Temperature: -40°C to 70°C.

Storage Temperature: -40°C to 85°C.

Humidity: 5% to 95% (non-condensing).

Connector Type: D-Sub 9-pin for CAN bus connection.

Software Compatibility:

NI-XNET Driver: Enables advanced CAN frame manipulation and diagnostics.

LabVIEW/LabWindows/CVI: APIs for custom application development.

Third-Party Support: MATLAB, Python, and ANSI C integration.

Certifications: CE, RoHS compliant.
