E6F-AG5C-C OMRON robust absolute rotary encoder

Omron E6F-AG5C-C robust absolute rotary encoder

The OMRON E6F-AG5C-C is a robust absolute rotary encoder designed for high-precision angle detection in industrial automation applications. As part of the E6F-A series, it features a durable construction with IP65 protection and oil-resistant sealing, making it suitable for demanding environments. This encoder provides versatile configuration options, including multiple resolutions (up to 1,024 pulses/revolution) and output formats (BCD or Gray code), to accommodate diverse control requirements.

Technical Specifications:

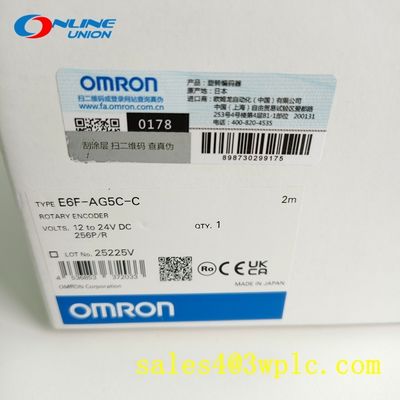

Model: E6F-AG5C-C

Encoder Type: Absolute optical rotary encoder

Outer Diameter: φ60mm

Resolution: 256, 360, 720, or 1,024 pulses/revolution (selectable)

Output Code: BCD or Gray binary

Power Supply:

DC 5–12V (for NPN open-collector output)

DC 12–24V (for PNP open-collector output)

Output Current: 35mA maximum (sink/source)

Response Frequency: Up to 20kHz (varies with resolution)

Maximum Rotational Speed: 5,000 revolutions per minute (RPM)

Cable Connectivity: 2-meter standard cable (options for 5m, 10m, or 20m extensions)

Mounting: Base-mountable with right-angle orientation, compatible with φ10mm shaft couplings.
