Name: E3JM-DS70M4-G OMRON Photoelectric Sensor
Brand: Xiamen Online Union Technology Co., Ltd
SKU: E3JM-DS70M4-G
Price: 50.00 USD
Availability: InStock

Home > Products > OMRON Parts >

E3JM-DS70M4-G OMRON Photoelectric Sensor

OMRON photoelectric sensor with warranty

E3JM-DS70M4-G industrial sensor

OMRON proximity sensor for automation

Place of Origin:

Japan

Brand Name:

OMRON

Model Number:

E3JM-DS70M4-G

Request A Quote

Product Details

Shape:

Square Type

Sensing Method:

Diffuse-reflective

Sensing Distance:

White Paper 200 X 200 Mm: 700 Mm

Light Source:

Infrared LED (940 Nm)

Power Consumption:

2 W Max.

Degree Of Protection:

IEC: IP66

Connection Method:

Terminal Block Models

Indicator:

Light Indicator (red)

Highlight:

OMRON photoelectric sensor with warranty

E3JM-DS70M4-G industrial sensor

OMRON proximity sensor for automation

Payment & Shipping Terms

Minimum Order Quantity

Price

1-99$

Packaging Details

Brand New Original

Delivery Time

in stock / 1-3 work days

Payment Terms

T/T

Supply Ability

999

E32-DC200 2M OMRON Fiber Optic Sensor Head

Get Best Price

E3JM-DS70M4-G OMRON Photoelectric Sensor

Get Best Price

R88M-K3K020F-S2 Omron G5 Series High Power AC Servo Motor

Get Best Price

NS8-TV01B-V2 Omron NS Series Advanced HMI Terminal

Get Best Price

Contact Now

Product Description

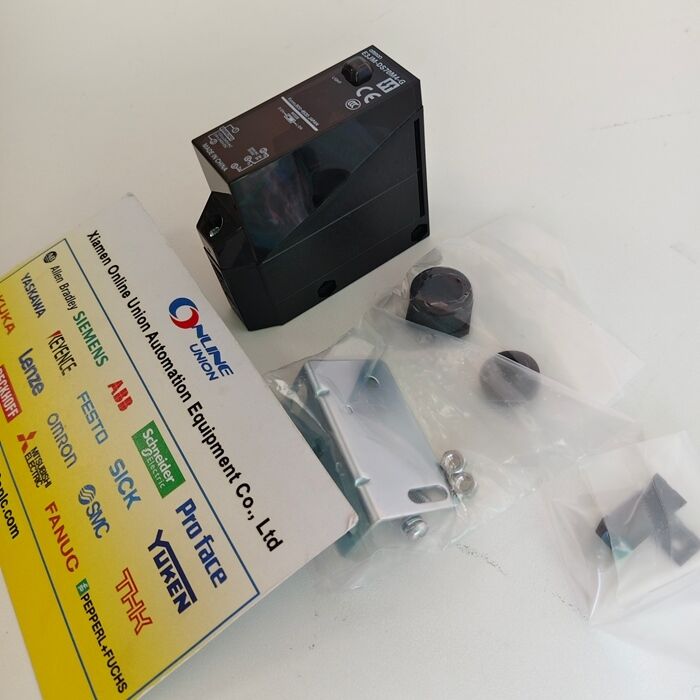

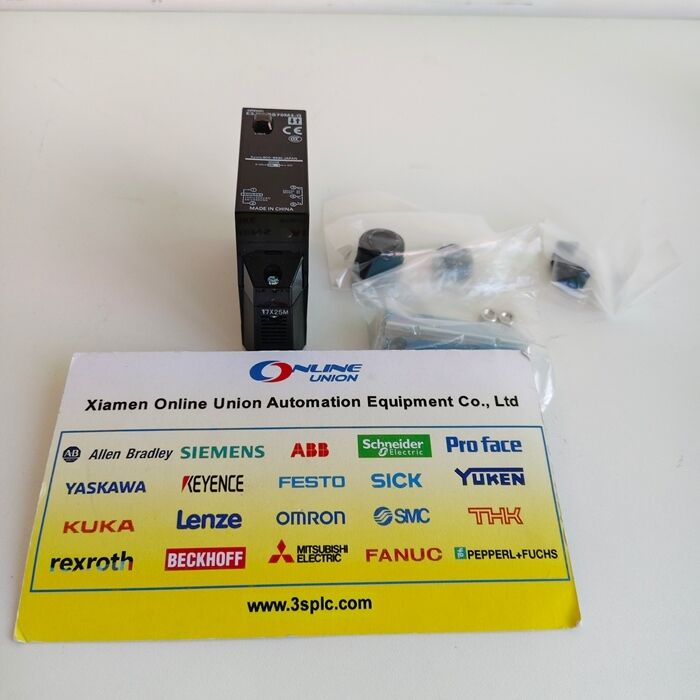

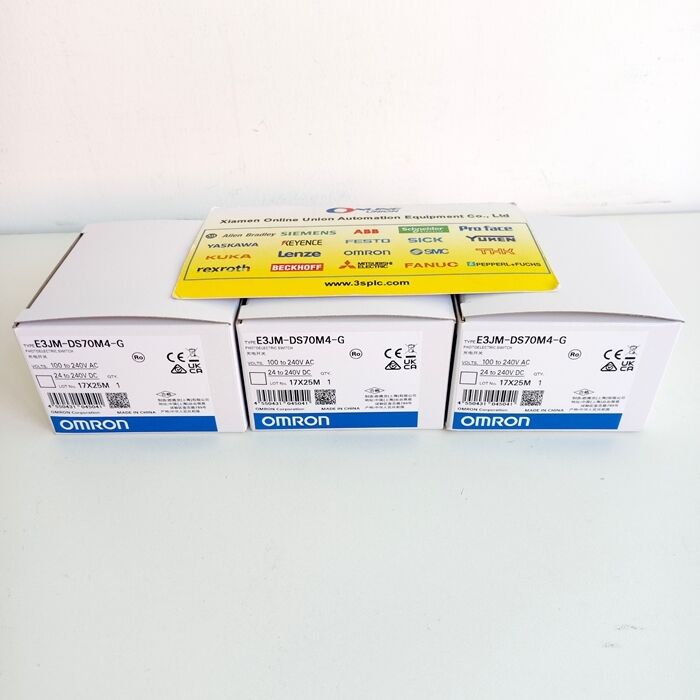

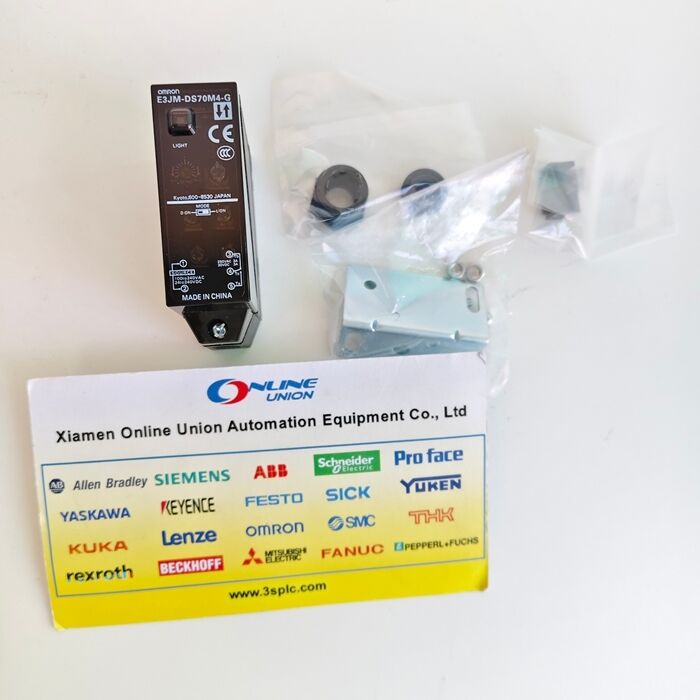

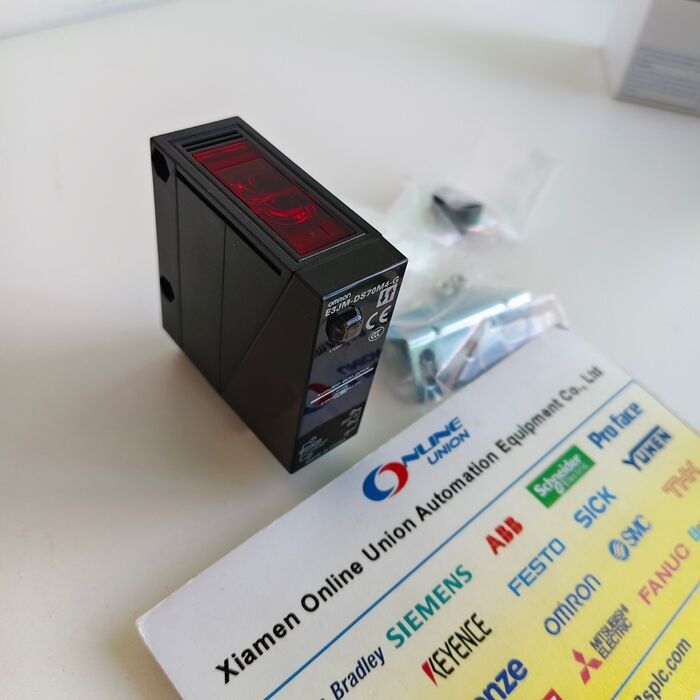

OMRON E3JM-DS70M4-G Photoelectric Sensor

The OMRON E3JM-DS70M4-G is a diffuse reflective photoelectric sensor engineered for long-distance object detection up to 700 mm without requiring a separate reflector. Utilizing infrared light technology, this sensor detects objects based on reflected light intensity, making it ideal for industrial automation, packaging systems, material handling, and assembly line applications.

This robust sensor features an ABS housing with IP66 protection rating, providing excellent resistance to dust and water jets. It includes a visible LED indicator for straightforward status monitoring and employs 5-terminal screw connections for reliable wiring. The relay output (SPDT) enables direct control of high-power loads up to 3A @ 250V AC/DC.

Technical Specifications

Model	E3JM-DS70M4-G
Manufacturer	OMRON Automation and Safety
Detection Method	Diffuse reflection
Detection Distance	700 mm (standard detection object: white A4 paper)
Light Source	Infrared LED
Output Configuration	Relay output (SPDT)
Electrical Connection	5-terminal screw terminal block
Power Supply Voltage	Minimum: 12 V DC, 24 V AC Maximum: 240 V AC/DC
Operating Temperature Range	-25°C to +55°C
Storage Temperature Range	-30°C to +70°C (non-condensing)
Operating Humidity Range	45% to 85% RH (non-condensing)
Response Time	30 ms (typical)
IP Rating	IP66 (dust-tight and protected against water jets)
Housing Material	ABS

Our Services

All products are new, original, and of premium quality
Highly competitive pricing structure
Extensive inventory with availability for hard-to-find components
All inquiries receive prompt attention with 24-hour response guarantee
