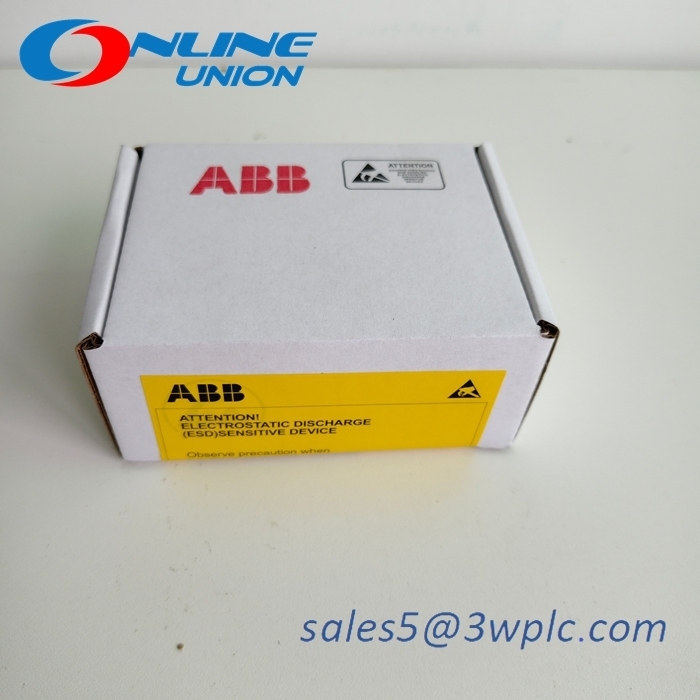

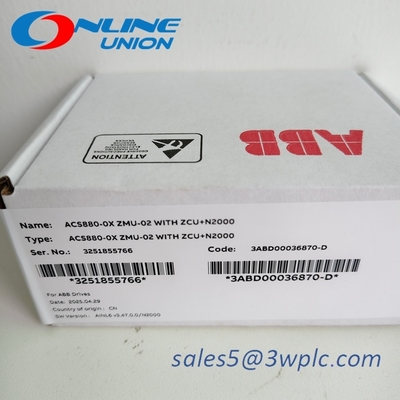

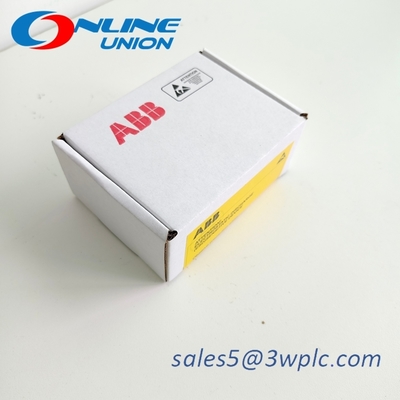

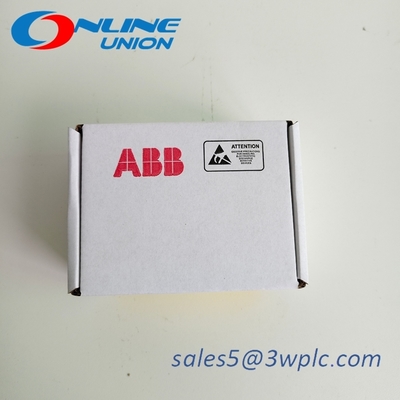

ABB 3ABD00036870-D Industrial Contactor / Relay Module
Product Description
The 3ABD00036870-D is an industrial-grade electrical control component designed for motor control, automation systems, and load switching applications.
It may function as a main contact module for high-current loads (e.g., motors, heaters) or as an auxiliary contact module for signal expansion in control circuits.
Complies with international standards (e.g., IEC 60947-4-1) and is suitable for harsh industrial environments (e.g., high-temperature, vibration-prone settings).
Technical Specifications
| Parameter |
Details |
| Rated Operational Voltage (Ue) |
220V AC / 240V AC or 24V DC (D likely indicates DC coil voltage) |
| Rated Current (Ie) |
40A – 63A (typical range for main contacts) |
| Contact Configuration |
3-pole main contacts (3NO, Normally Open) or auxiliary contacts (2NO + 2NC) |
| Coil Power Consumption |
7.5VA – 15VA (AC coil) or 5W – 10W (DC coil) |
| Mechanical Life |
≥10 million operations (no-load) |
| Electrical Life |
≥1 million operations (at rated load) |
| Mounting Type |
DIN rail or screw-fixed installation |
| Protection Class |
IP20 (body), IP54 (with protective cover) |
| Operating Temperature |
-25°C to +70°C |
| Certifications |
CE, UL, CSA, IEC 60947-4-1 |
Key Features
Silver-alloy contacts for arc resistance; built-in magnetic arc suppression.
Pickup time <15ms, dropout time <10ms (suitable for high-frequency switching).
Compatible with ABB contactors/relays for simplified system integration.
Meets IEC 60204-1 safety standards for personnel protection.
Typical Applications
Industrial Automation Systems
HVAC Systems
Energy Management Systems
Heavy Machinery
Our Services
1,All our products are new and original, and of good quality
2,Our prices are very competitive.3.We have a large quantity in stock, so we could help the customers to get the components which are dificult to getAll inquiries will be valued and wil reply in 24 hours.
5.Fast shipping, and good after-sale service
6We will ship the items within 1-3 working days after the payment is received
7,Good package to protect the products.
