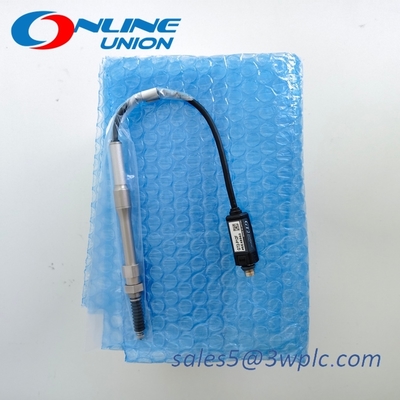

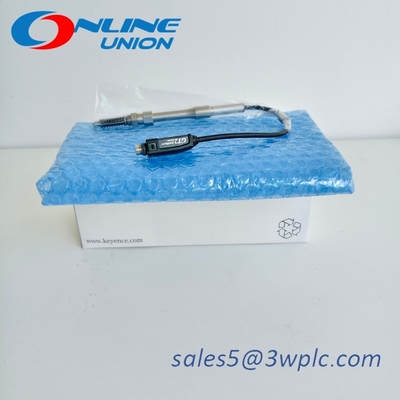

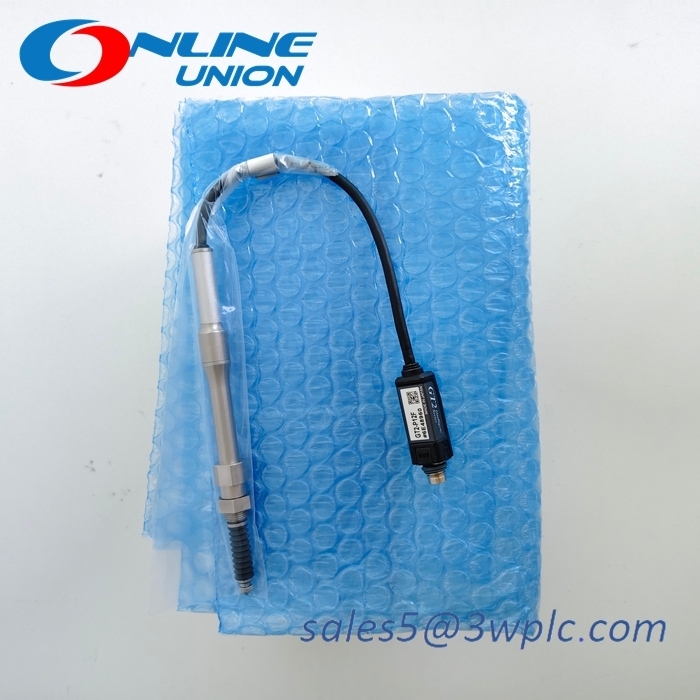

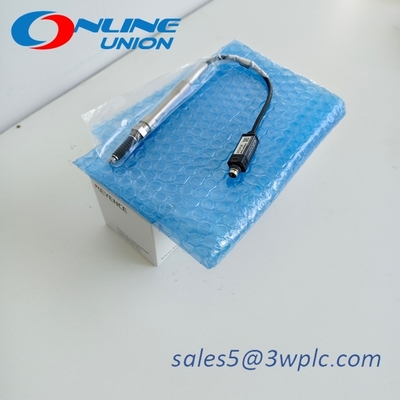

KEYENCE GT2-P12F High-precision, absolute contact digital displacement sensor
Product Description: KEYENCE GT2-P12F
The KEYENCE GT2-P12F is a high-precision, contact-type digital displacement sensor designed for industrial applications requiring accurate dimensional measurement in harsh environments. It employs a scale pulse system II with an absolute type design (no tracking error) to ensure reliable performance. The sensor is ideal for precision tasks such as machine tool control, quality inspection, and deformation monitoring.
Technical Specifications:
1. Core Performance Parameters
|
Parameter
|
Specification
|
|
Model
|
GT2-P12F
|
|
Product Type
|
Contact-type Digital Displacement Sensor
|
|
Measurement System
|
Scale Pulse System II (Absolute Type, No Tracking Error)
|
|
Measurement Range
|
12 mm
|
|
Resolution
|
0.5 µm
|
|
Accuracy
|
±2 µm (p-p) at 20°C
|
|
Measurement Force
|
- Downward: 1.0 N<br>- Lateral: 0.95 N<br>- Upward: 0.9 N
|
|
Sampling Cycle
|
4 ms
|
|
Mechanical Response
|
10 Hz
|
|
Operating Indicators
|
Dual-color LED (Red/Green)
|
2. Environmental Resistance
|
Parameter
|
Specification
|
|
Protection Rating
|
IP67 (IEC), IP67G (JIS), NEMA Type 13
|
|
Operating Temperature
|
-10°C to +55°C (Non-freezing)
|
|
Relative Humidity
|
35% to 85% RH (Non-condensing)
|
|
Vibration Resistance
|
10–55 Hz, Double Amplitude 1.5 mm, 2 Hours per Axis (X/Y/Z)
|
|
Shock Resistance
|
1,000 m/s² (IEC 60068-2-27)
|
3. Mechanical and Material Details
|
Parameter
|
Specification
|
|
Mounting Style
|
Flange Mount (Cylindrical Shape)
|
|
Materials
|
- Housing: SUS303<br>- Indicator: PET<br>- Cable: PUR<br>- Connector: PBT
|
|
Dust Cap Material
|
NBR (Nitrile Butadiene Rubber)
|
|
Contact Components
|
SUS304, SUS440C (Includes Contact Device)
|
|
Weight
|
~45 g (Includes Relay Connector and Cable)
|
4. Connectivity and Compatibility
|
Parameter
|
Specification
|
|
Cable Requirement
|
Separate purchase (e.g., GT2-CHP2M/CHP5M/CHP10M) for connection to relay connector
|
|
Communication Interfaces
|
Compatible with DL Series communication modules (e.g., USB, Ethernet, etc.)
|
Features:
High Precision:
Resolution: 0.5 µm.
Accuracy: ±2 µm (p-p) at 20°C.
Measurement range: 12 mm.
Robust Environmental Resistance:
IP67/IP67G/NEMA Type 13 protection rating for dust, water, and oil resistance.
Operating temperature: -10°C to +55°C (non-freezing).
Vibration resistance: 10–55 Hz, double amplitude 1.5 mm in X/Y/Z directions.
Shock resistance: 1,000 m/s² (IEC 60068-2-27).
Flexible Installation:
Flange-mount design for secure and stable installation.
Available in cylindrical shape for compact integration.
Real-Time Feedback:
Dual-color LED (red/green) for operational status indication.
Sampling cycle: 4 ms for rapid data acquisition.
Mechanical response frequency: 10 Hz.
Durable Construction:
Corrosion-resistant materials: SUS303/SUS304/SUS440C for the housing and contact components.
PUR cable for durability in industrial settings.
Applications:
Industrial Automation:
Machine tool control (e.g., grinding wear monitoring, bearing inspection).
Precision measurement in metalworking (e.g., component inner/outer diameter checks).
Quality Assurance:
Dimensional inspection of smartphone casings, LCD panels, and battery components.
Deformation analysis of frames and stamped parts.
Process Monitoring:
Height control in polishers, roll gap adjustment in rolling mills.
Notes
Installation Guidance:
Ensure proper alignment and secure mounting to avoid measurement errors.
Use the specified cables (e.g., M8 oil-resistant cables) for IP67 compatibility.
Environmental Considerations:
Avoid extreme temperatures or humidity beyond the rated range.
Clean the sensor head regularly to prevent dust/oil buildup.
Calibration:
Verify accuracy periodically, especially in environments with temperature fluctuations.
Our Services:
1.All our products are new and orginal, and of good quality
2.Our prices are very competitive.
3.We have a large quantity in stock, so we could help the customers to get the components which are dificult to get.
4.All inquiries will be valued and will reply in 24.
Packing & Delivery:
1.100% brand New and Original Factory Seal!
2.Warranty:1 year

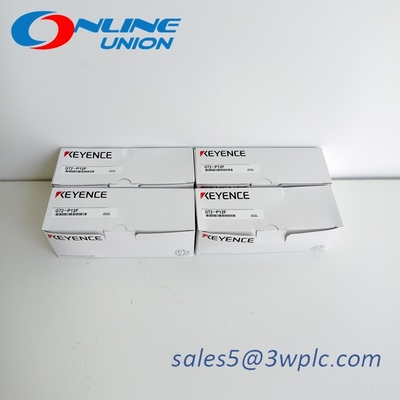

3.Package: Original packing with cartons.
