Name: LR-TB5000CL KEYENCE Detection Distance 5 M, Cable
Brand: Xiamen Online Union Technology Co., Ltd
SKU: LR-TB5000CL
Price: 50.00 USD
Availability: InStock

Home > Products > KEYENCE Parts >

LR-TB5000CL KEYENCE Detection Distance 5 M, Cable

KEYENCE LR-TB5000CL laser sensor

5m detection laser sensor

M12 cable laser sensor

Place of Origin:

Japan

Brand Name:

KEYENCE

Model Number:

LR-TB5000CL

Request A Quote

Product Details

Highlight:

KEYENCE LR-TB5000CL laser sensor

5m detection laser sensor

M12 cable laser sensor

Payment & Shipping Terms

Minimum Order Quantity

Price

1-99$

Packaging Details

Brand New Original

Delivery Time

in stock / 1-3 work days

Payment Terms

T/T

Supply Ability

999

SR-X300W KEYENCE Wide Field Type KEYENCE Parts Barcode Reader Scanner IP67

Get Best Price

SR-UR1 KEYENCE IP65 USB Communication Unit For SR X Series AI Powered Code Reader

Get Best Price

SR-700HA KEYENCE Ultra Compact Fixed Type Code Reader 5VDC Water Resistant

Get Best Price

SR-700 KEYENCE Ultra Compact 1D And 2D Code Reader SR-700 Series

Get Best Price

Contact Now

Product Description

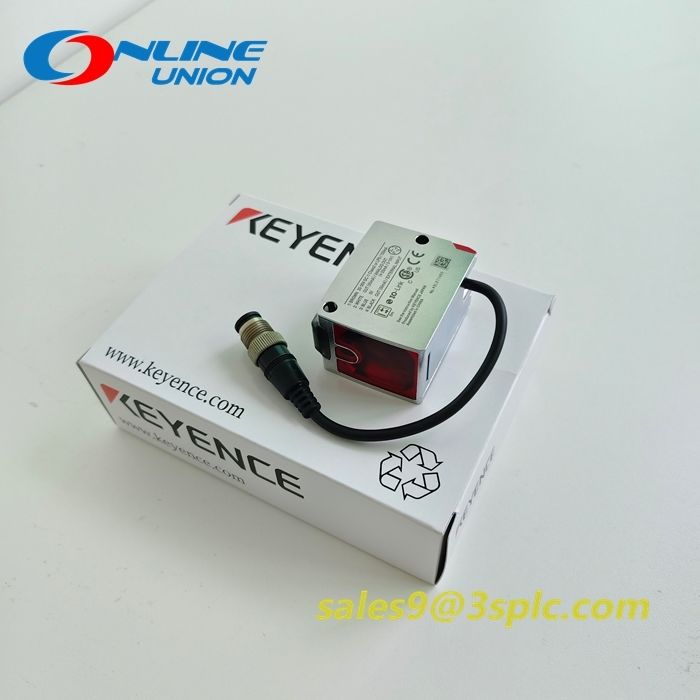

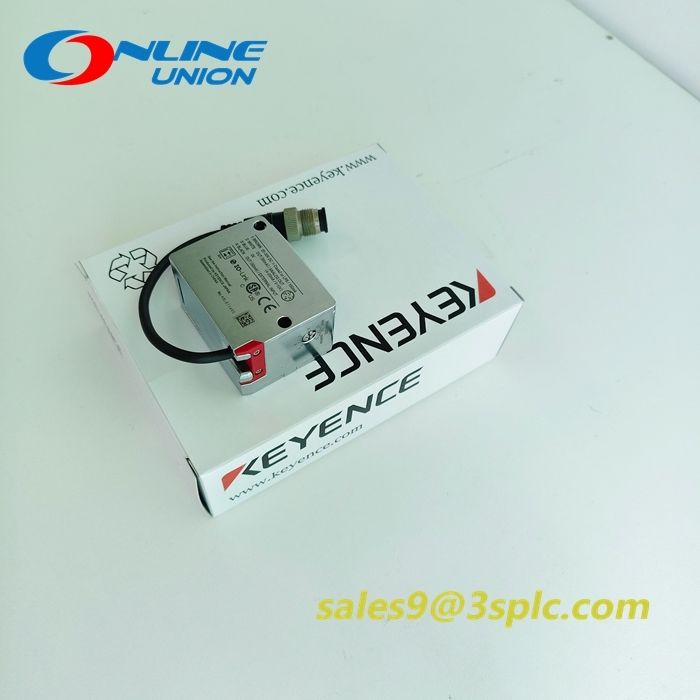

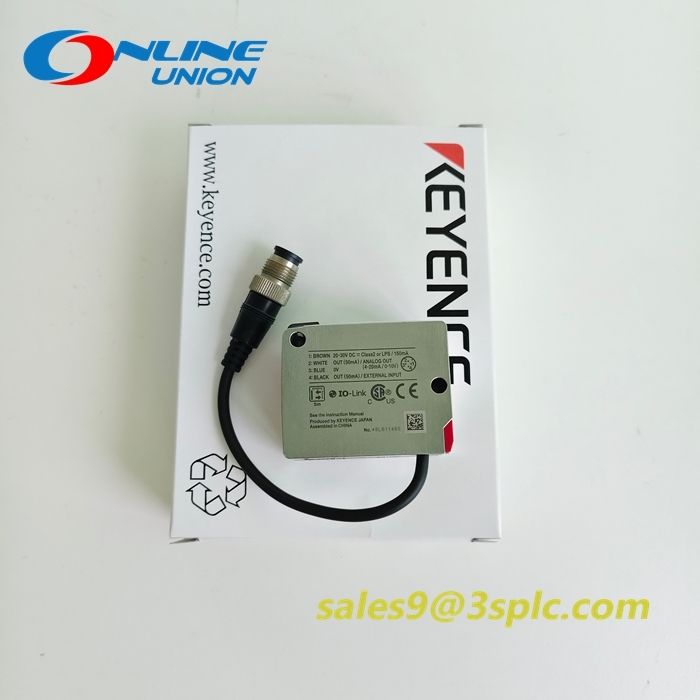

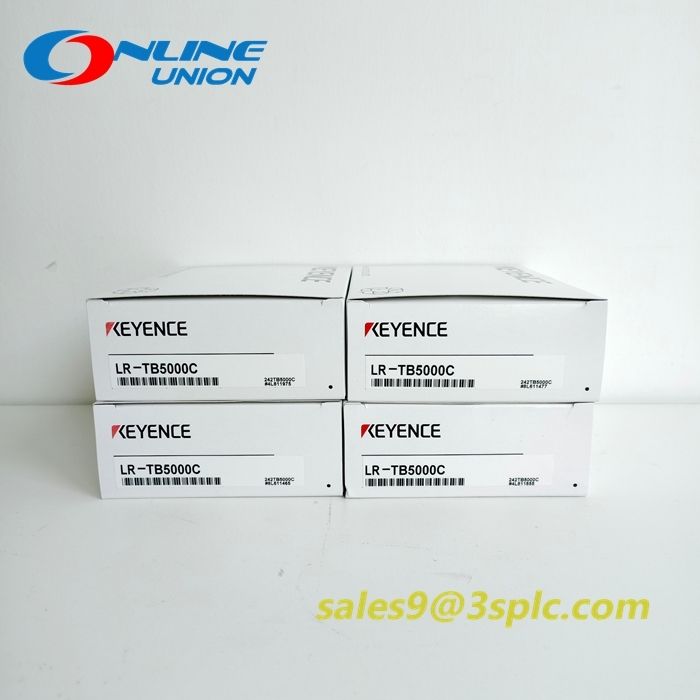

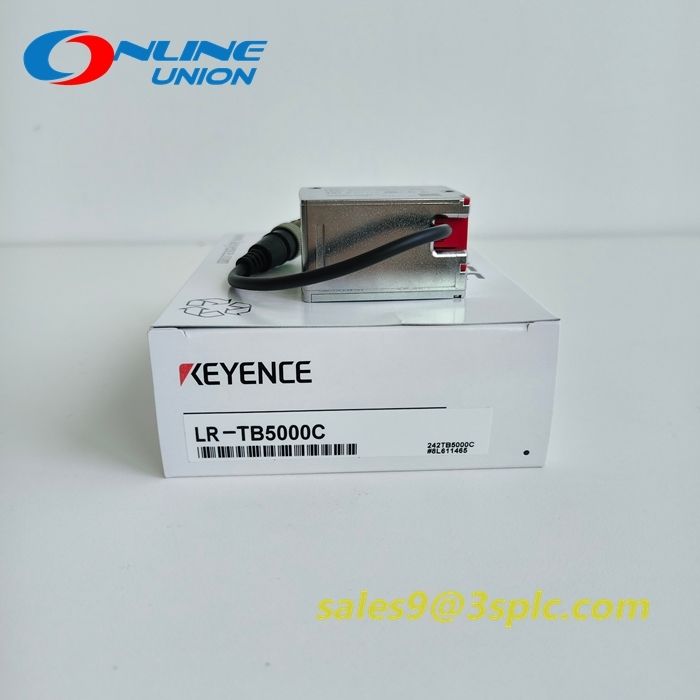

KEYENCE LR-TB5000CL Detection Distance 5 M, Cable

The Keyence LR-TB5000CL is a high-performance digital laser sensor designed for precision detection in industrial automation. Part of the LR-T series, this model integrates a Time-of-Flight (TOF) measurement principle with a red laser light source (660 nm wavelength) to achieve accurate distance sensing.

It supports a wide detection range of 60 mm to 5000 mm, making it suitable for applications requiring long-distance measurement. The sensor features a compact M12 connector-type design with IP65/IP67 environmental protection, ensuring reliability in harsh conditions.

The LR-TB5000CL offers flexible output configurations, including NPN and PNP transistor logic, with a maximum output current of 50 mA. It supports multiple response times (1 ms to 1000 ms) and timer functions (OFF-delay, ON-delay, single-pulse) to adapt to varying operational needs.

Technical Specifications

Product Type	Digital Laser Sensor (TOF)
Detection Principle	Time-of-Flight (TOF)
Detection Range	60 mm to 5000 mm
Light Source	Red laser (660 nm wavelength), Class 1 laser product (IEC60825-1, FDA CDRH Part1040.10)
Spot Diameter	Adjustable (≤ø40 mm)
Response Time	1 ms / 10 ms / 25 ms / 100 ms / 1000 ms (selectable)
Output Type	NPN/PNP transistor open collector, 30 VDC max, 50 mA max
Control Modes	Timer functions (OFF/ON-delay, single-pulse)
Mutual Interference Prevention	Up to 4 units
Power Supply	20-30 VDC (10% ripple), Class 2/LPS compliant
Power Consumption	≤50 mA (excluding load)
Environmental Protection	IP65/IP67 (IEC60529)
Operating Temperature	-20°C to +55°C (non-freezing)
Relative Humidity	35-85% RH (non-condensing)
Vibration Resistance	10-55 Hz, 1.5 mm double amplitude (X/Y/Z directions, 2 hours each)
Shock Resistance	1,000 m/s² (X/Y/Z directions, 6 times each)
Housing Material	Zinc cast (nickel-chromium plated), PES indicators, PMMA lens cover
Cable Type	PVC cable with M12 connector
Communication	IO-Link (Specification v1.1/COM2, 38.4 kbps)
Special Features	OLED display, DATUM mode for reference surface update, power/output protection circuits

Packing & Delivery

100% brand New and Original Factory Seal!
Warranty: 1 year
Package: Original packing with cartons
Delivery time: Shipped in 3-7 days after payment
All the goods will be tested before shipment
