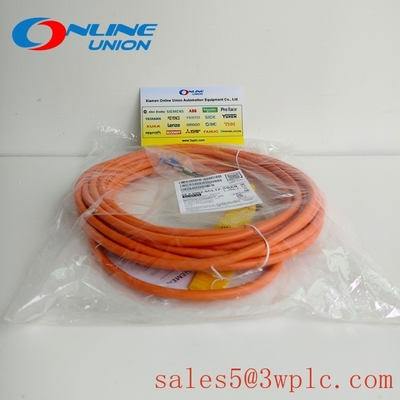

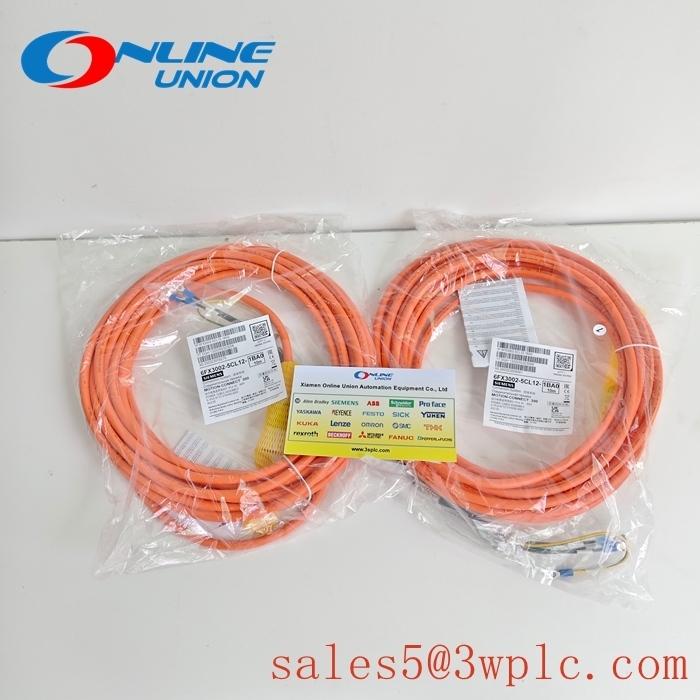

6FX3002-5CL12-1BA0 SIEMENS Motor Power Cable 10m

SIEMENS 6FX3002-5CL12-1BA0 Motor Power Cable 10m

Product Description:

The SIEMENS 6FX3002-5CL12-1BA0 is a high-performance motor cable specifically designed for use with SINUMERIK and SIMODRIVE drive systems. This specialized cable provides reliable power transmission and feedback signal communication between drive units and motors in precision motion control applications. The cable features a robust construction with optimized electrical characteristics that ensure minimal interference and maximum signal integrity in demanding industrial environments.

Engineered with Siemens' proprietary technology, this cable incorporates separate conductors for power supply and encoder feedback within a single cable assembly. The carefully designed shielding configuration provides excellent protection against electromagnetic interference, ensuring accurate signal transmission even in electrically noisy environments. The cable's flexible design allows for continuous movement in dynamic applications while maintaining stable electrical performance. The oil-resistant and wear-resistant outer jacket provides additional protection against common industrial hazards.

This motor cable is particularly suitable for use in machine tools, robotics, and automated manufacturing systems where precise motion control and reliable signal transmission are critical. The cable's construction ensures compatibility with Siemens drive systems, providing optimized performance and reliability. The color-coded conductors and clear markings simplify installation and reduce wiring errors during system commissioning and maintenance.

Technical Specifications:

Electrical Characteristics: The cable is designed for 600V rated voltage and features a maximum operating voltage of 1000V. The capacitance between cores is maximum 150pF/m, ensuring minimal signal distortion. The characteristic impedance is 100Ω ±15% for encoder lines. The insulation resistance is greater than 100MΩ/km at 500V DC. The cable is designed for continuous operation at 90°C with maximum short-term temperature resistance up to 180°C.

Mechanical Specifications: The outer diameter of the cable is approximately 12mm. The minimum bending radius is 80mm for fixed installation and 120mm for flexible applications. The cable's weight is approximately 220kg/km. The tensile strength rating is 100N/mm², providing excellent mechanical durability. The cable is designed for vibration resistance up to 50Hz with amplitude of 1mm and shock resistance up to 100m/s².

Conductor Configuration: The cable features 5 conductors with cross-sectional area of 1.5mm² for power transmission. Additionally, it includes 12 control wires with cross-sectional area of 0.5mm² for encoder and feedback signals. All conductors are made of fine-stranded tinned copper for optimal flexibility and conductivity. The conductors are color-coded according to international standards for easy identification.

Shielding and Protection: The cable features individual foil shielding for each pair of encoder lines plus an overall braided shield with coverage greater than 85%. The shielding effectiveness meets EMI/RFI requirements for industrial environments. The outer jacket is made of special PVC compound that is oil-resistant, acid-resistant, and alkali-resistant. The jacket material meets UL Style 20276 specifications.

Environmental Specifications: The cable is rated for operation in temperature ranges from -5°C to +90°C for fixed installation and -15°C to +90°C for flexible applications. The cable is resistant to UV radiation and does not propagate flame according to IEC 60332-1. The smoke density meets IEC 61034-2 standards. The cable is halogen-free and complies with IEC 60754-2 for low corrosive gas emission.

Certifications and Standards: The cable meets CE requirements and complies with European directives. It is certified according to UL AWM Style 20276. The cable meets VDE 0285 standards and complies with IEC 60228 for conductor requirements. The construction follows Siemens internal specifications for drive system compatibility.

Installation Requirements: The cable is designed for fixed installation in cable trays or conduits. For flexible applications, the cable should be installed with proper strain relief and cable guides. The recommended clamping force for cable fixation is 50-100N. The cable should be protected against sharp edges and excessive mechanical stress during installation.

Compatibility: The cable is specifically designed for use with Siemens SINUMERIK 840D, 828D, and 802D systems. It is compatible with SIMODRIVE 611U and S120 drive systems. The cable is optimized for use with 1FK7 and 1FT6 series servo motors with absolute encoders.

Safety Features: The cable meets category C2 fire performance according to EN 13501-6. The insulation and jacket materials are low-smoke and zero-halogen (LSZH) compliant. The cable is rated for 300V/500V according to IEC 60332-1 for flame retardancy.
