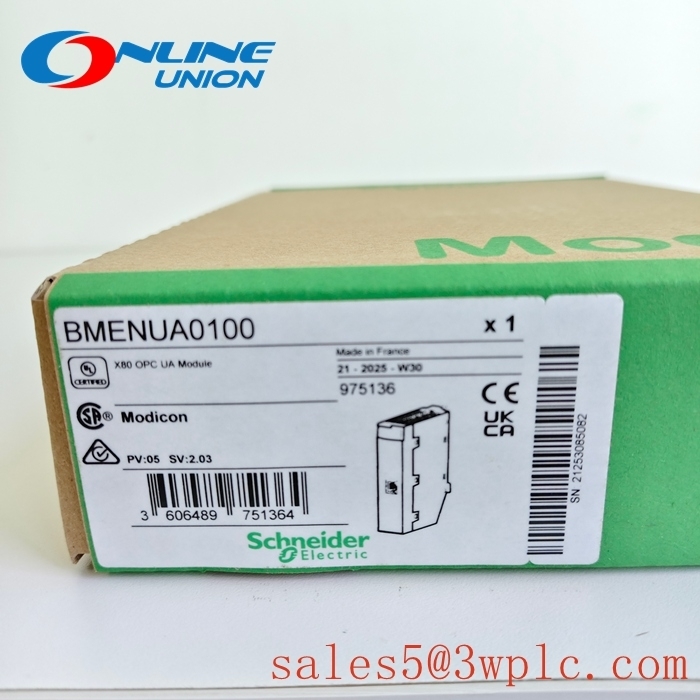

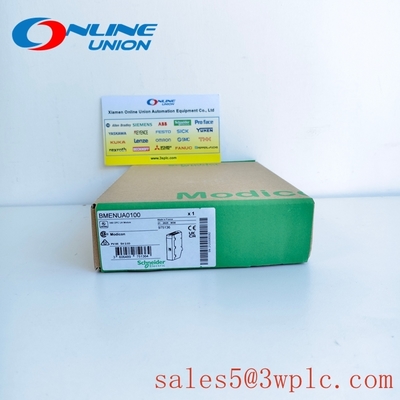

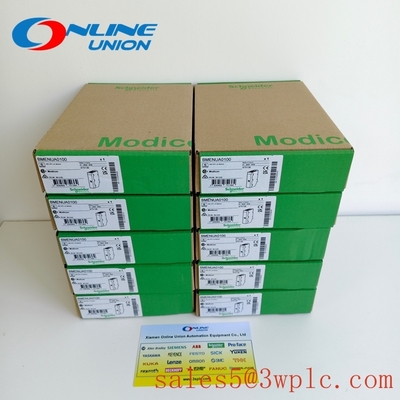

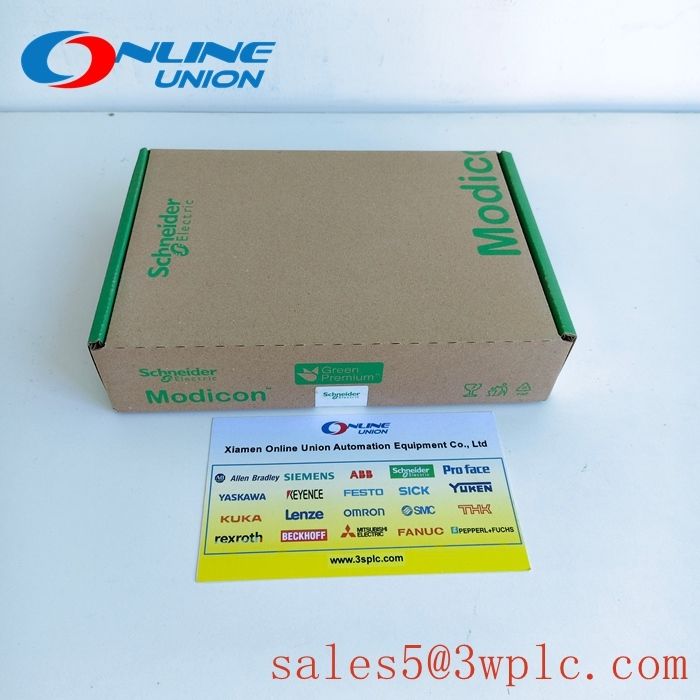

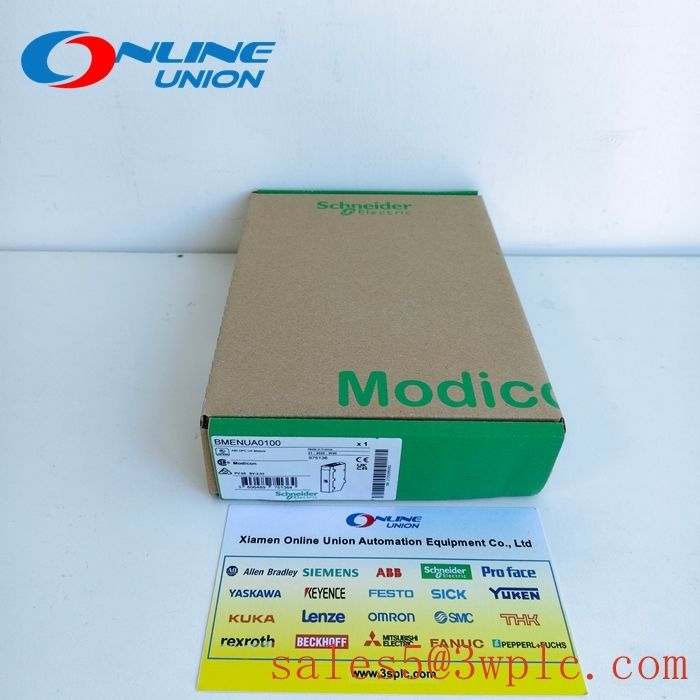

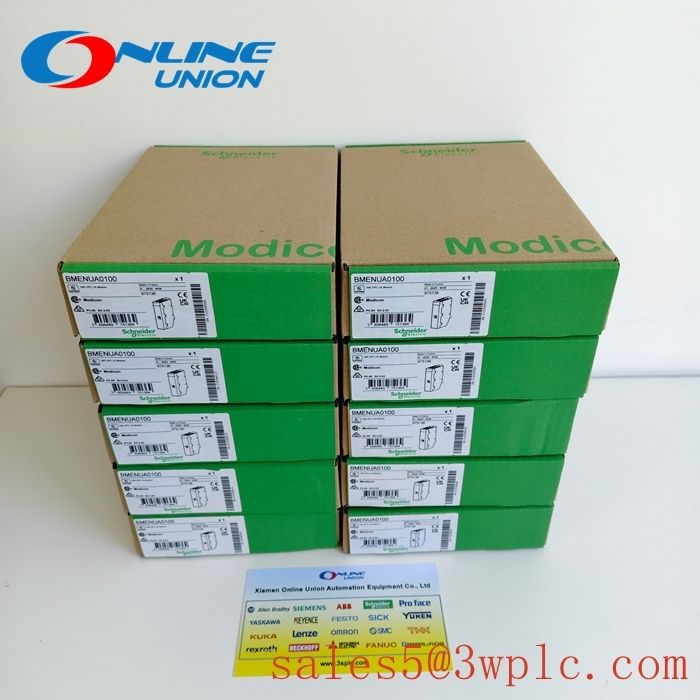

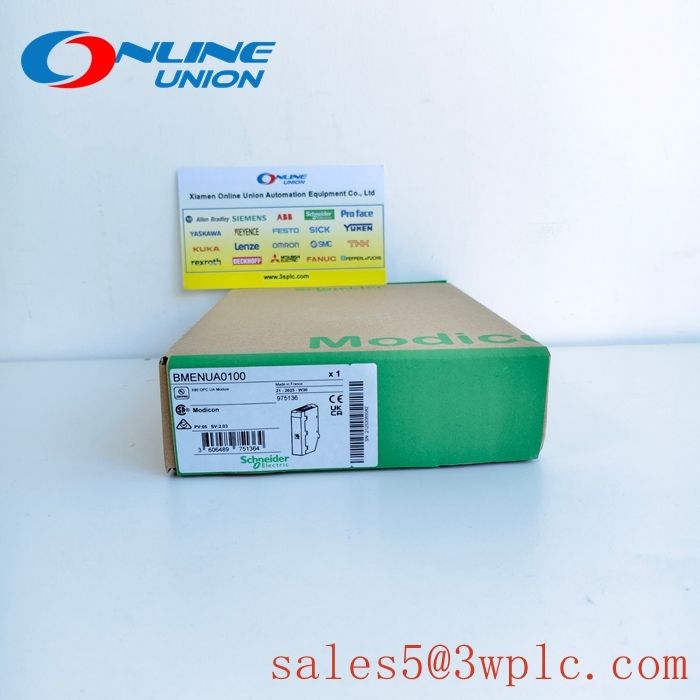

BMENUA0100 SCHNEIDER communication module Modicon M580

SCHNEIDER BMENUA0100 communication module Modicon M580

Product Description

The SCHNEIDER BMENUA0100 is a communication interface module that serves as a fundamental gateway for Schneider Electric's TeSys island digitization solution. This module functions as the essential link between a group of TeSys motor starters, such as contactors and overload relays, and a higher-level control or monitoring system. Its primary role is to aggregate data from connected devices and facilitate seamless communication over standard industrial Ethernet networks.

By integrating the BMENUA0100 into a control panel, users can unlock a new level of operational intelligence. It enables the centralized configuration, real-time monitoring of motor performance (e.g., current, voltage, power, operational status), and management of diagnostics and alarms for all connected devices. This dramatically simplifies wiring by replacing traditional hardwired connections with a single Ethernet cable, leading to significant savings in installation time, cabinet space, and maintenance efforts. It is a cornerstone component for building modern, IIoT-ready industrial automation systems that require data-driven insights and connectivity.

.

Technical Specifications:

The SCHNEIDER BMENUA0100 is a TeSys island gateway module designed to support up to 20 TeDS devices within a single island group. It communicates via a built-in EtherNet/IP interface, allowing for seamless integration into Rockwell Automation and other compatible control architectures. The module is powered by a 24 V DC supply voltage. It features an integrated two-port Ethernet switch, enabling a linear network topology without the need for additional external switches.

For physical connection to the TeSys devices, it uses a specific and proprietary shielded connector, ensuring reliable and noise-resistant data exchange. The module provides comprehensive diagnostic capabilities through LED status indicators for power, network activity, and device status. It is designed for mounting on a standard 35 mm DIN rail within a control panel. The BMENUA0100 operates in ambient temperatures ranging from -25 °C to +55 °C and is rated for Pollution Degree 3 and Overvoltage Category III environments, ensuring robustness for industrial applications.
