Product Description

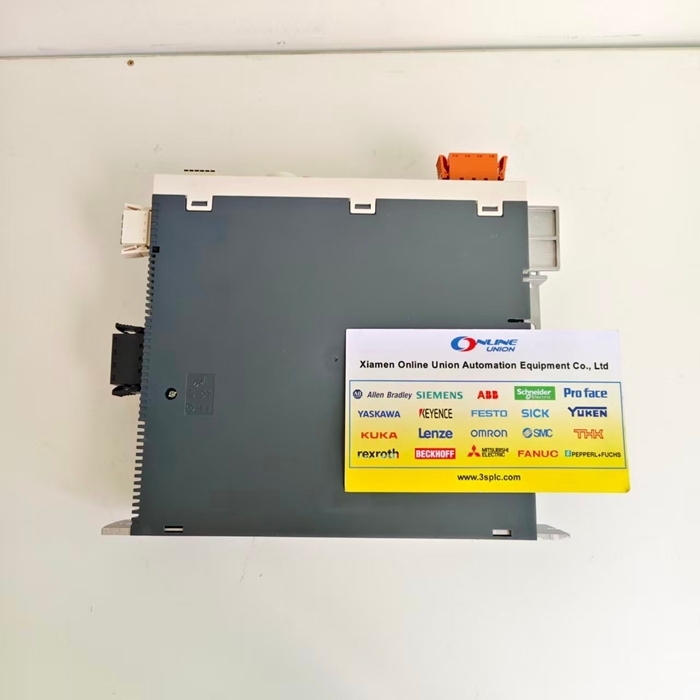

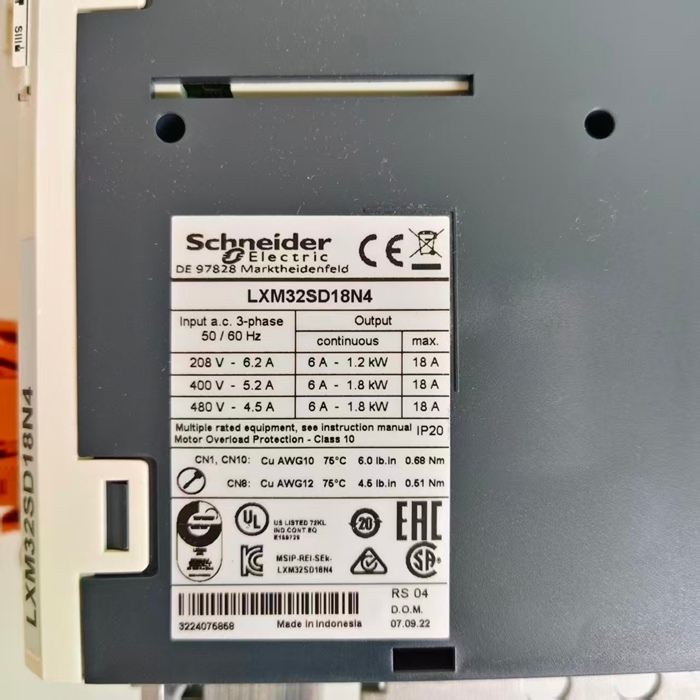

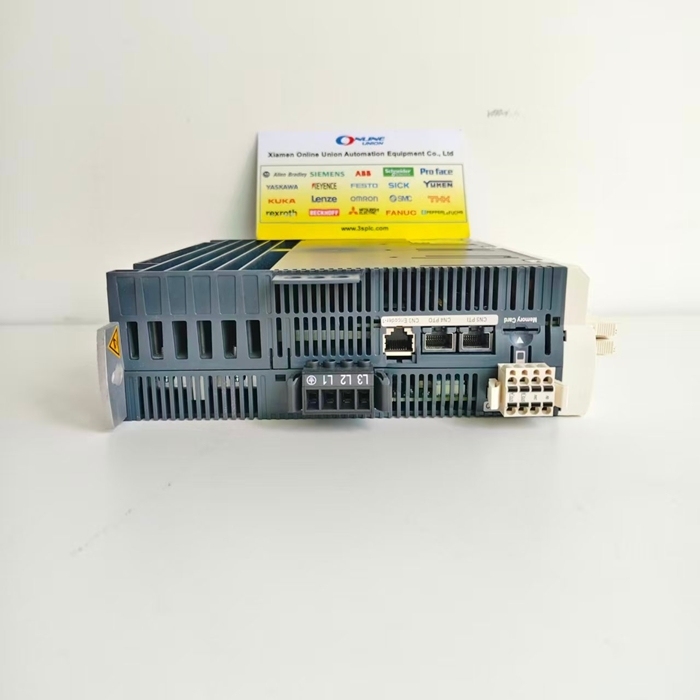

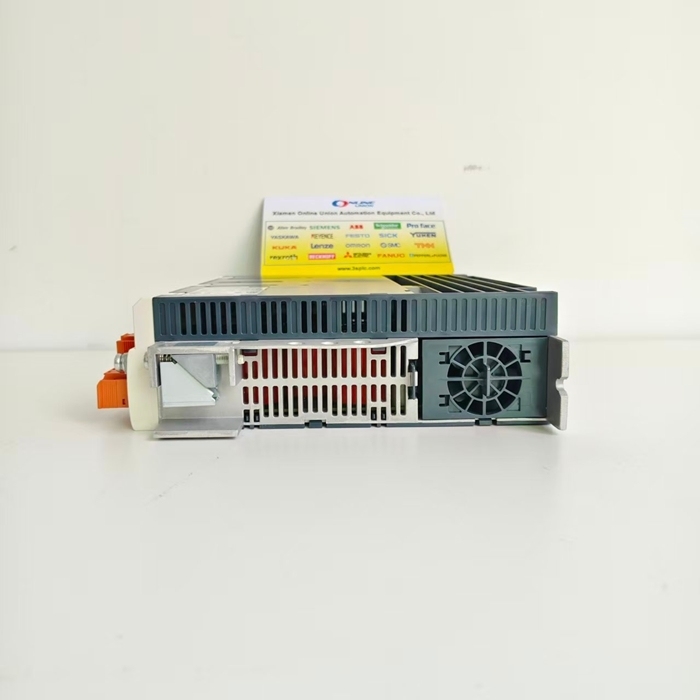

LXM32SD18N4 Schneider Motion Servo Drive, Lexium 32, 6A, Three Phase

The LXM32SD18N4 is a three-phase motion servo drive from Schneider Electric's Lexium 32 series, designed for high-precision industrial automation applications. It operates with a rated power of 0.7 kW (at 230 V, 8 kHz) and supports a voltage range of 200-240 V (±15%) or 380-480 V (±15%), making it adaptable to global power standards.

The drive features an integrated EMC filter, reducing electromagnetic interference, and supports switching frequencies up to 8 kHz for smooth motor control. Its compact "book-style" design (dimensions: 68 mm × 237 mm × 270 mm) facilitates space-efficient installation in control cabinets.

Technical Specifications

Power & Voltage

Rated power: 0.7 kW (230 V, 8 kHz); 1.2 kW (230 V); 1.8 kW (400 V)
Continuous output current: 3 A (8 kHz); peak current: 12 A (3s)
Voltage limits: 170-264 V (low range); 323-528 V (high range)

Performance

Speed response frequency: 10 Hz (optimized for dynamic applications)
Supports motor speeds up to 8,000 rpm (depending on motor type)

Electrical & Environmental

Supply frequency: 50/60 Hz ±5%; network frequency: 47.5-63 Hz
Operating temperature: 0-50°C; storage temperature: -25-70°C
Humidity tolerance: -20-50% (non-condensing)

Connectivity & Safety

Single-strand IEC cable connection (3 mm²/AWG 12)
Electrical isolation between power and control circuits
Overvoltage category III; leakage current: 30 mA

Certifications & Compliance

Certified with CCC (China Compulsory Certificate) and Green Premium (Schneider's eco-design standard)
Complies with EMC standards (integrated filter reduces external component needs)

Packing & Delivery

100% brand new and original factory seal
Warranty: 1 year

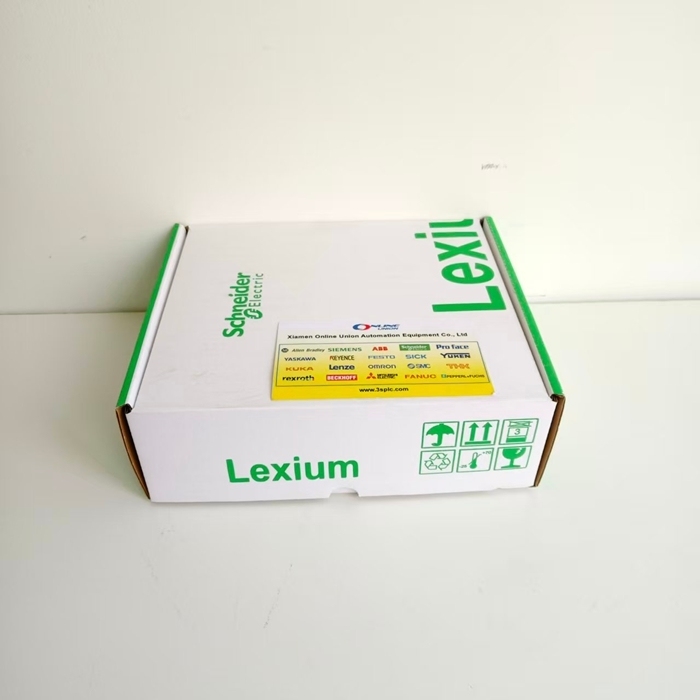

Package: Original packing with cartons
Delivery time: Shipped in 3-7 days after payment
All goods tested before shipment
